Product card

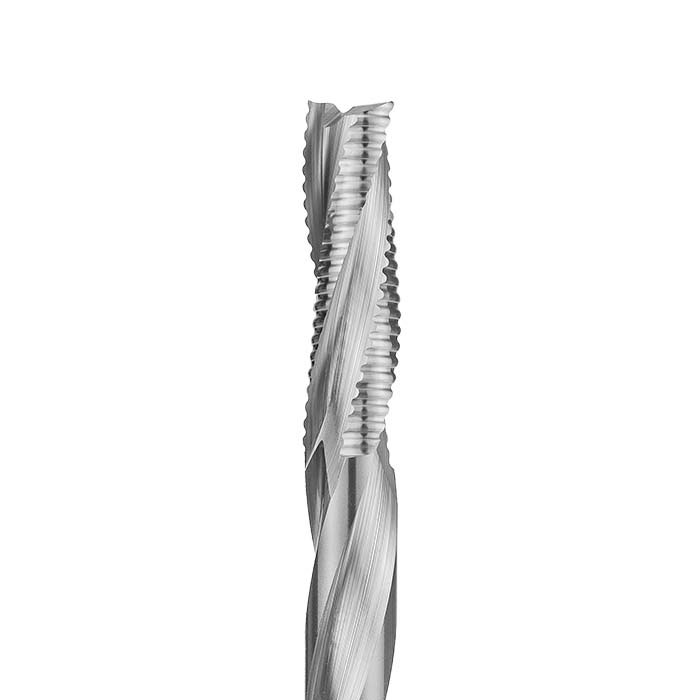

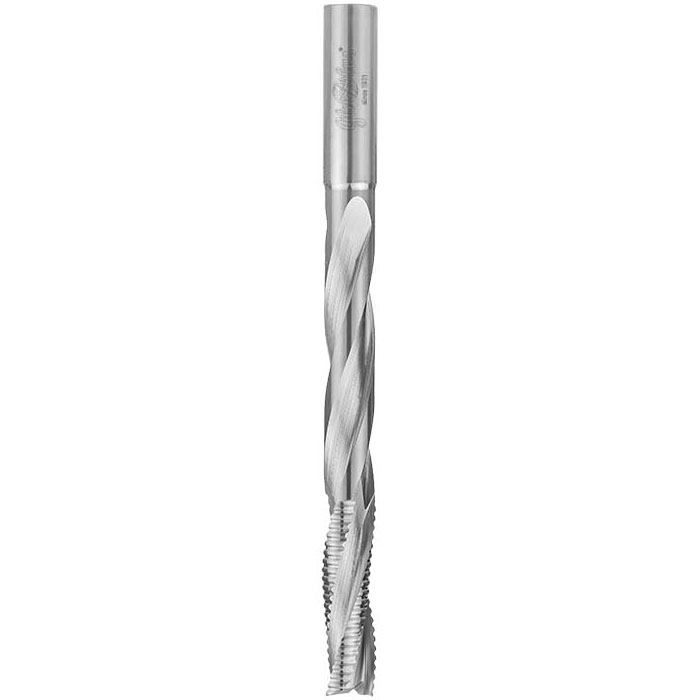

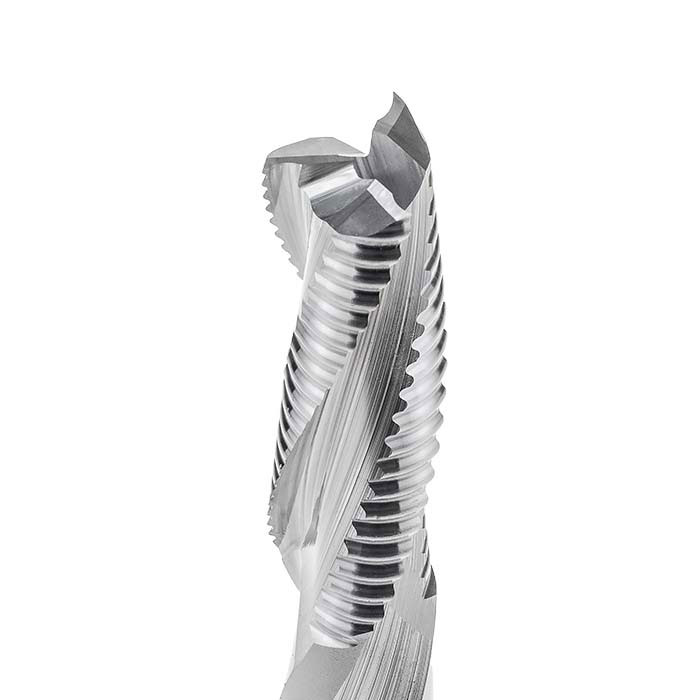

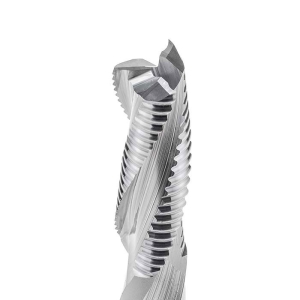

Z3 solid carbide roughing cutters for locks - for machining wood and wood-based materials
LV132
New index
Application

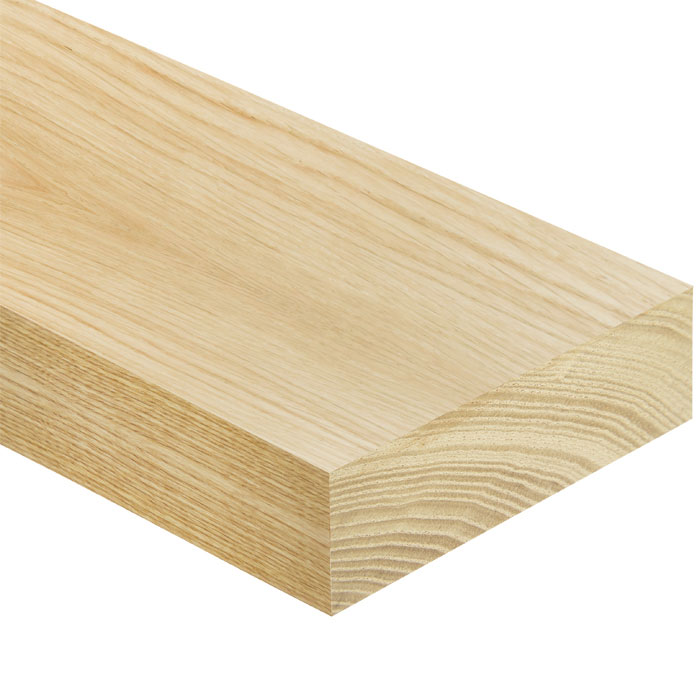

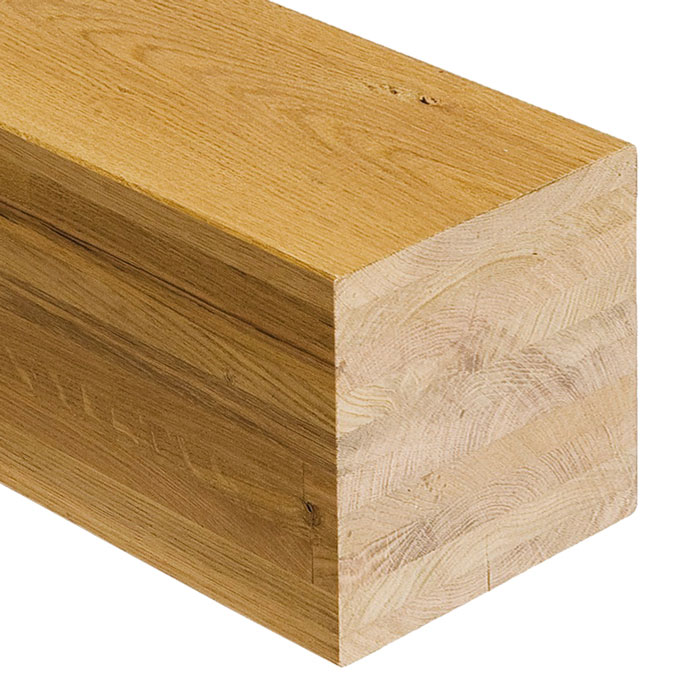

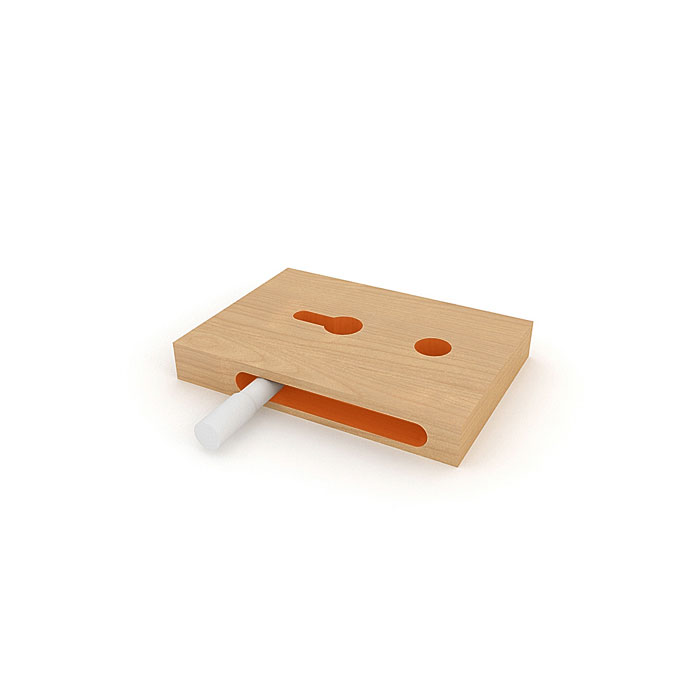

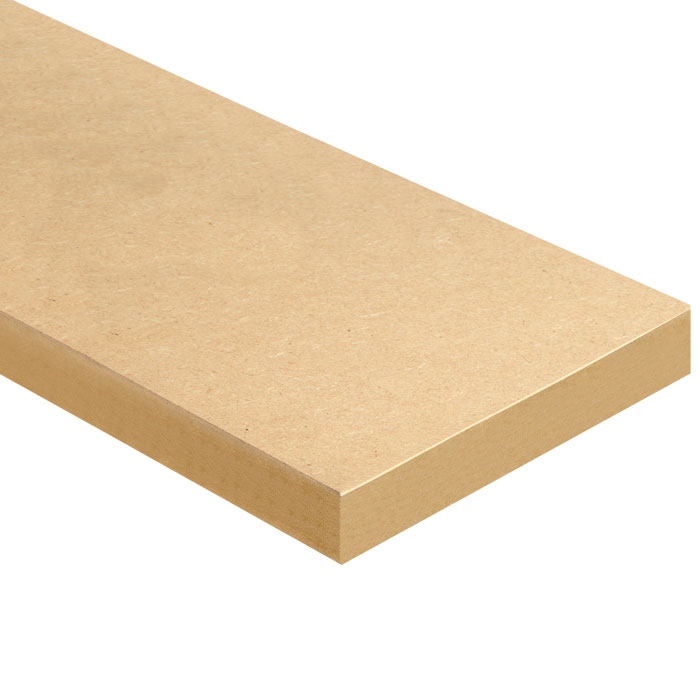

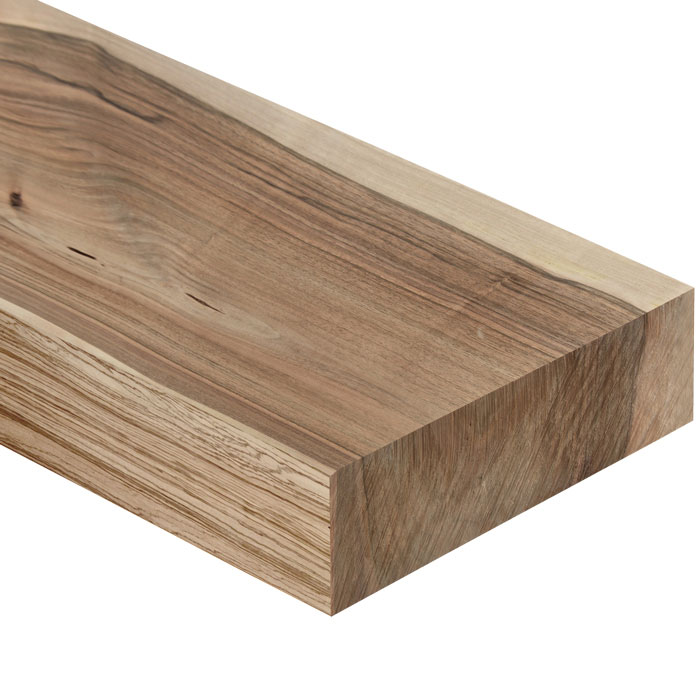

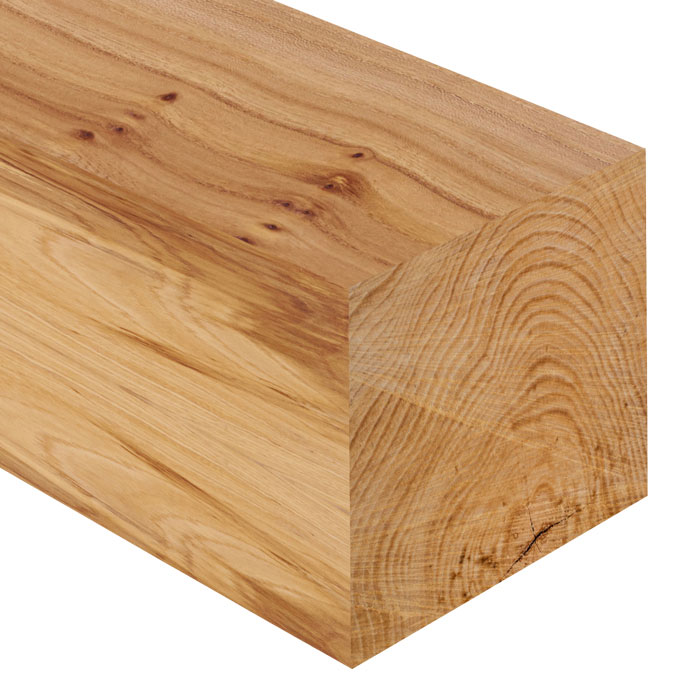

3-flute grooved spiral cutters for milling lock cut-outs in doorsfor cutting and milling in solid wood and wood-based materialsused on high-performance CNC machining centres with mechanical feedoperating parameters in WOOD: 18,000-20,000 RPM, feed rate 4-10 m/minoperating parameters in FURNITURE BOARD: 18,000-20,000 RPM, feed rate 4-10 m/min Features - benefits
solid carbide end mills - body and cutting edge made from cemented carbidecutters available in diameters of 12-20 mm, with varying overall lengths and cutting edge lengthsexcellent surface finish, the cutting edge can be coated with PVD, which significantly increases the tool?s service lifeavailable versions: Right-hand (Positive)
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

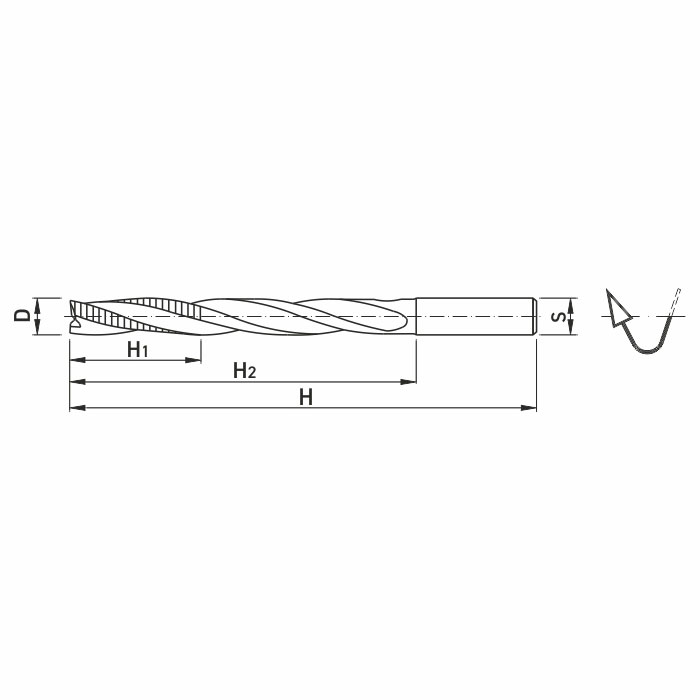

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H2 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 40 | 095 | 150 | 12 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855338981 | |||
| 14 | 40 | 095 | 150 | 14 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855338998 | |||
| 16 | 40 | 095 | 150 | 16 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855339001 | |||
| 16 | 40 | 110 | 170 | 16 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855339872 | |||
| 16 | 40 | 105 | 170 | 16 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855339018 | |||
| - available | 16 | 45 | 110 | 170 | 16 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855339865 | ||
| 20 | 40 | 095 | 150 | 20 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855339025 | |||
| 20 | 40 | 105 | 170 | 20 | 3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855339049 |
Catalogue: - to order
