Product card

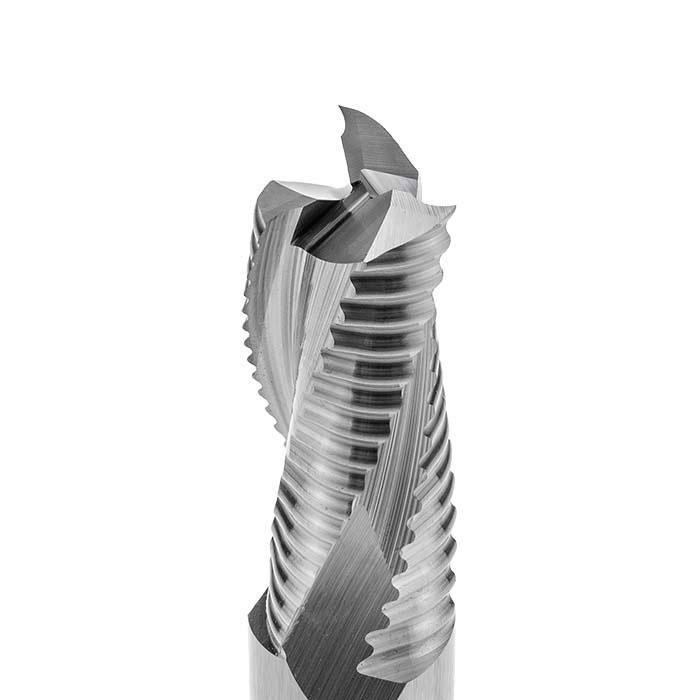

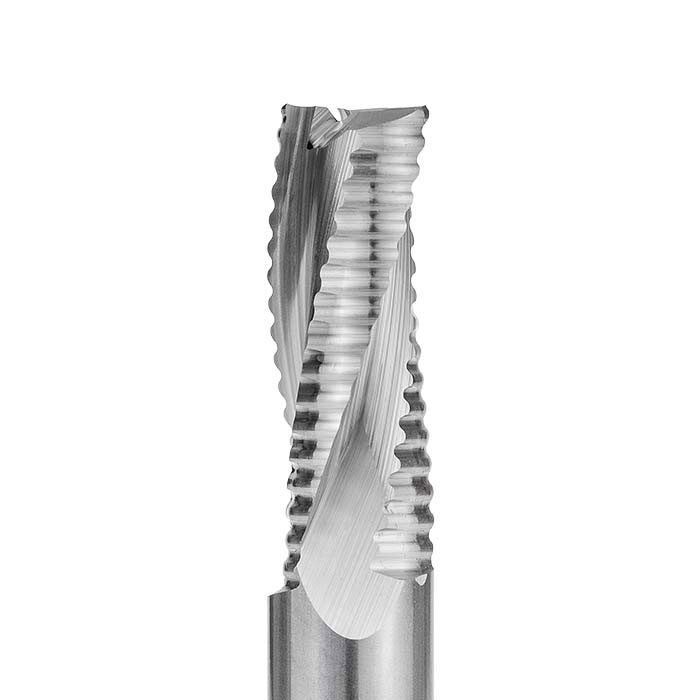

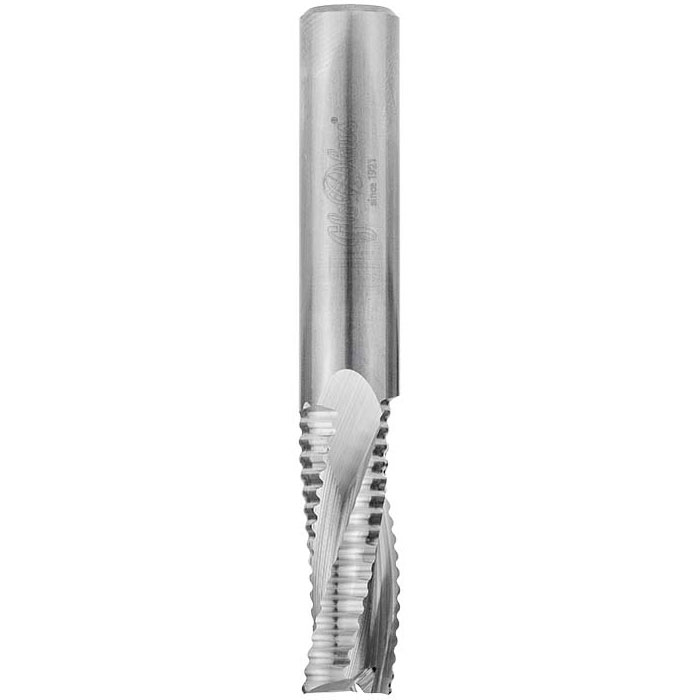

Z3 solid carbide roughing cutters - for machining wood and wood-based materials

LV032
New

Application

3 positive-cut flutes, upward chip ejection, clockwise rotation

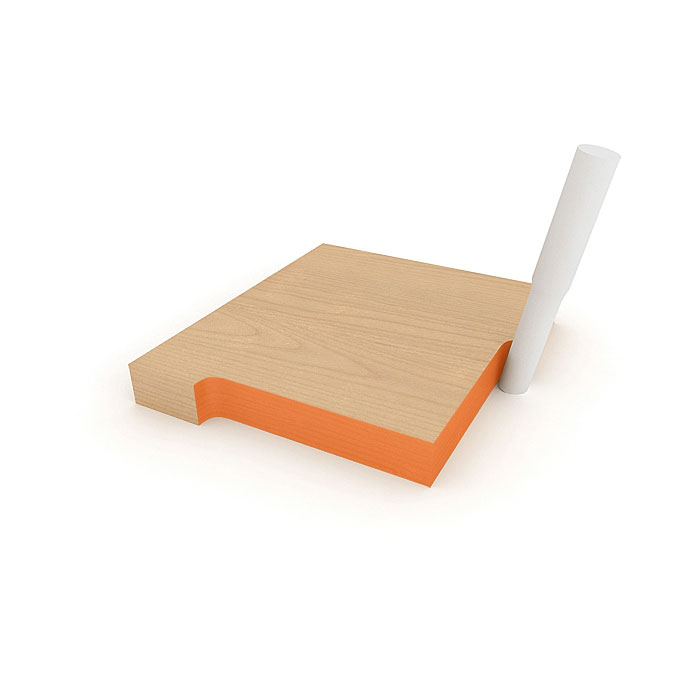

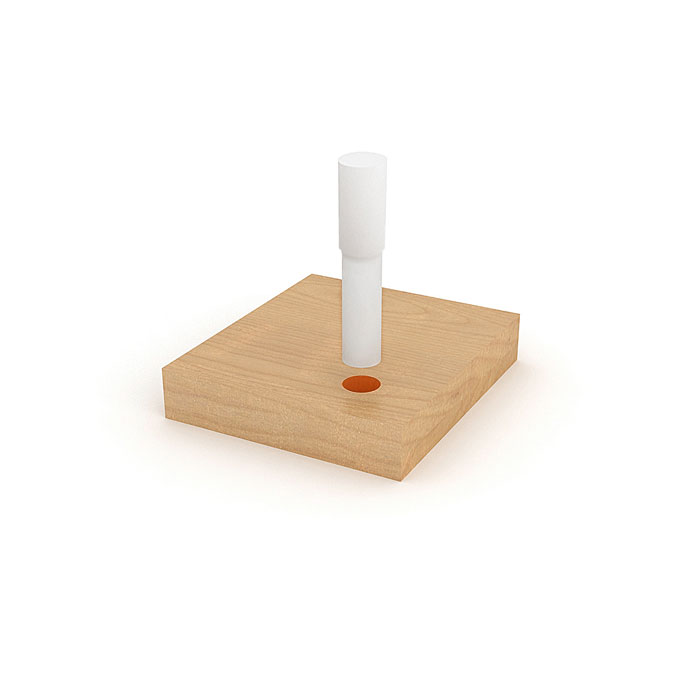

for cutting and milling in solid wood and wood-based materials
used on high-performance CNC machining centres with mechanical feed, small milling plotters and top-spindle milling machines
operating parameters in WOOD: 18,000-24,000 RPM, feed rate 2-16 m/min
operating parameters in FURNITURE BOARD: 18,000-24,000 RPM, feed rate 2-16 m/min

Features - benefits

solid carbide end mills - body and cutting edge made from cemented carbide
end mills available in diameters of 6-25 mm with various overall and effective lengths
excellent surface finish, the cutting edge can be coated with a PVD coating, which significantly increases the tool?s service life
available versions: Right-Positive / Right-Negative / Left-Positive

Product description

Devices

Product card (pdf)

Download

F_FrezyTrzpienioweVHM_PL.pdf
InstrManual_LV_GLOBUS_eng-GB.pdf

Product manager

Rafał Zontek
email: rzontek@wapienica.pl

Delivery terms

Delivery Costs and Methods


The delivery form and cost are determined  individually with customer.

e-mail: eksport@wapienica.pl


Prices do not include the delivery cost (prices quoted EX WORKS).

Details

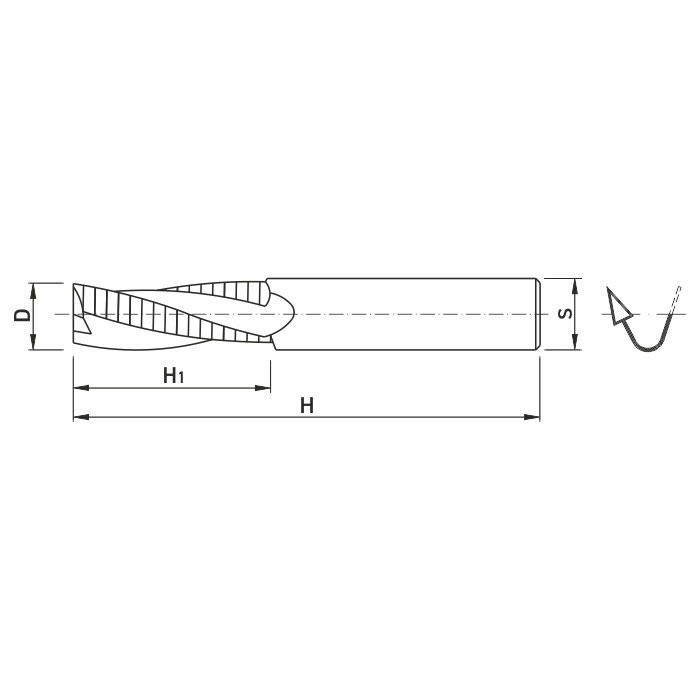

SelectCatalogueIndex∅ D [mm]H1 [mm]H [mm]∅ S [mm]ZRotation direction/Helix typeλ °U.m.EAN
LV032-0622070P0622070063PP-pozytyw/prawe20 stopniszt5900855400053
LV032-0822070P0822070083PP-pozytyw/prawe20 stopniszt5900855400060
LV032-0832080P0832080083PP-pozytyw/prawe20 stopniszt5900855400077
LV032-1032080P1032080103PP-pozytyw/prawe20 stopniszt5900855400084
LV032-1042090P1042090103PP-pozytyw/prawe20 stopniszt5900855400091
- availableLV032-1052100P1052100103PP-pozytyw/prawe20 stopniszt5900855400107
LV032-1232080P1232080123PP-pozytyw/prawe20 stopniszt5900855396691
LV032-1242090P1242090123PP-pozytyw/prawe20 stopniszt5900855400114
- availableLV032-1252100P1252100123PP-pozytyw/prawe20 stopniszt5900855400121
LV032-1642090P1642090163PP-pozytyw/prawe20 stopniszt5900855400138
- availableLV032-1652100P1652100163PP-pozytyw/prawe20 stopniszt5900855400145
LV032-1672120P1672120163PP-pozytyw/prawe20 stopniszt5900855400152
LV032-2052100P2052100203PP-pozytyw/prawe20 stopniszt5900855400169
LV032-2072120P2072120203PP-pozytyw/prawe20 stopniszt5900855400176
LV032-20100150P20100150203PP-pozytyw/prawe20 stopniszt5900855400183
Catalogue:   - to order
