Product card

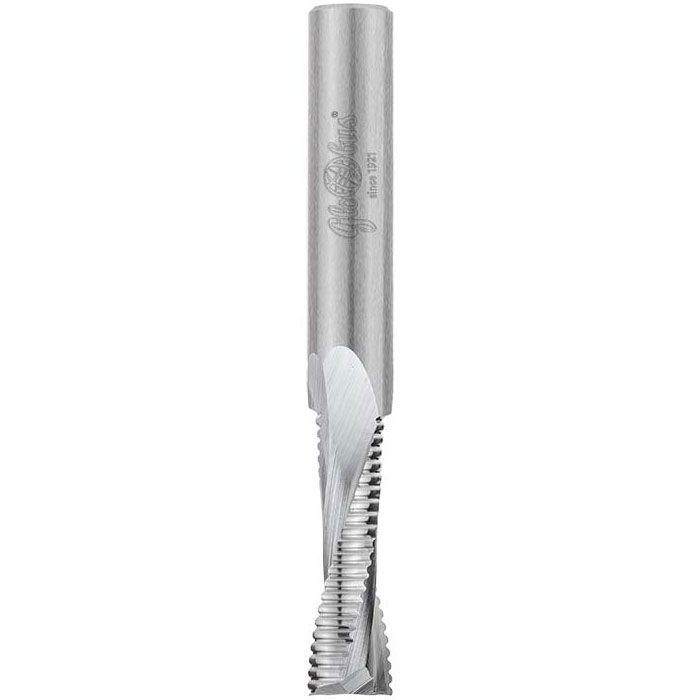

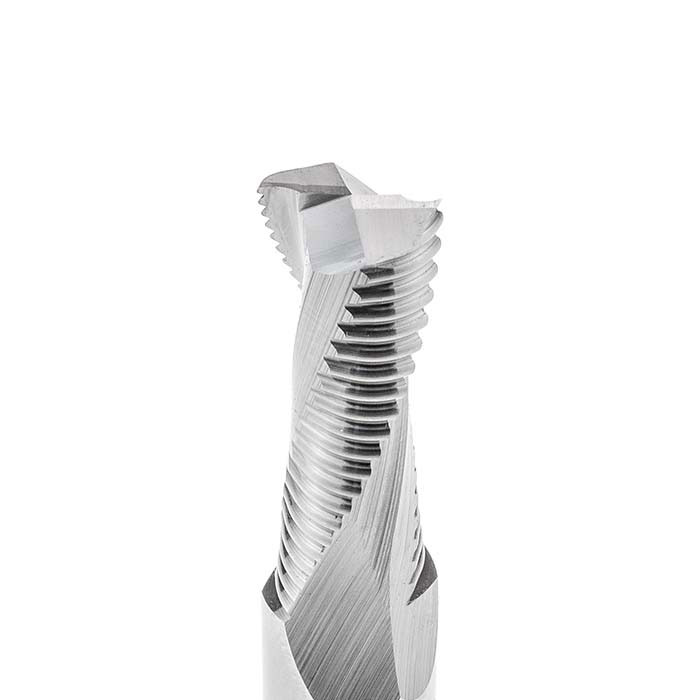

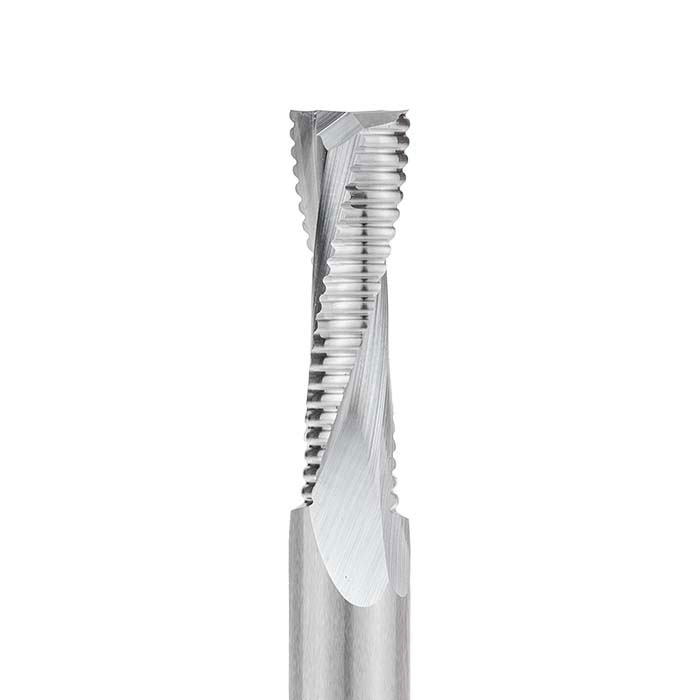

Z2 solid carbide roughing cutters - for machining wood and wood-based materials

LV022
New

Application

2 positive-cut flutes, upward chip ejection, clockwise rotation

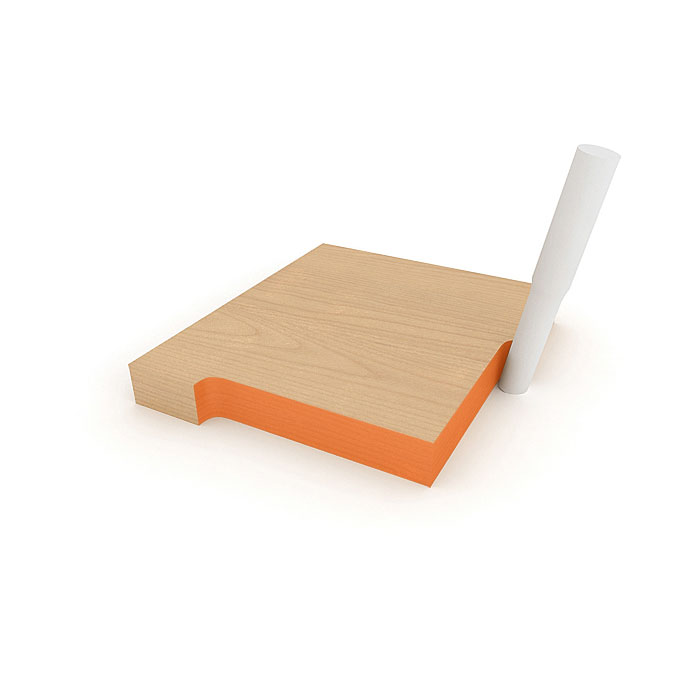

for cutting and milling in solid wood and wood-based materials
used on high-performance CNC machining centres with mechanical feed, small milling plotters and top-spindle milling machines
operating parameters in WOOD: 18,000-24,000 RPM, feed rate 2-10 m/min
operating parameters in FURNITURE BOARD: 18,000-24,000 RPM, feed rate 2-10 m/min

Features - benefits

solid carbide end mills - body and cutting edge made from cemented carbide
end mills available in diameters of 6-20 mm with various overall and effective lengths
excellent surface finish, the cutting edge can be coated with a PVD coating, which significantly increases the tool?s service life
available versions: Right-Positive / Right-Negative / Left-Positive

Product description

Devices

Product card (pdf)

Download

F_FrezyTrzpienioweVHM_PL.pdf
InstrManual_LV_GLOBUS_eng-GB.pdf

Product manager

Rafał Zontek
email: rzontek@wapienica.pl

Delivery terms

Delivery Costs and Methods


The delivery form and cost are determined  individually with customer.

e-mail: eksport@wapienica.pl


Prices do not include the delivery cost (prices quoted EX WORKS).

Details

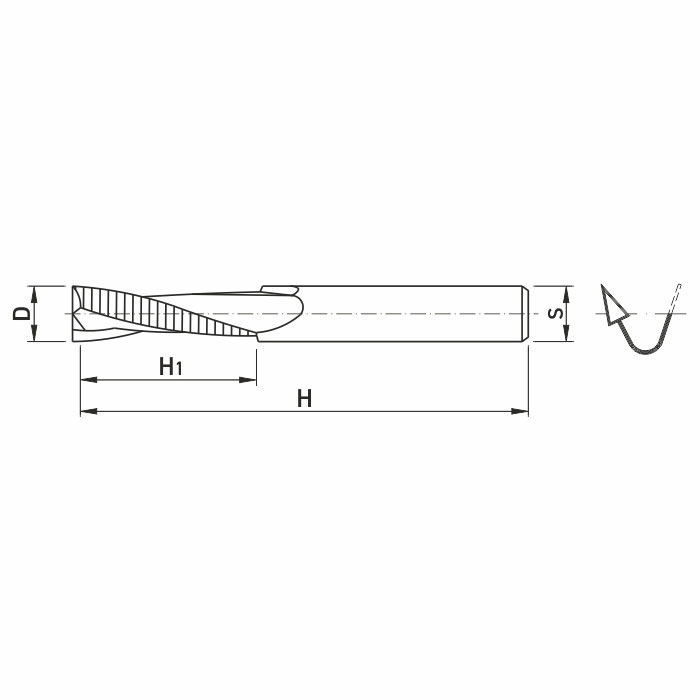

SelectCatalogueIndex∅ D [mm]H1 [mm]H [mm]∅ S [mm]ZRotation direction/Helix typeλ °U.m.EAN
LV022-0622070P0622070062PP-pozytyw/prawe20 stopniszt5900855399654
LV022-0822070P0822070082PP-pozytyw/prawe20 stopniszt5900855399661
LV022-0832080P0832080082PP-pozytyw/prawe20 stopniszt5900855399678
LV022-1032080P1032080102PP-pozytyw/prawe20 stopniszt5900855396639
LV022-1052100P1052100102PP-pozytyw/prawe20 stopniszt5900855399685
LV022-1232080P1232080122PP-pozytyw/prawe20 stopniszt5900855399692
LV022-1242090P1242090122PP-pozytyw/prawe20 stopniszt5900855399708
LV022-1252100P1252100122PP-pozytyw/prawe20 stopniszt5900855399715
LV022-1642090P1642090162PP-pozytyw/prawe20 stopniszt5900855399722
LV022-1652100P1652100162PP-pozytyw/prawe20 stopniszt5900855399739
LV022-1672120P1672120162PP-pozytyw/prawe20 stopniszt5900855399746
LV022-2052100P2052100202PP-pozytyw/prawe20 stopniszt5900855399753
LV022-2082130P2082130202PP-pozytyw/prawe20 stopniszt5900855399760
LV022-20100150P20100150202PP-pozytyw/prawe20 stopniszt5900855399777
Catalogue:   - to order
