Product card

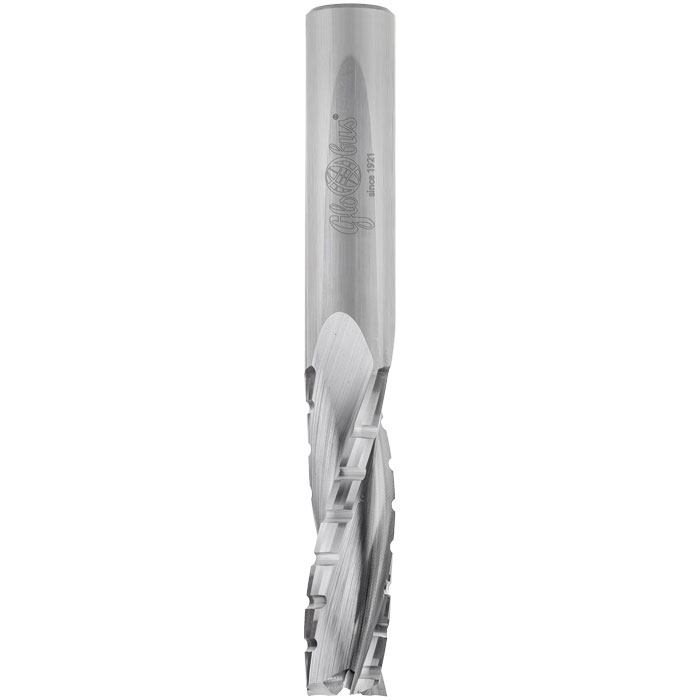

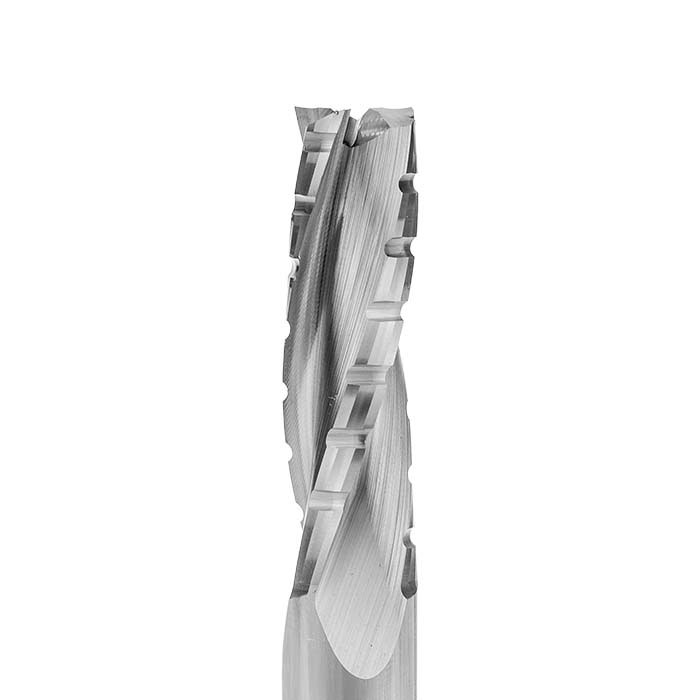

Z3 solid carbide finishing cutters with chip breaker - for machining wood and wood-based materials

LV031
New

Application

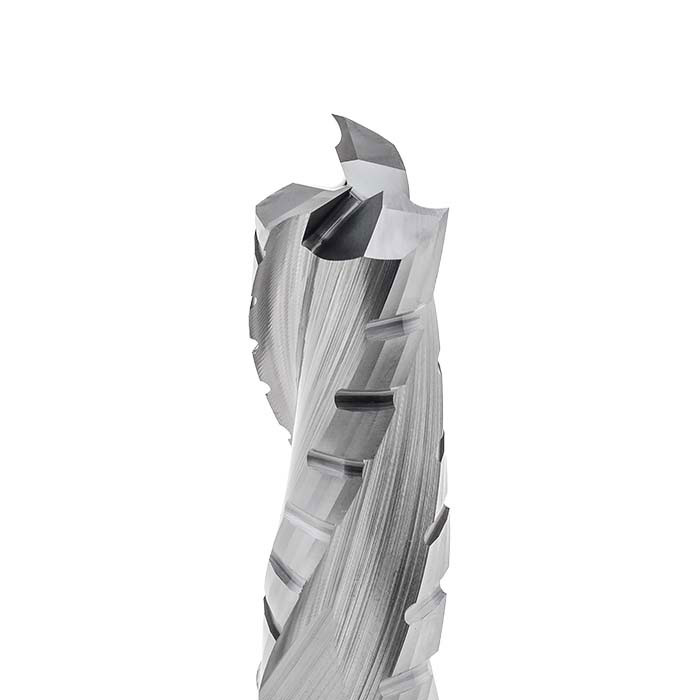

3 cutting edges with positive chipbreaker, upward chip ejection, clockwise rotation

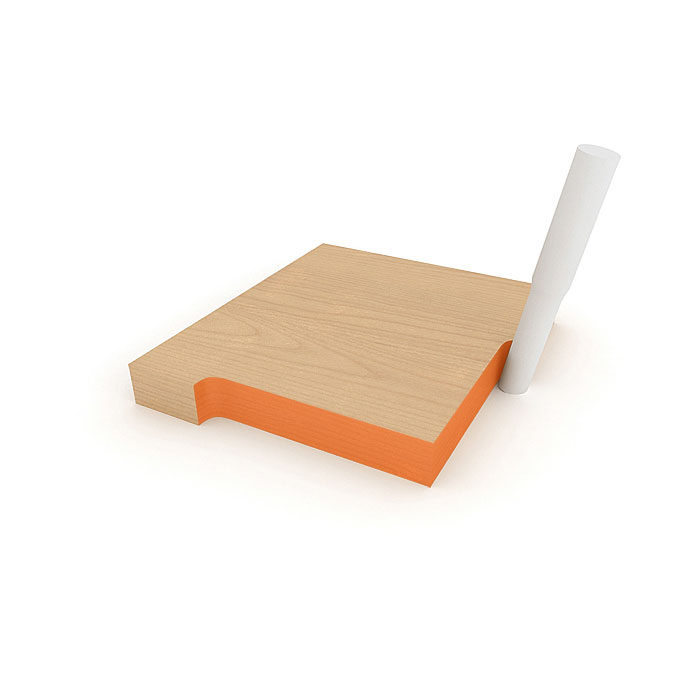

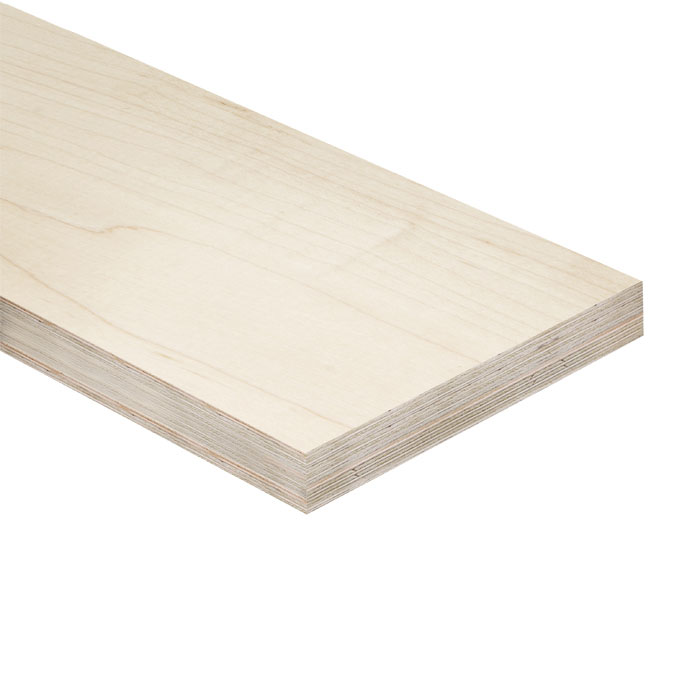

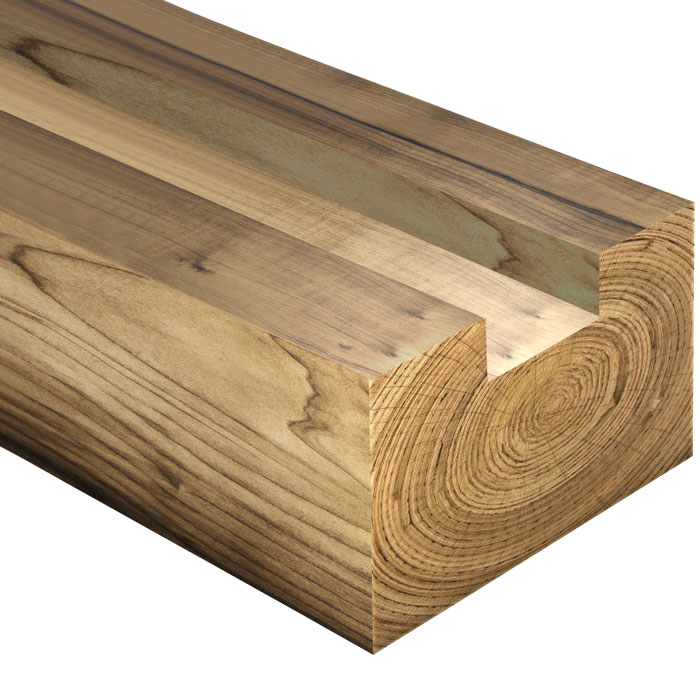

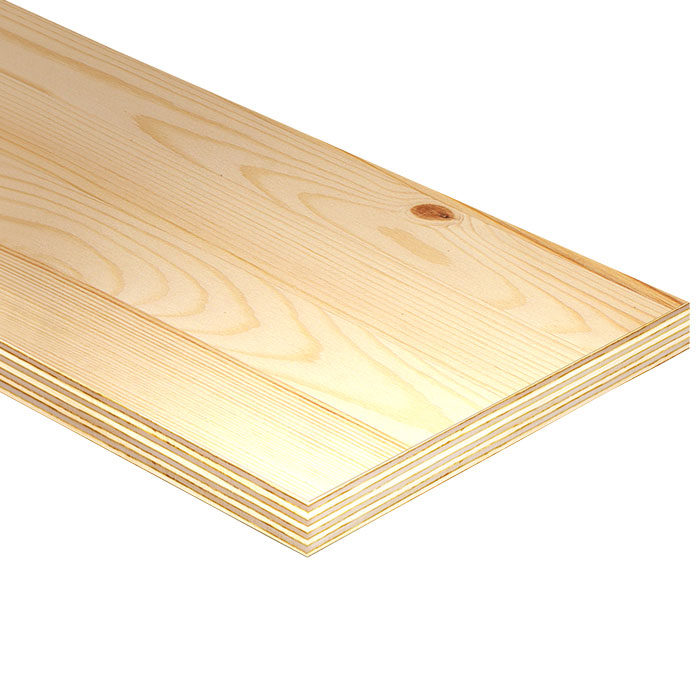

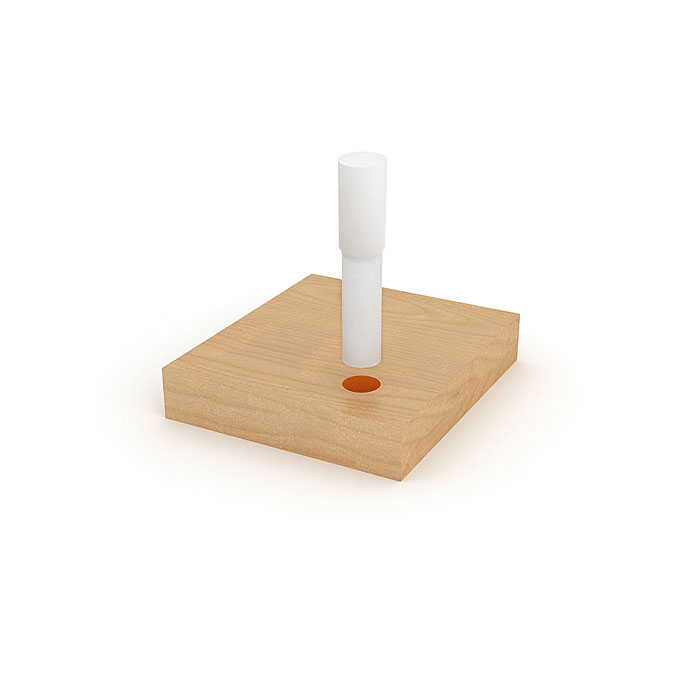

for cutting and milling in solid wood and wood-based materials
used on high-performance CNC machining centres with mechanical feed, small milling plotters and top-spindle milling machines

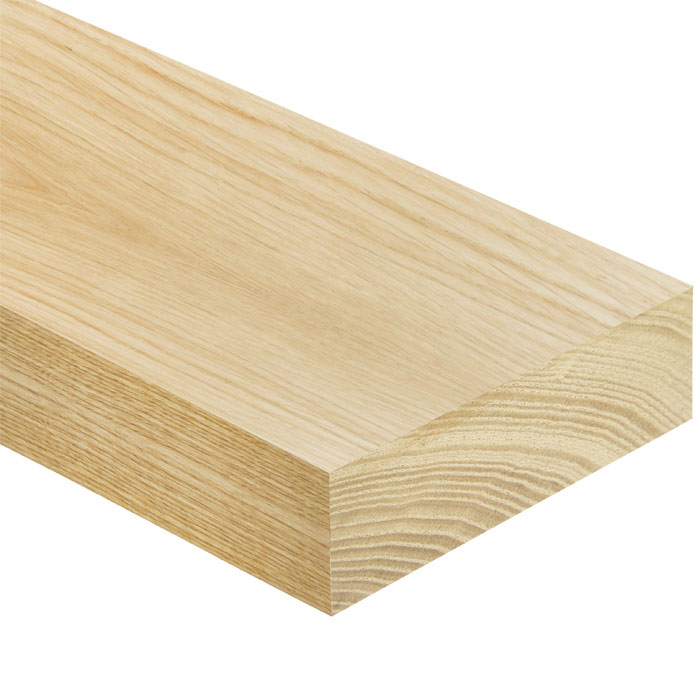

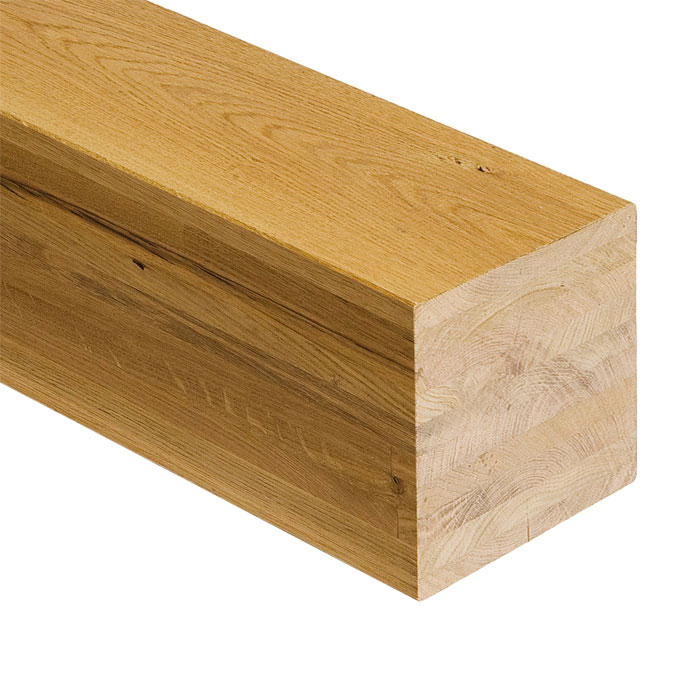

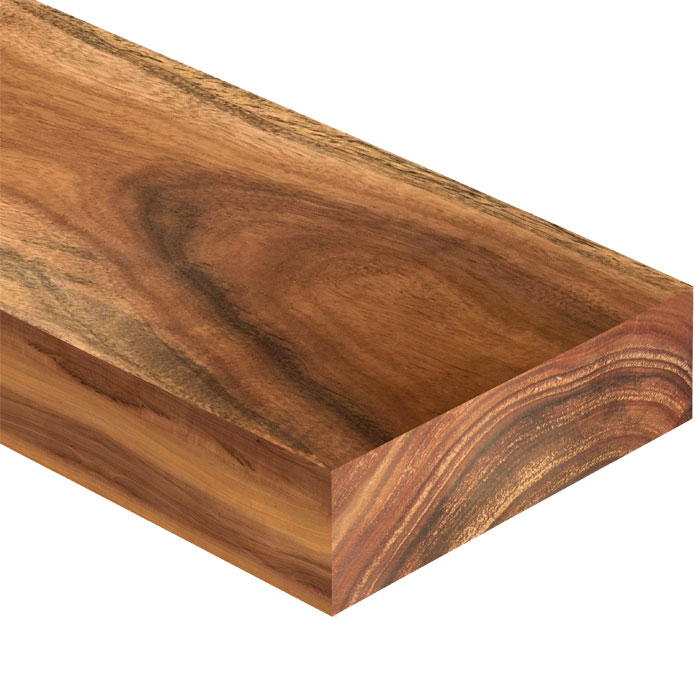

operating parameters in WOOD: 18,000-24,000 RPM, feed rate 2-16 m/min

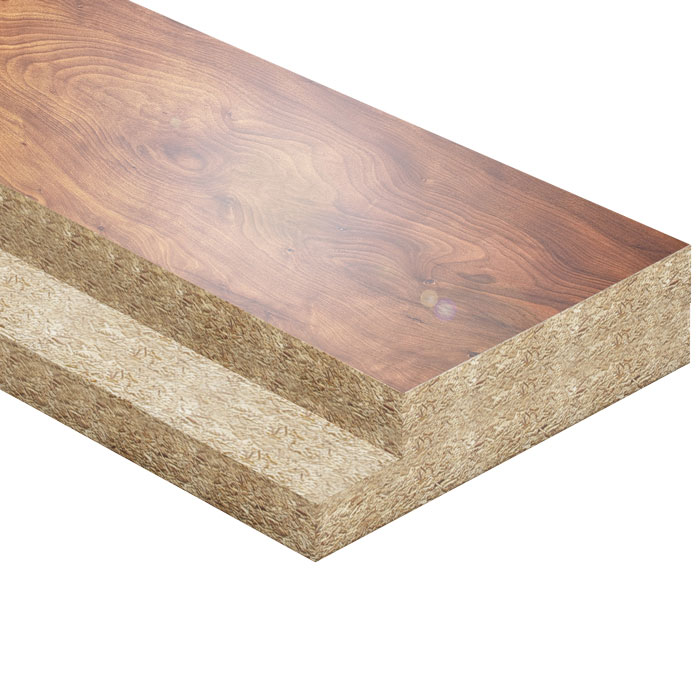

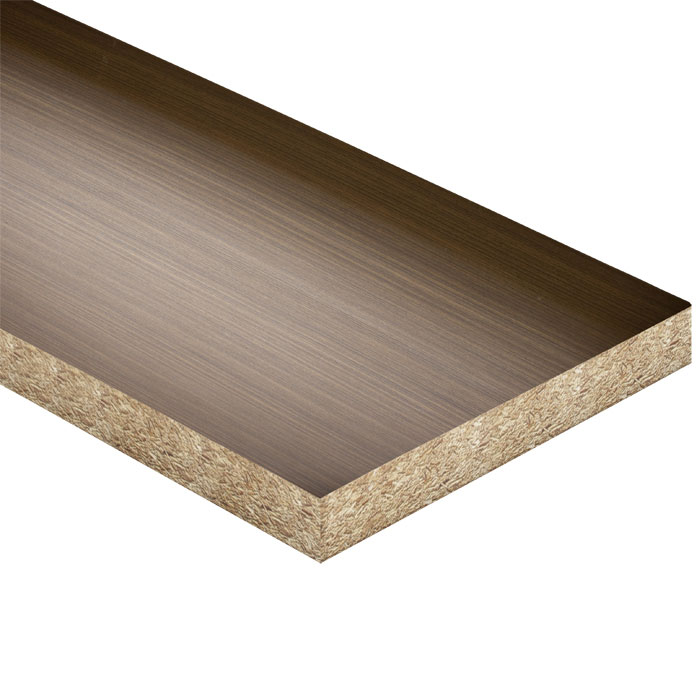

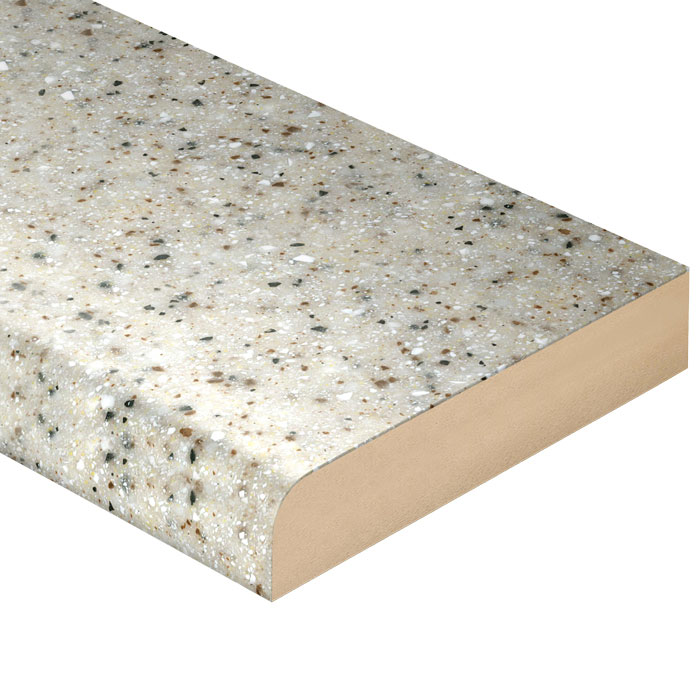

operating parameters in FURNITURE BOARD: 18,000-24,000 RPM, feed rate 2-16 m/min

Features - benefits

solid carbide end mills - body and cutting edge made from cemented carbide
end mills available in diameters of 6-25 mm with various overall and effective lengths
excellent surface finish, the cutting edge can be coated with a PVD coating, which significantly increases the tool?s service life
available versions: Right-Positive / Right-Negative / Left-Positive

Product description

Devices

Product card (pdf)

Download

F_FrezyTrzpienioweVHM_PL.pdf
InstrManual_LV_GLOBUS_eng-GB.pdf

Product manager

Rafał Zontek
email: rzontek@wapienica.pl

Delivery terms

Delivery Costs and Methods


The delivery form and cost are determined  individually with customer.

e-mail: eksport@wapienica.pl


Prices do not include the delivery cost (prices quoted EX WORKS).

Details

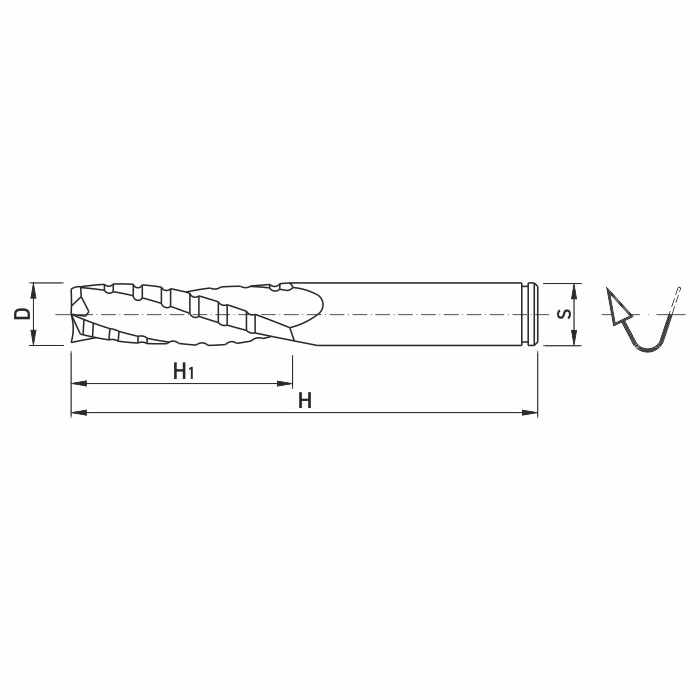

SelectCatalogueIndex∅ D [mm]H1 [mm]H [mm]∅ S [mm]ZRotation direction/Helix typeλ °U.m.EAN
LV031-0622070P0622070063PP-pozytyw/prawe20 stopniszt5900855399913
LV031-0822070P0822070083PP-pozytyw/prawe20 stopniszt5900855399920
LV031-0832080P0832080083PP-pozytyw/prawe20 stopniszt5900855399937
LV031-1032080P1032080103PP-pozytyw/prawe20 stopniszt5900855399944
LV031-1042090P1042090103PP-pozytyw/prawe20 stopniszt5900855399951
LV031-1052100P1052100103PP-pozytyw/prawe20 stopniszt5900855399968
LV031-1232080P1232080123PP-pozytyw/prawe20 stopniszt5900855399975
LV031-1242090P1242090123PP-pozytyw/prawe20 stopniszt5900855396684
LV031-1252100P1252100123PP-pozytyw/prawe20 stopniszt5900855399982
LV031-1642090P1642090163PP-pozytyw/prawe20 stopniszt5900855399999
LV031-1652100P1652100163PP-pozytyw/prawe20 stopniszt5900855400008
LV031-1672120P1672120163PP-pozytyw/prawe20 stopniszt5900855400015
LV031-2052100P2052100203PP-pozytyw/prawe20 stopniszt5900855400022
LV031-2072120P2072120203PP-pozytyw/prawe20 stopniszt5900855400039
LV031-20100150P20100150203PP-pozytyw/prawe20 stopniszt5900855400046
Catalogue:   - to order
