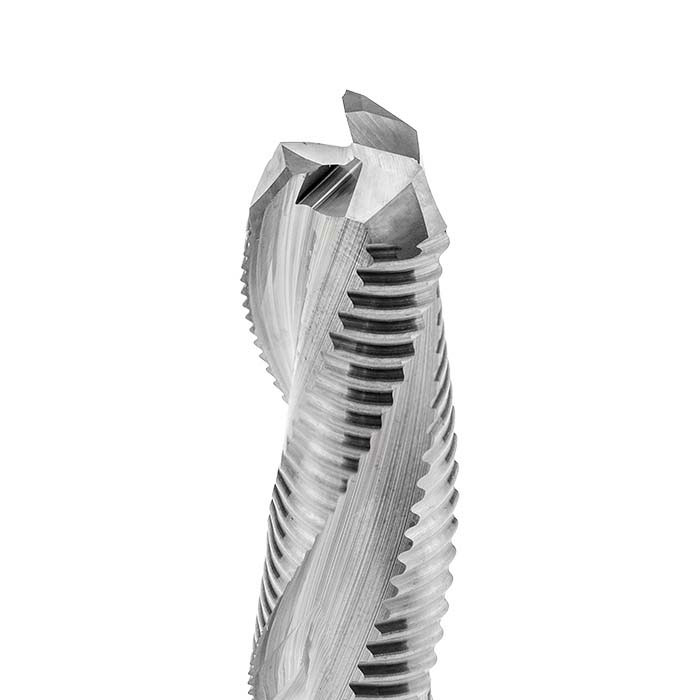

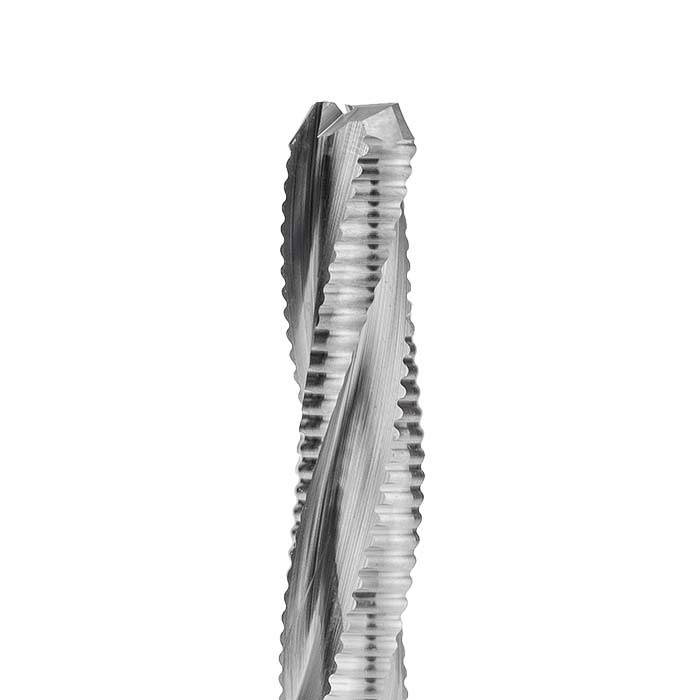

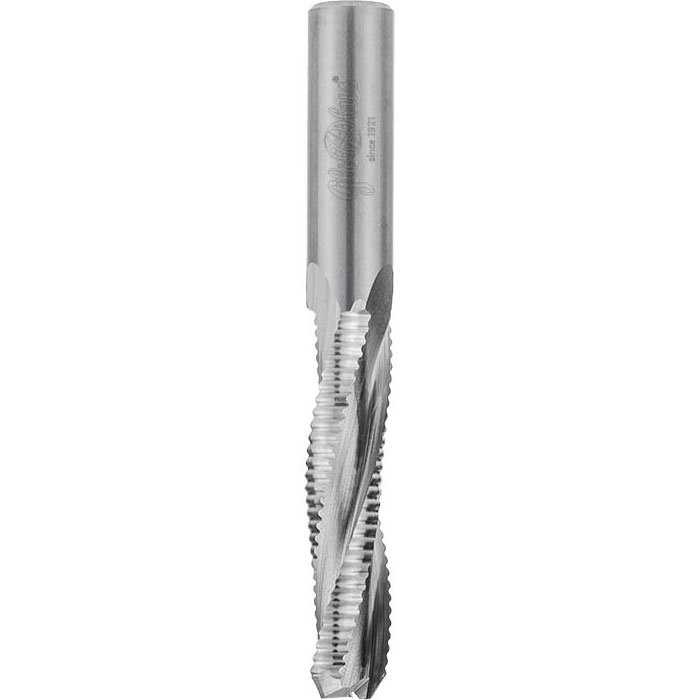

Z3 solid carbide roughing cutters with chamfer - for machining wood and wood-based materials
LV232
New
Application
3-flute spiral cutters with a chamfered edge for milling handle recesses in doorsfor cutting and milling in solid wood and wood-based materialsused on high-performance CNC machining centres with mechanical feedoperating parameters in WOOD: 18,000-20,000 RPM, feed rate 4-10 m/minoperating parameters in FURNITURE BOARD: 18,000-20,000 RPM, feed rate 4-10 m/min Features - benefits
solid carbide end mills - body and cutting edge made of cemented carbidecutters available in diameters of 14-18 mm, with varying overall lengths and cutting edge lengthsexcellent surface finish, the cutting edge can be coated with a PVD coating, which significantly increases the tool?s service lifeavailable versions: Right-Hand (Positive)
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

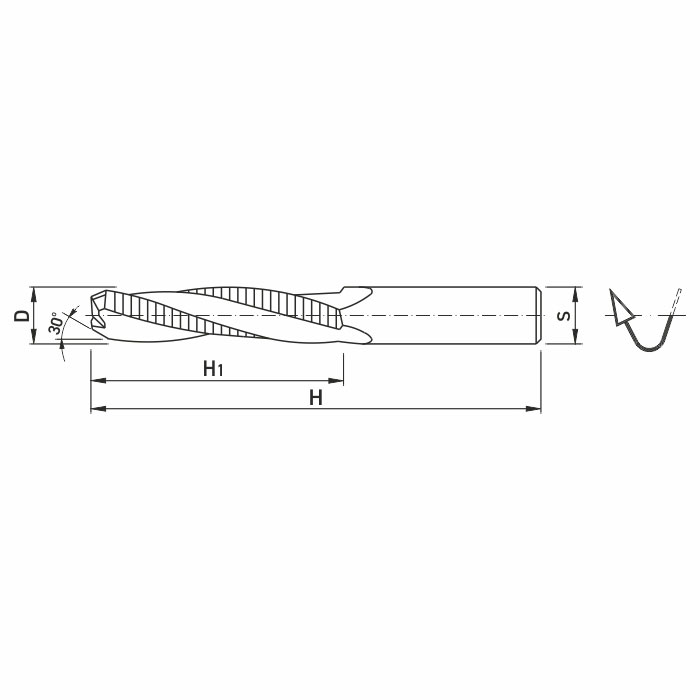

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | V? | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 60 | 110 | 14 | 3 | faza 30 stopni | PP-pozytyw/prawe | 20 stopni | szt | 5900855396745 | |||
| 14 | 65 | 120 | 14 | 3 | faza 30 stopni | PP-pozytyw/prawe | 20 stopni | szt | 5900855400732 | |||
| 16 | 60 | 110 | 16 | 3 | faza 30 stopni | PP-pozytyw/prawe | 20 stopni | szt | 5900855400763 | |||
| 16 | 65 | 120 | 16 | 3 | faza 30 stopni | PP-pozytyw/prawe | 20 stopni | szt | 5900855400749 | |||
| 18 | 60 | 110 | 18 | 3 | faza 30 stopni | PP-pozytyw/prawe | 20 stopni | szt | 5900855400770 | |||
| 18 | 65 | 120 | 18 | 3 | faza 30 stopni | PP-pozytyw/prawe | 20 stopni | szt | 5900855400756 |
Catalogue: - to order
