Product card

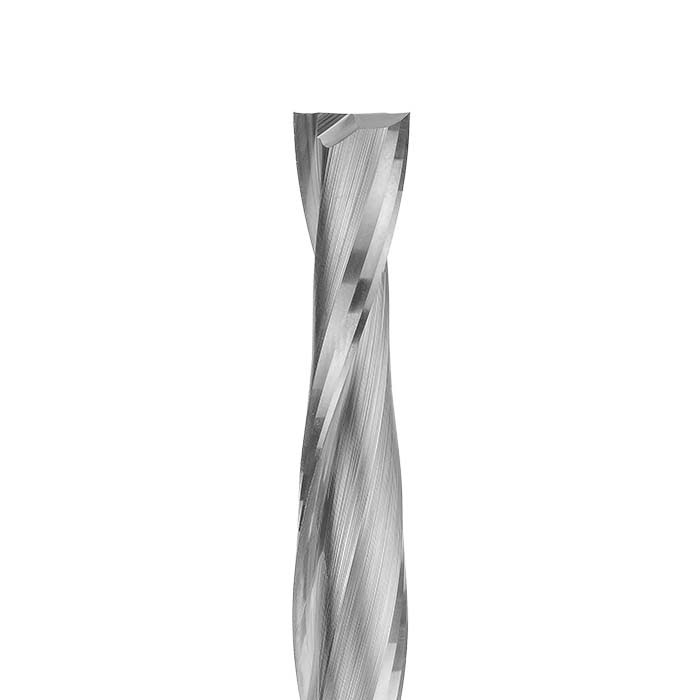

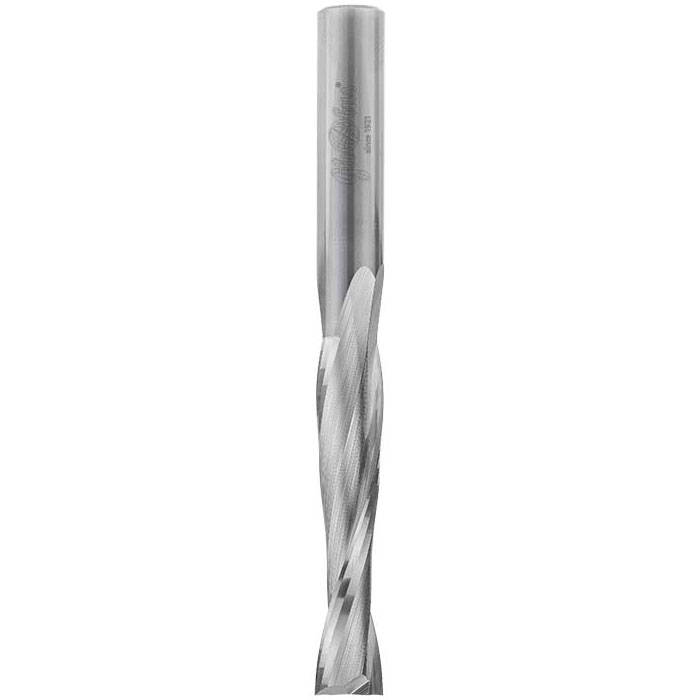

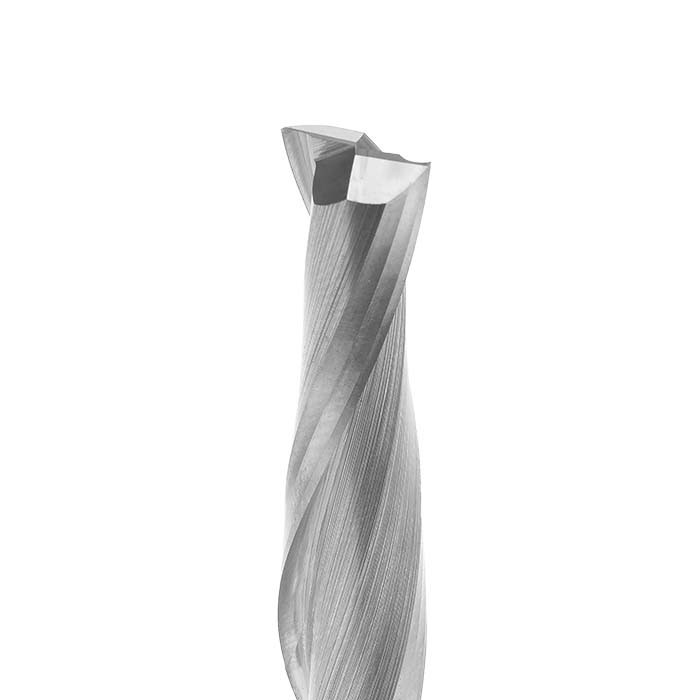

Z2 solid carbide finishing cutters with a gentle 12o helix - for foam and soft plastics
LV623
New
Application

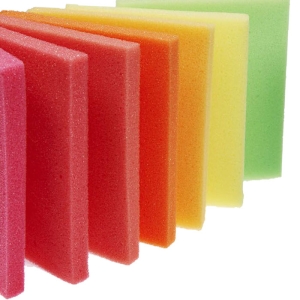

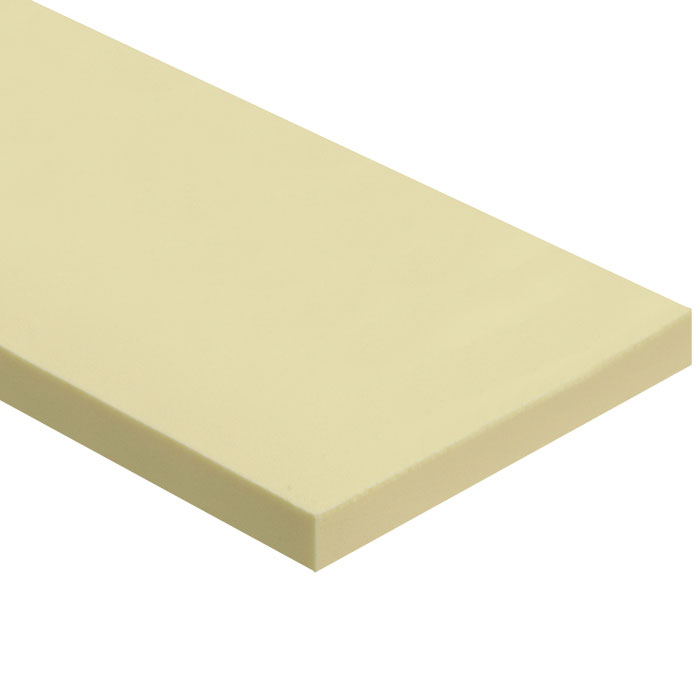

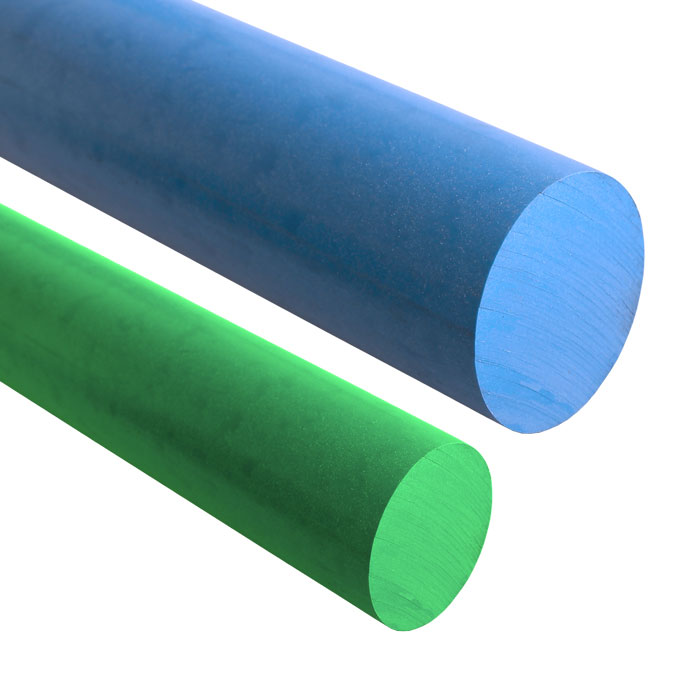

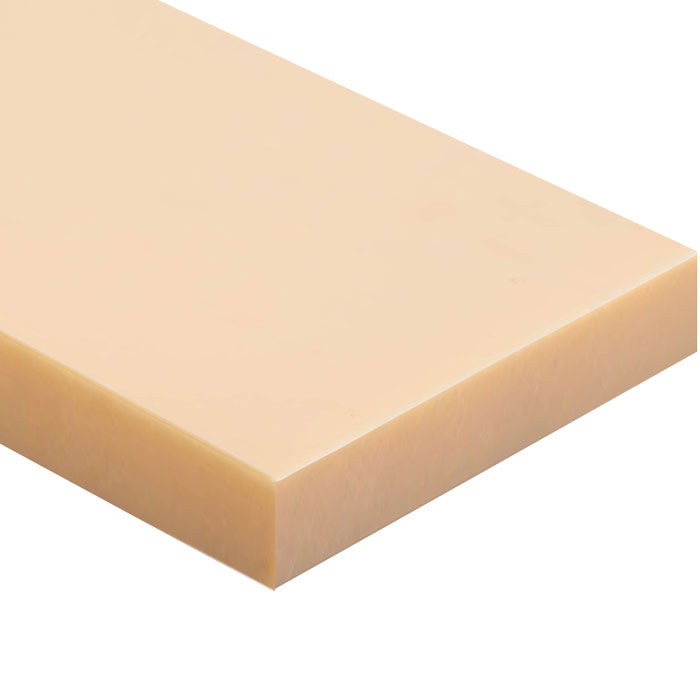

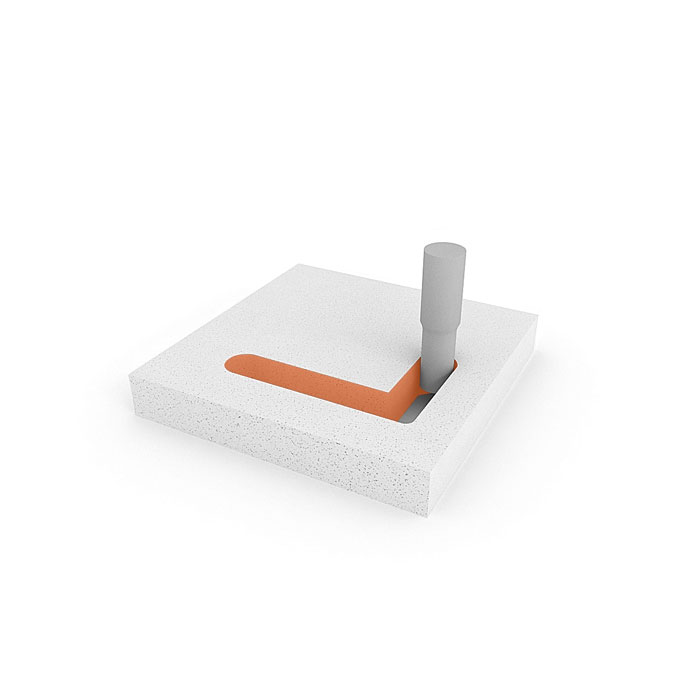

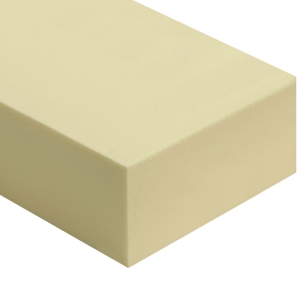

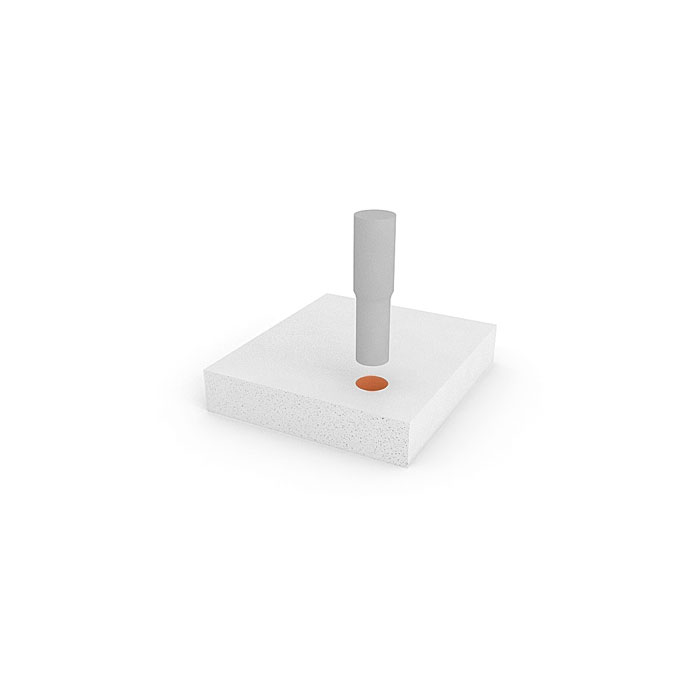

for cutting and milling in materials such as foam, plastics, etc.these cutters are also used for machining soft plastic materials with an aluminium layerdouble-edged cutter - positive (upward chip ejection), with polished chip flutes to prevent material adhesionused on high-performance CNC machining centres with mechanical feedoperating parameters for PLASTIC PROFILES: 16,000-24,000 RPM, feed rate 2-10 m/minoperating parameters for PLASTIC SHEETS: 16,000-24,000 RPM, feed rate 2-10 m/min Features - benefits
solid carbide end mills - body and cutting edge made from cemented carbidecutters available in diameters of 6-16 mm, with varying overall lengths and cutting edge lengthsthe special blade geometry and 12-degree helix allow for easy chip evacuation and a smooth surface finish on the workpiecethe cutting edge can be coated with performance-enhancing coatings, significantly increasing the tool?s service life
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

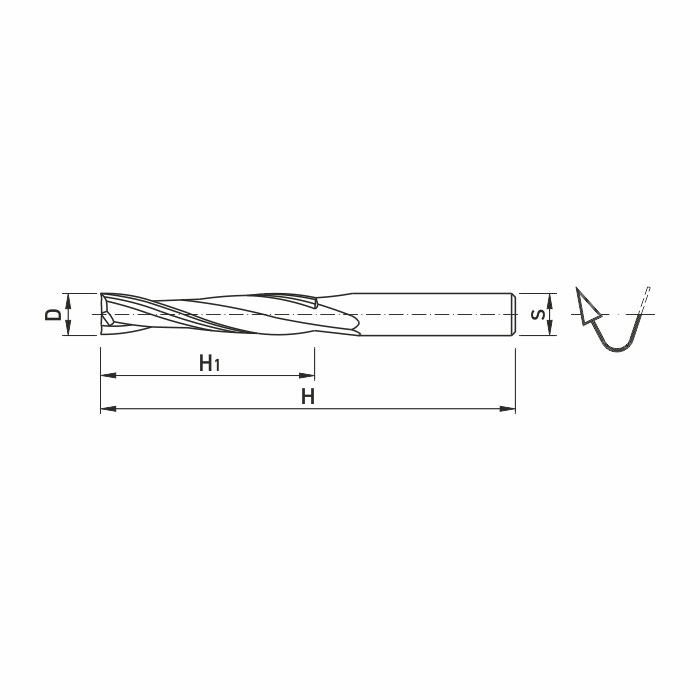

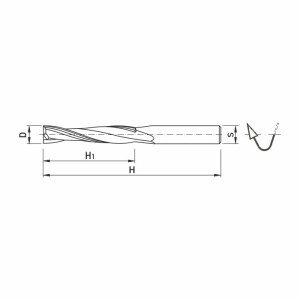

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06 | 25 | 080 | 06 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855402095 | |||
| 06 | 35 | 090 | 06 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855402101 | |||
| 08 | 35 | 090 | 08 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855402118 | |||
| 08 | 45 | 100 | 08 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855341240 | |||
| 10 | 45 | 100 | 10 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855341257 | |||
| 10 | 55 | 110 | 10 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855341264 | |||
| 12 | 55 | 110 | 12 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855341271 | |||
| 12 | 65 | 130 | 12 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855341288 | |||
| 16 | 90 | 150 | 16 | 2 | PP-pozytyw/prawe | 12 stopni | szt | 5900855341295 |
Catalogue: - to order
