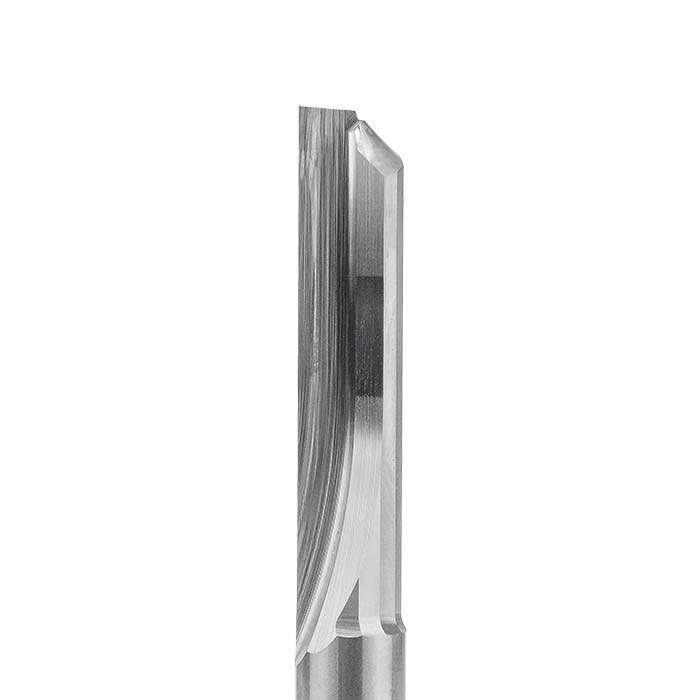

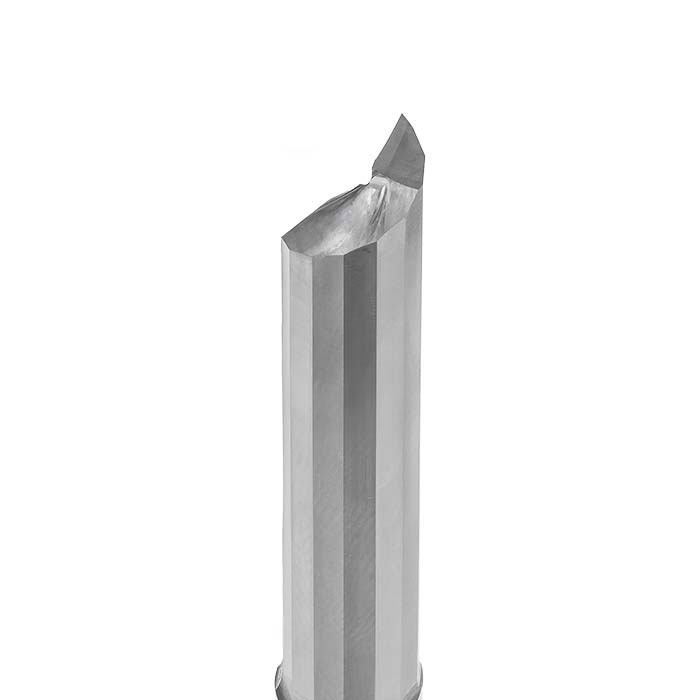

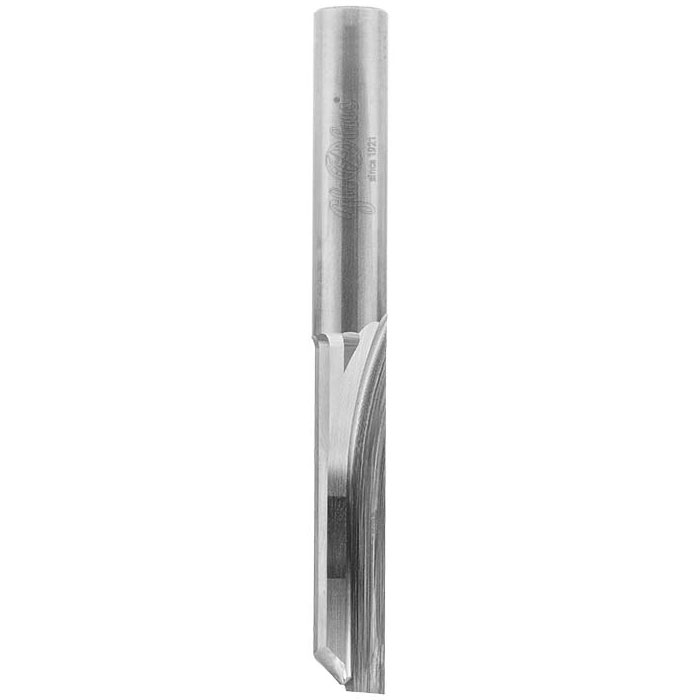

Z1 solid carbide finishing cutters, straight with 0o helix - for machining plastics
LV613
New
Application

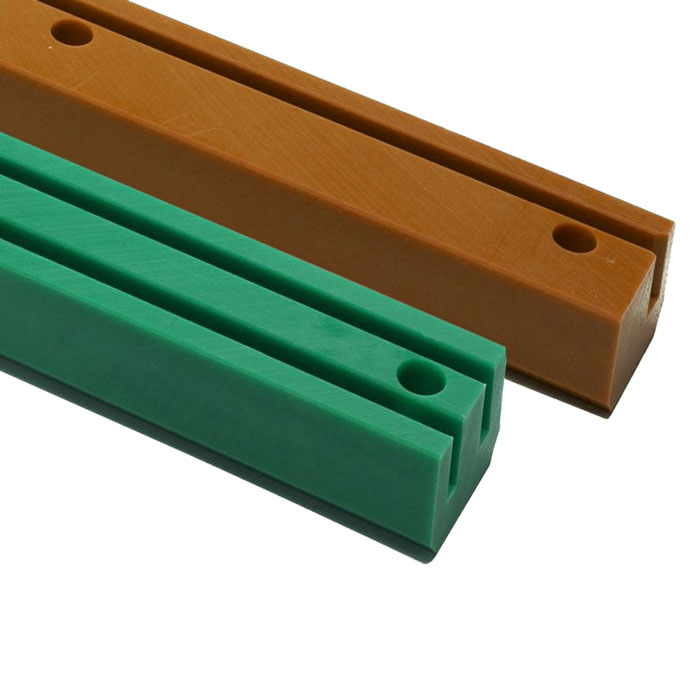

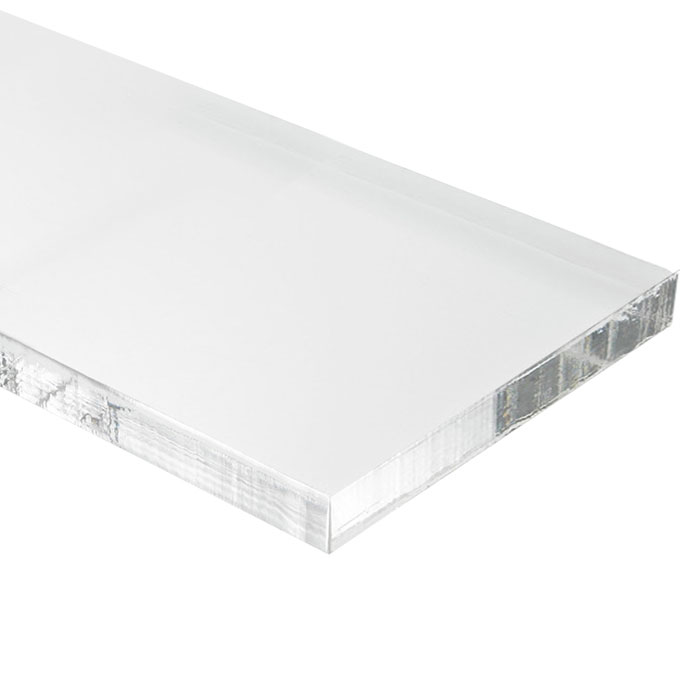

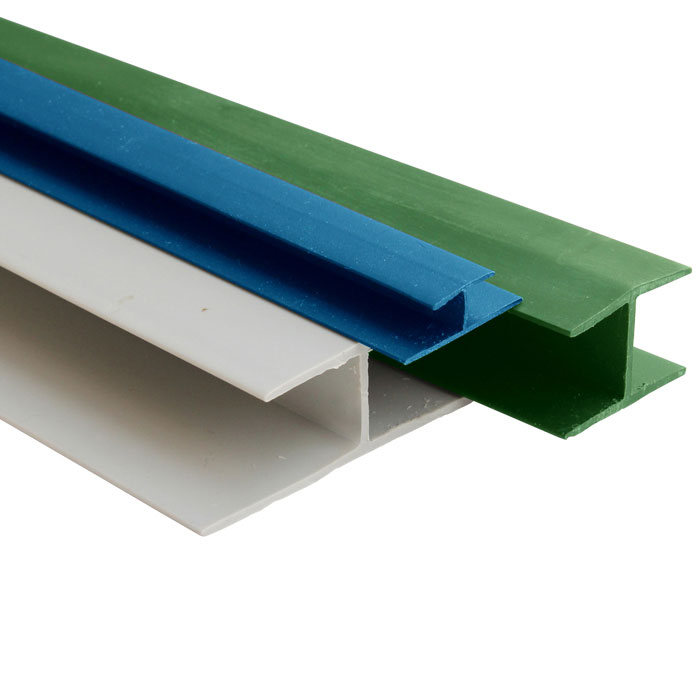

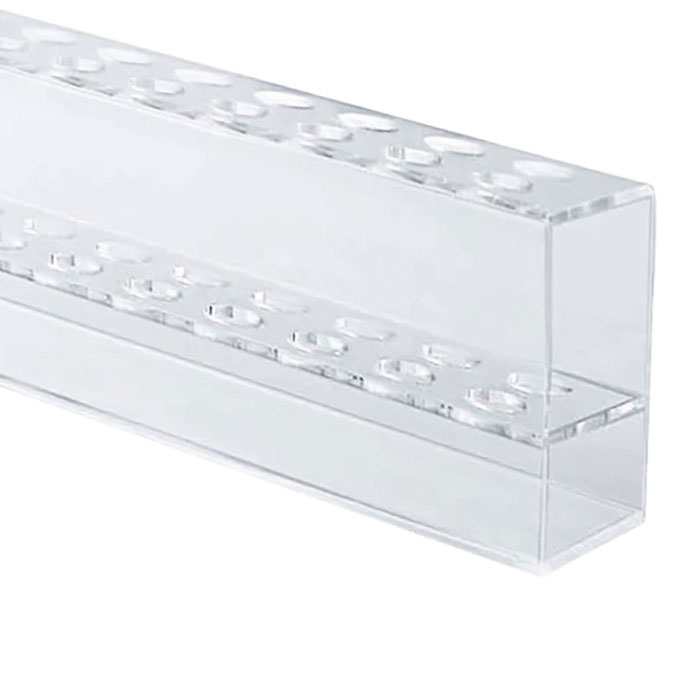

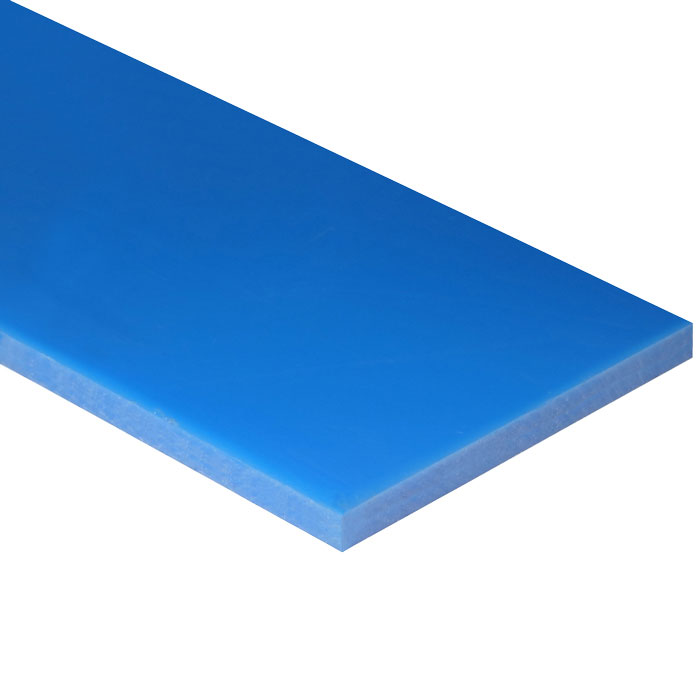

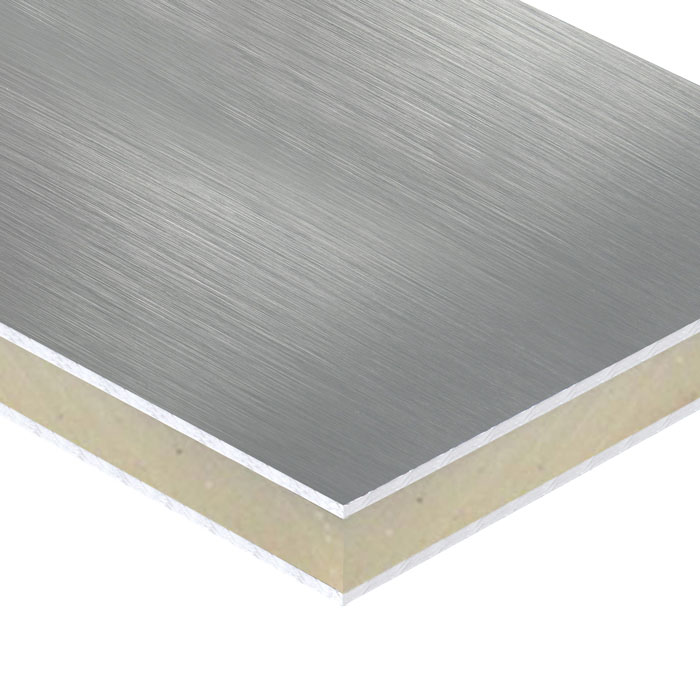

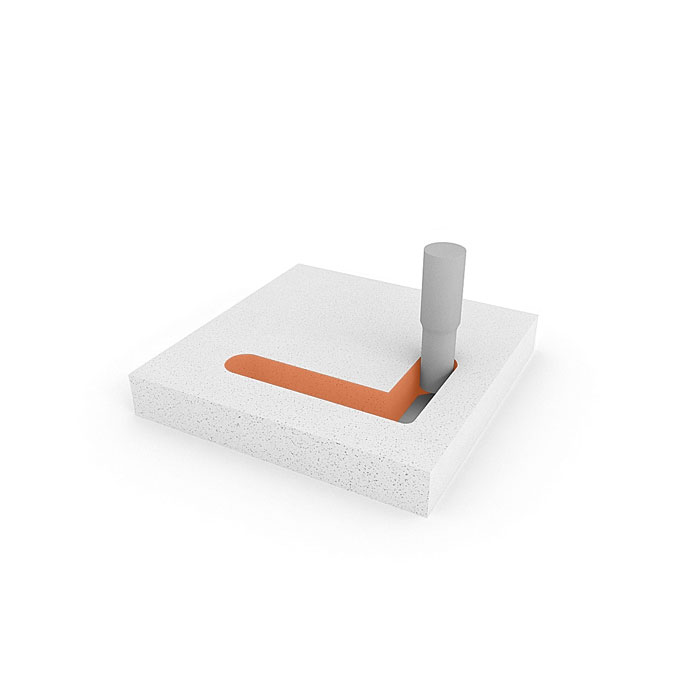

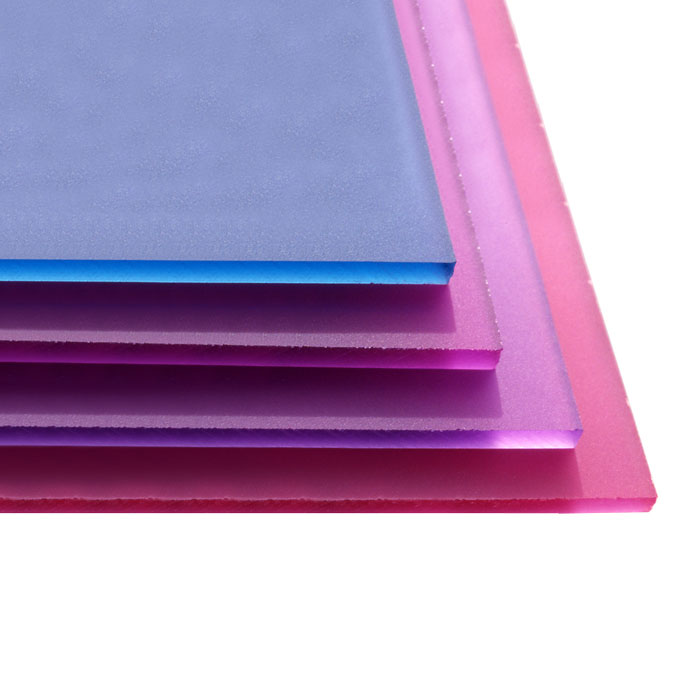

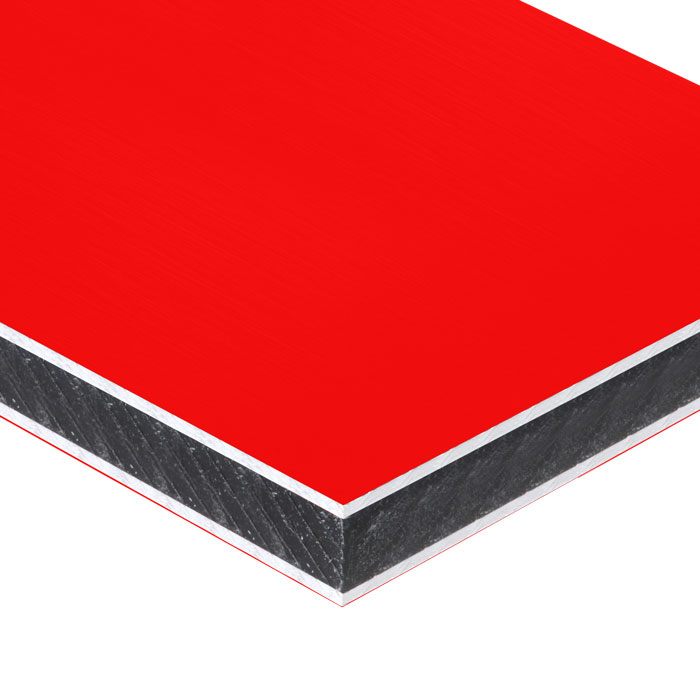

for cutting and milling plastics, plexiglass, etc.the milling cutter is also used for machining plastic materials with an aluminium layerused on high-performance CNC machining centres with mechanical feedoperating parameters for PLASTIC PROFILES: 16,000-24,000 RPM, feed rate 2-10 m/minoperating parameters for PLASTIC SHEETS: 16,000-24,000 RPM, feed rate 2-10 m/min Features - benefits
solid carbide end mills - body and cutting edge made from cemented carbidecutters available in diameters of 3-12 mm, with varying overall lengths and cutting edge lengthsthe special cutting edge geometry and 0-degree helix allow for easy chip evacuation and produce a smooth surface on the workpiecethe cutting edge can be coated with performance-enhancing coatings, significantly increasing the tool?s service life
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

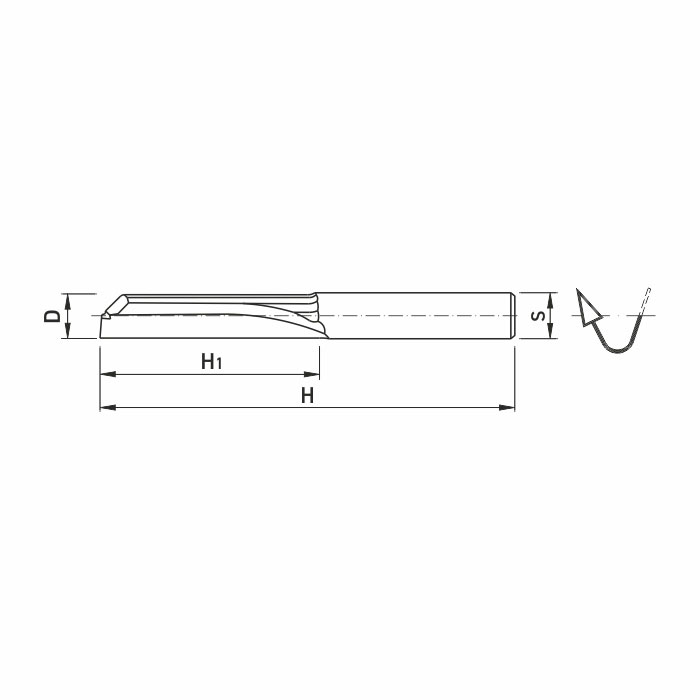

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 03 | 12 | 050 | 03 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401777 | |||
| 04 | 14 | 050 | 04 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401784 | |||
| 05 | 18 | 055 | 05 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401791 | |||
| 06 | 20 | 065 | 06 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401807 | |||
| 06 | 25 | 070 | 06 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401814 | |||
| 08 | 25 | 070 | 08 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401821 | |||
| 08 | 35 | 080 | 08 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401838 | |||
| 10 | 35 | 080 | 10 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401845 | |||
| 10 | 45 | 090 | 10 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855396653 | |||
| 12 | 35 | 080 | 12 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401852 | |||
| 12 | 45 | 090 | 12 | 1 | PP-pozytyw/prawe | 0 stopni | szt | 5900855401869 |
Catalogue: - to order
