Product card

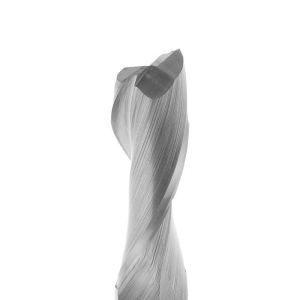

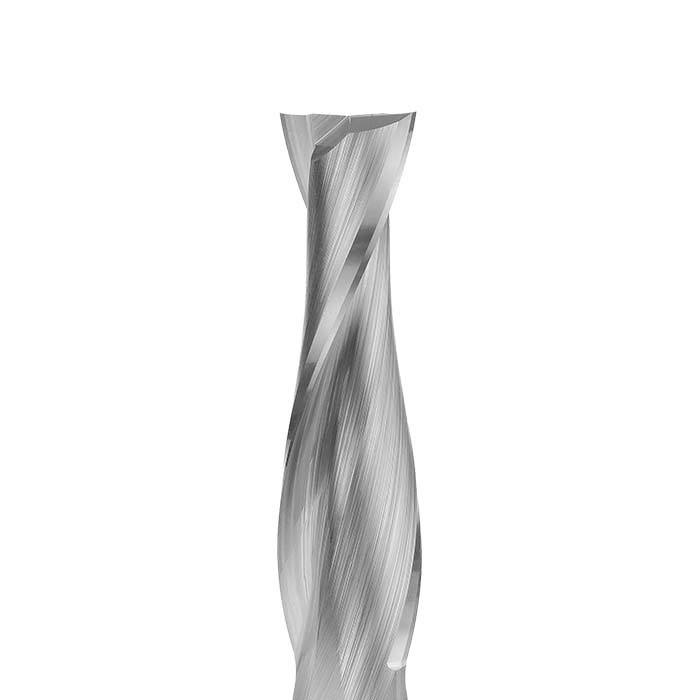

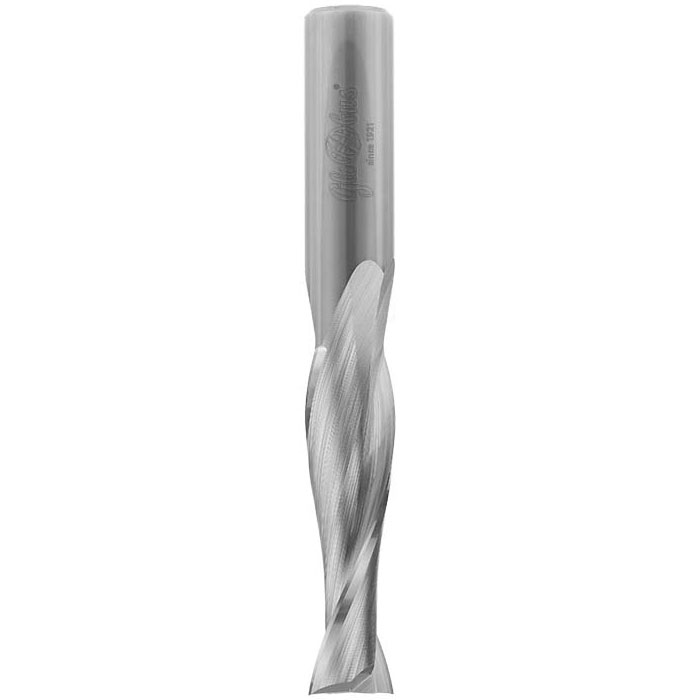

Z2 solid carbide finishing cutters - for machining plastics

LV620
New

Application

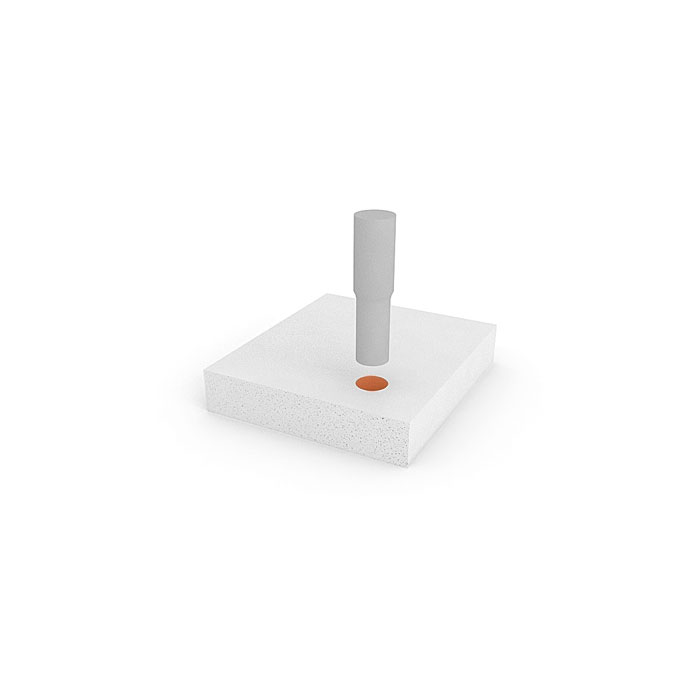

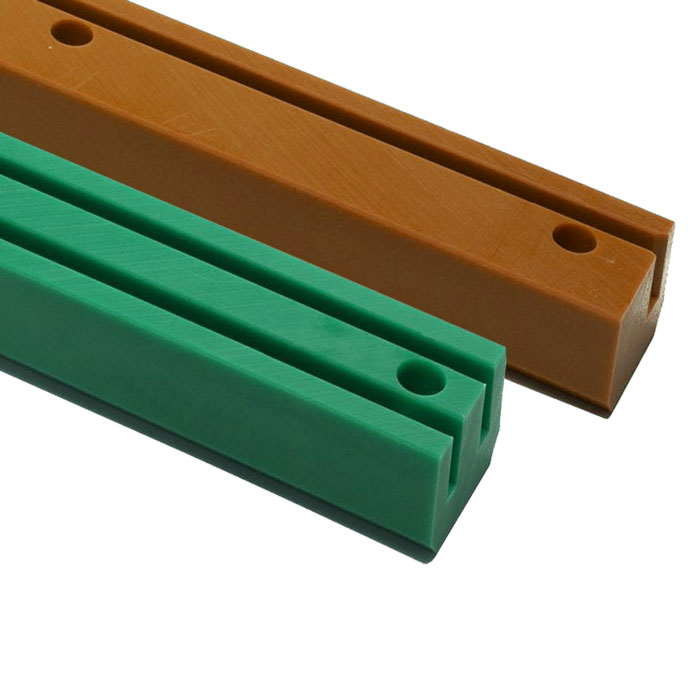

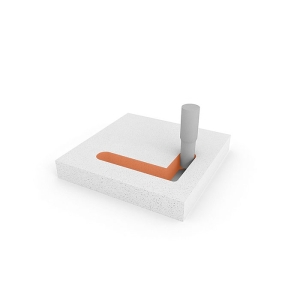

for cutting and milling plastics, plexiglass, etc.

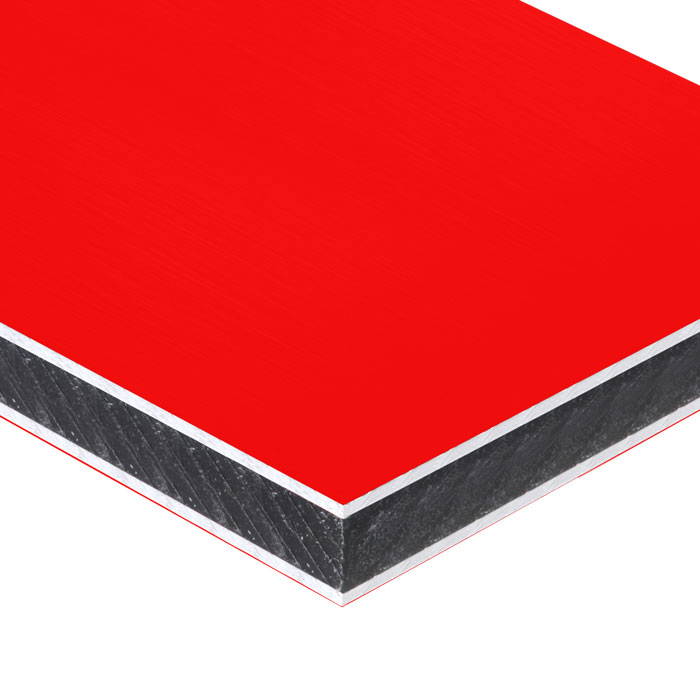

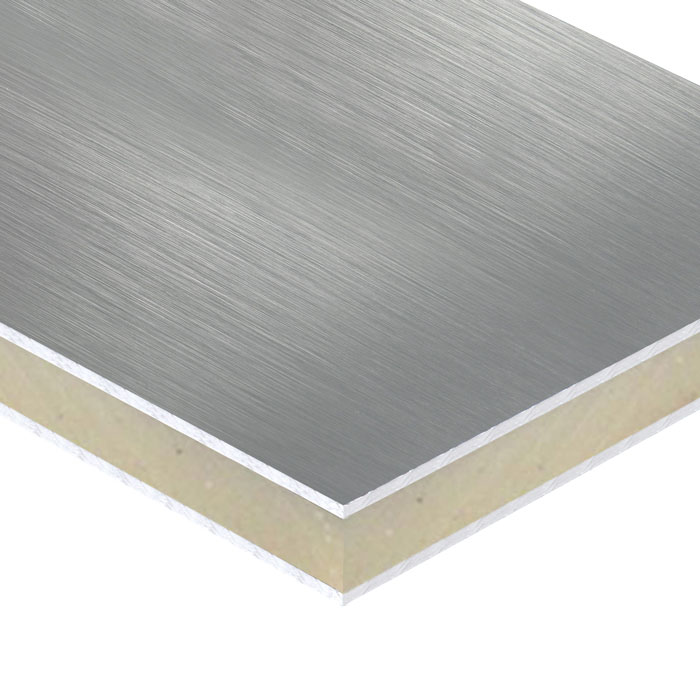

the milling cutter is also used for machining plastic materials with an aluminium layer
double-edged milling cutter - positive (upward chip ejection)
used on high-performance CNC machining centres with mechanical feed

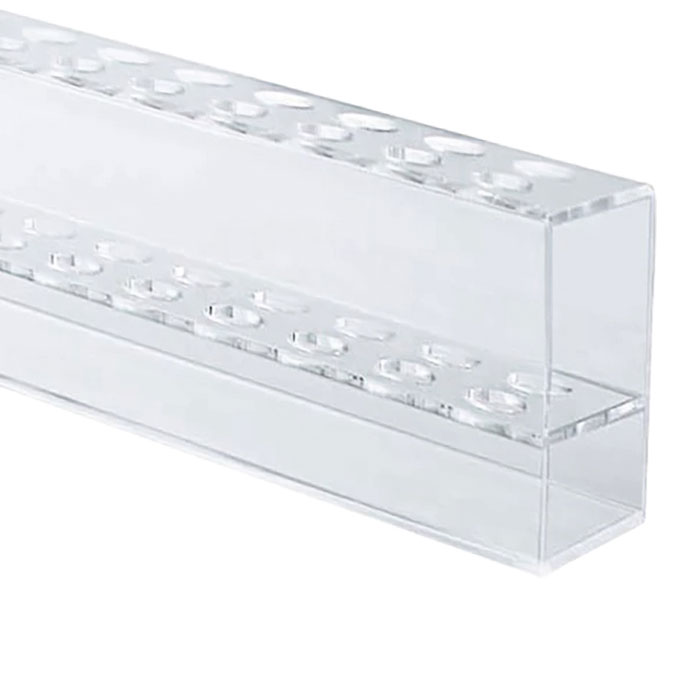

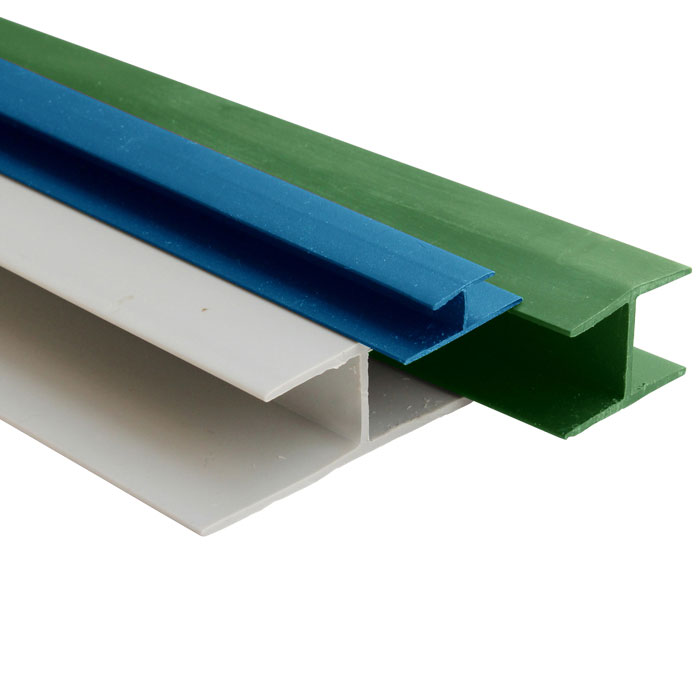

Operating parameters for PLASTIC PROFILES: 16,000-24,000 rpm, feed rate 2-10 m/min

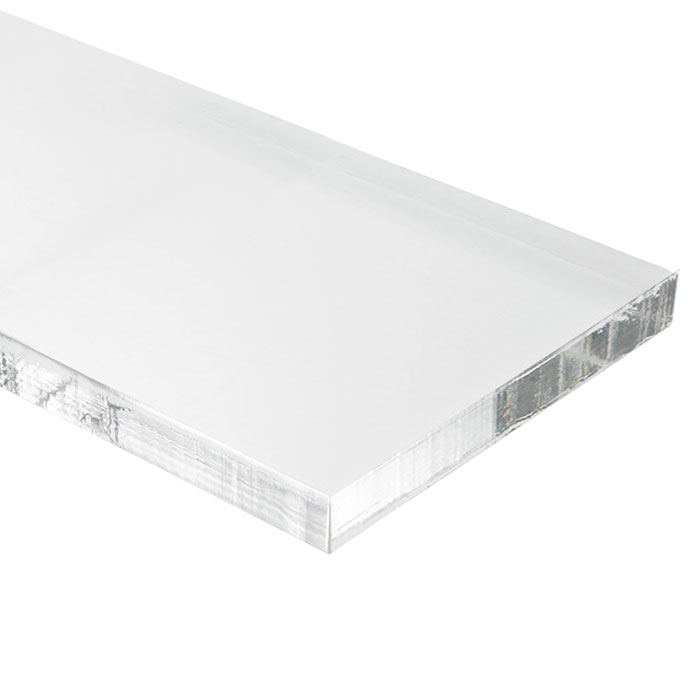

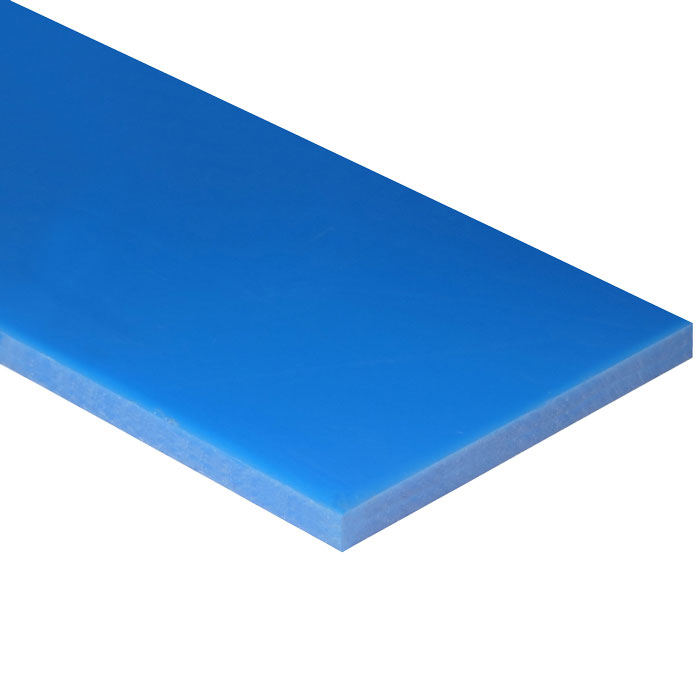

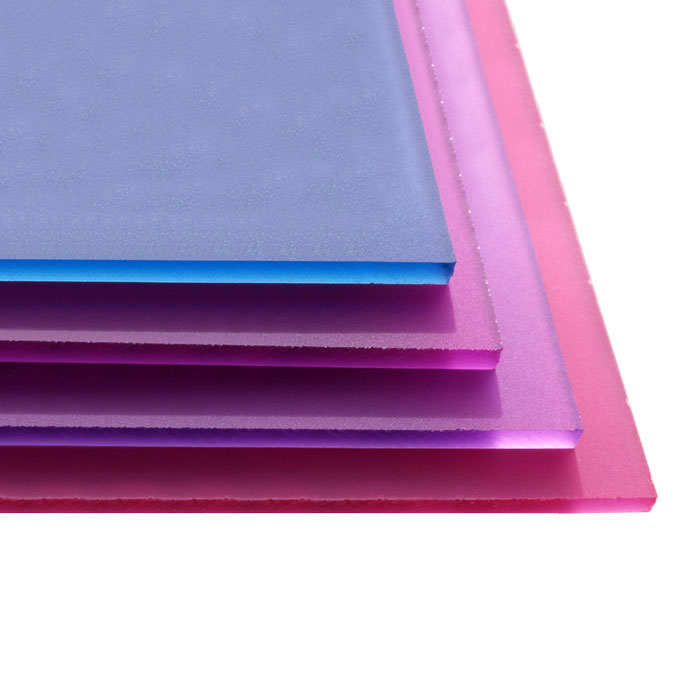

Operating parameters for PLASTIC SHEETS: 16,000-24,000 rpm, feed rate 2-10 m/min

Features - benefits

solid carbide end mills - body and cutting edge made from cemented carbide
cutters can be manufactured in diameters of 3-12 mm, with varying overall lengths and cutting edge lengths
the special blade geometry and spiral arrangement allow for easy chip evacuation and a smooth surface finish on the workpiece
the cutting edge can be coated with performance-enhancing coatings, significantly increasing the tool?s service life

Product description

Devices

Product card (pdf)

Download

F_FrezyTrzpienioweVHM_PL.pdf
InstrManual_LV_GLOBUS_eng-GB.pdf

Product manager

Rafał Zontek
email: rzontek@wapienica.pl

Delivery terms

Delivery Costs and Methods


The delivery form and cost are determined  individually with customer.

e-mail: eksport@wapienica.pl


Prices do not include the delivery cost (prices quoted EX WORKS).

Details

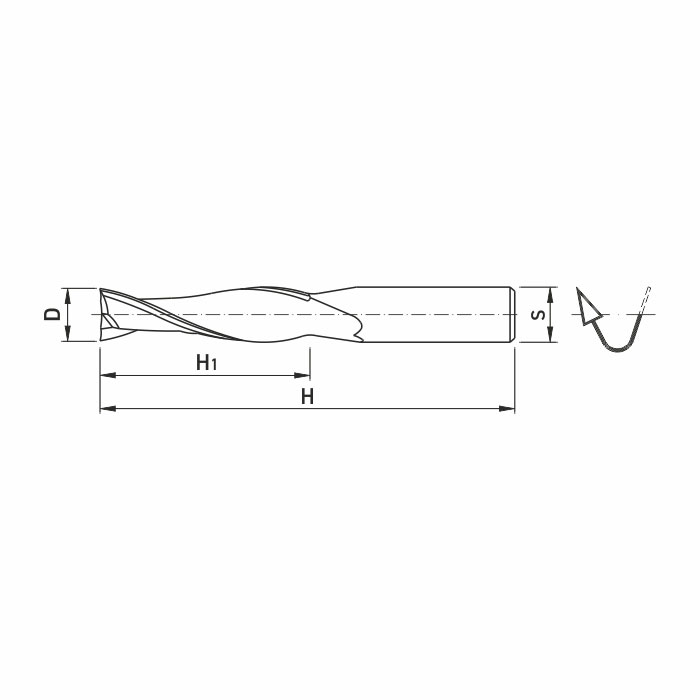

SelectCatalogueIndex∅ D [mm]H1 [mm]H [mm]∅ S [mm]ZRotation direction/Helix typeλ °U.m.EAN
LV620-0312050P0312050032PP-pozytyw/prawe25 stopniszt5900855401999
LV620-0414050P0414050042PP-pozytyw/prawe25 stopniszt5900855402002
LV620-0518055P0518055052PP-pozytyw/prawe25 stopniszt5900855402019
LV620-0620065P0620065062PP-pozytyw/prawe25 stopniszt5900855402026
LV620-0625070P0625070062PP-pozytyw/prawe25 stopniszt5900855402033
LV620-0825070P0825070082PP-pozytyw/prawe25 stopniszt5900855402040
LV620-0835080P0835080082PP-pozytyw/prawe25 stopniszt5900855402057
LV620-1035080P1035080102PP-pozytyw/prawe25 stopniszt5900855402064
LV620-1045090P1045090102PP-pozytyw/prawe25 stopniszt5900855402071
LV620-1235080P1235080122PP-pozytyw/prawe25 stopniszt5900855402088
LV620-1245090P1245090122PP-pozytyw/prawe25 stopniszt5900855396844
Catalogue:   - to order
