Product card

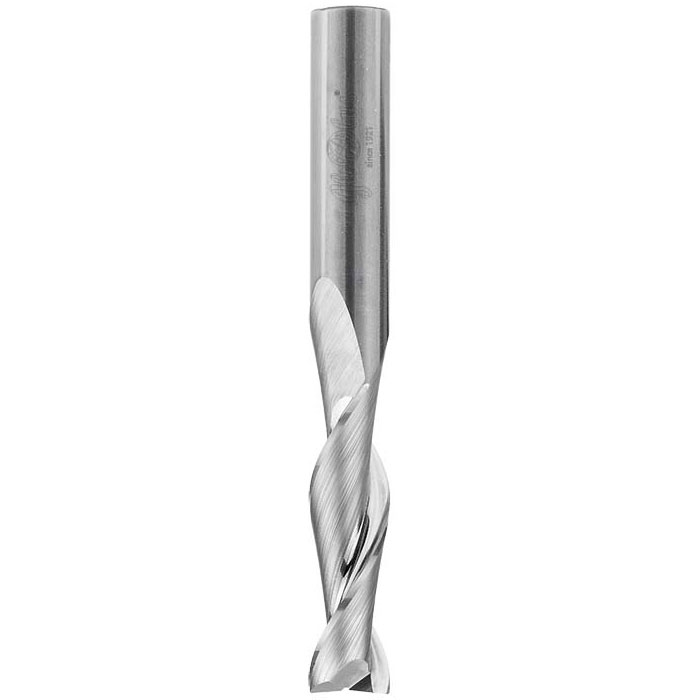

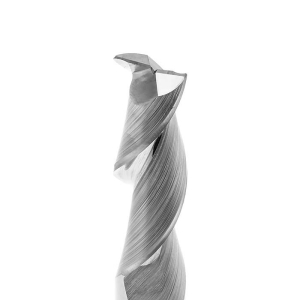

Z2 solid carbide finishing cutters - for aluminium
LV520
New
Application

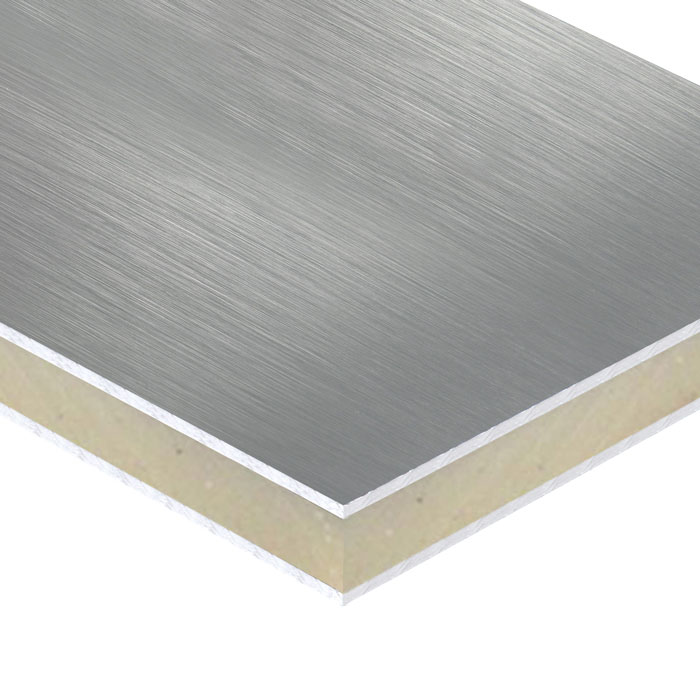

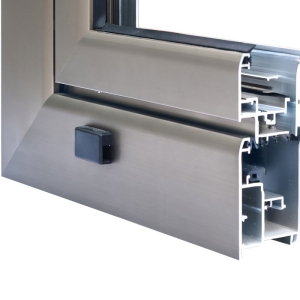

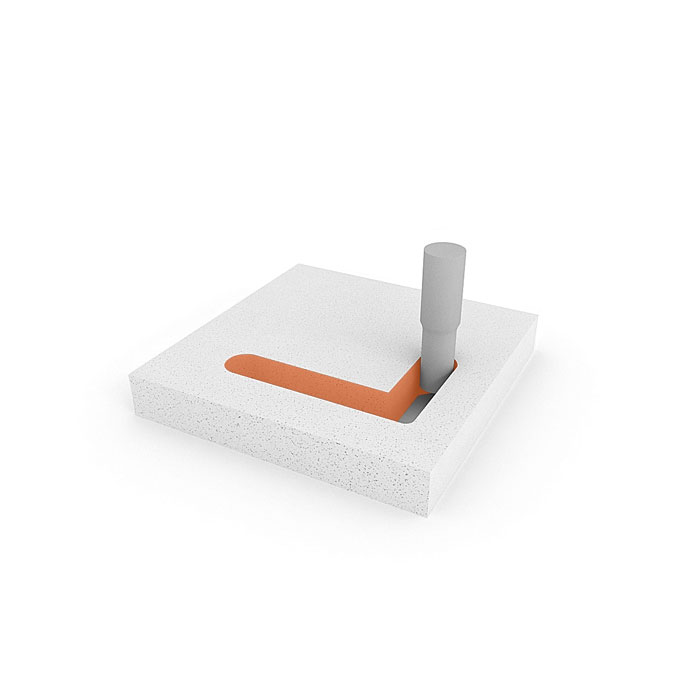

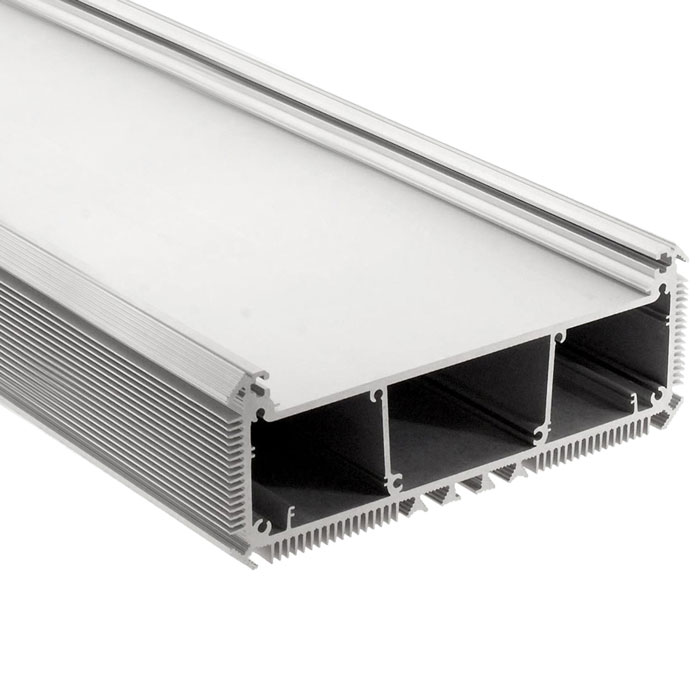

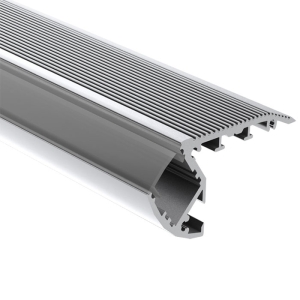

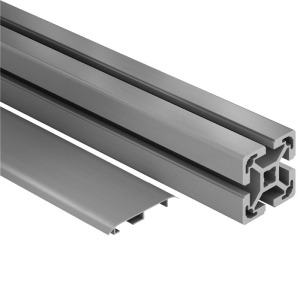

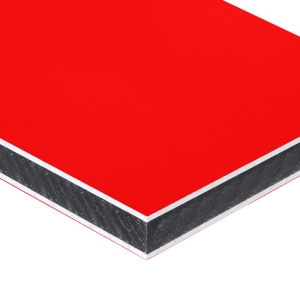

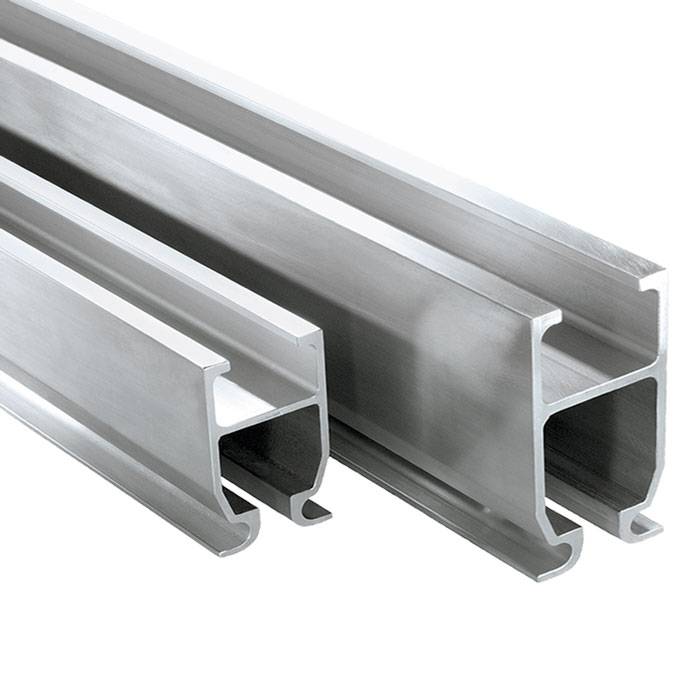

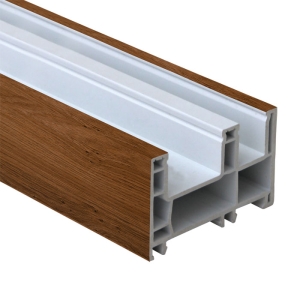

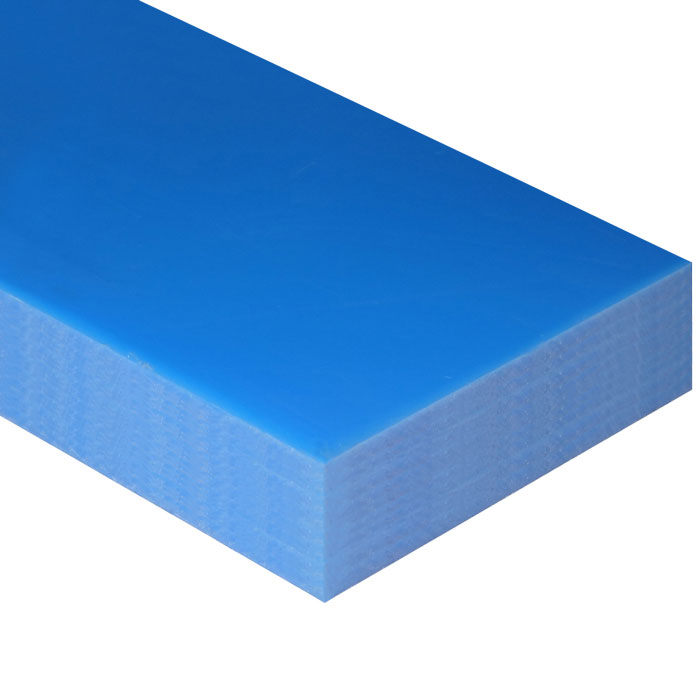

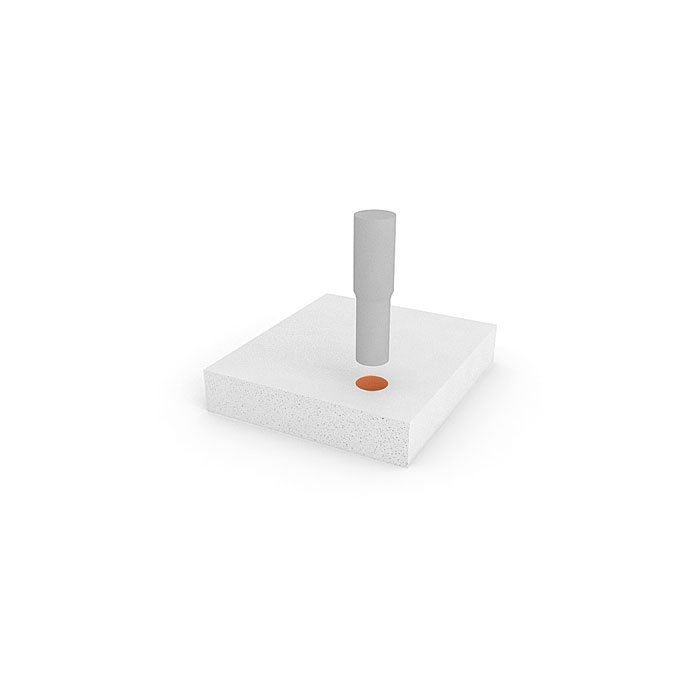

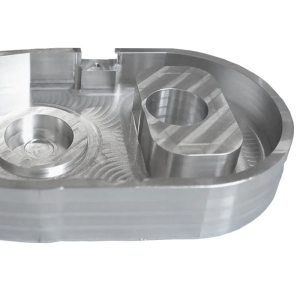

for cutting and milling aluminium (e.g. aluminium profiles) and plasticsthe special cutting edge geometry and spiral arrangement allow for easy chip evacuation and a smooth surface finish on the workpieceused on high-performance CNC machining centres with mechanical feedoperating parameters for ALUMINIUM PROFILES: 16,000-24,000 RPM, feed rate 2-10 m/minoperating parameters for ALUMINIUM: 16,000-24,000 RPM, feed rate 2-10 m/min Features - benefits

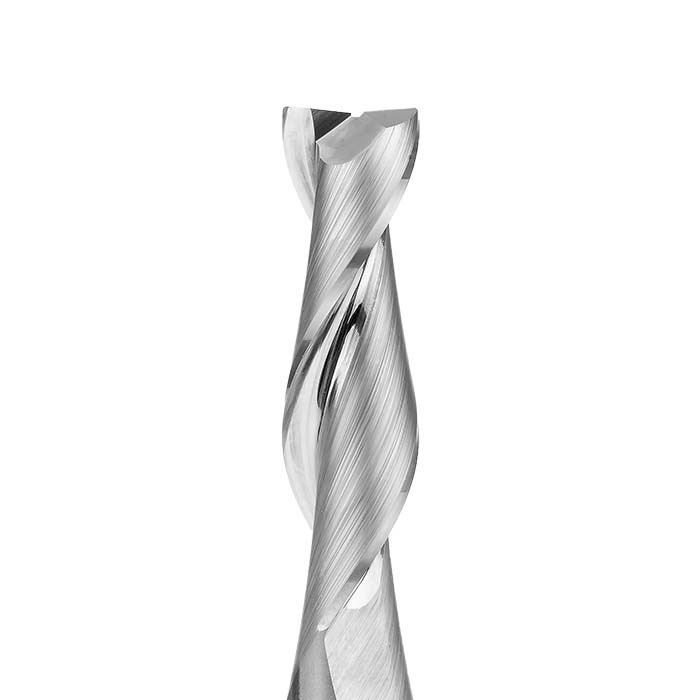

solid carbide end mills - body and cutting edge made of cemented carbidecutters available in diameters of 5-16 mm, with varying overall lengths and cutting edge lengthspositive double-edged cutter, with polished chip flutes and cutting edge - option to incorporate a recessed area behind the cutting edgeoption to apply performance-enhancing coatings to the cutting edge, significantly extending the tool?s service life
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

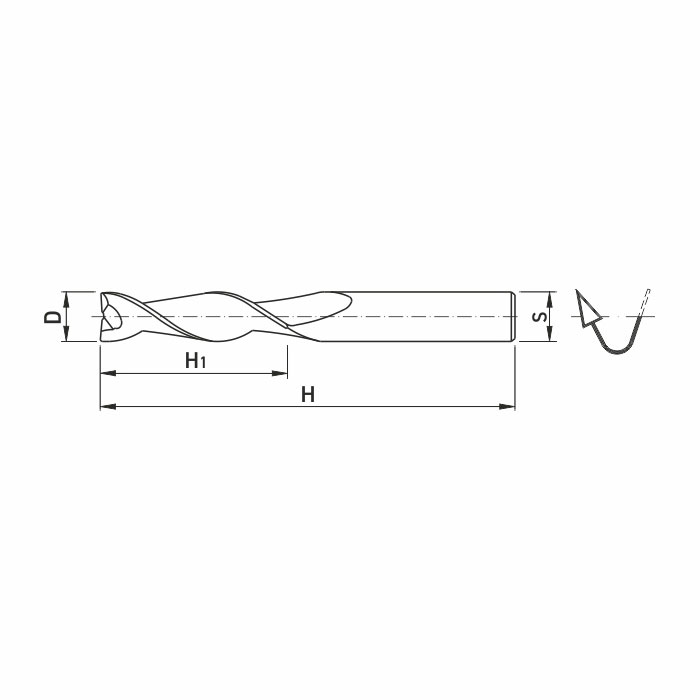

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 05 | 30 | 070 | 05 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401678 | |||
| 06 | 40 | 100 | 06 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401685 | |||
| 08 | 35 | 080 | 08 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401692 | |||
| 08 | 70 | 150 | 08 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401708 | |||
| 10 | 22 | 070 | 10 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401715 | |||
| 10 | 40 | 100 | 10 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401722 | |||
| 12 | 22 | 070 | 12 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401739 | |||
| 12 | 40 | 120 | 12 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401746 | |||
| 16 | 22 | 070 | 16 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401753 | |||
| 16 | 45 | 100 | 16 | 2 | PP-pozytyw/prawe | 30 stopni | szt | 5900855401760 |
Catalogue: - to order
