Product card

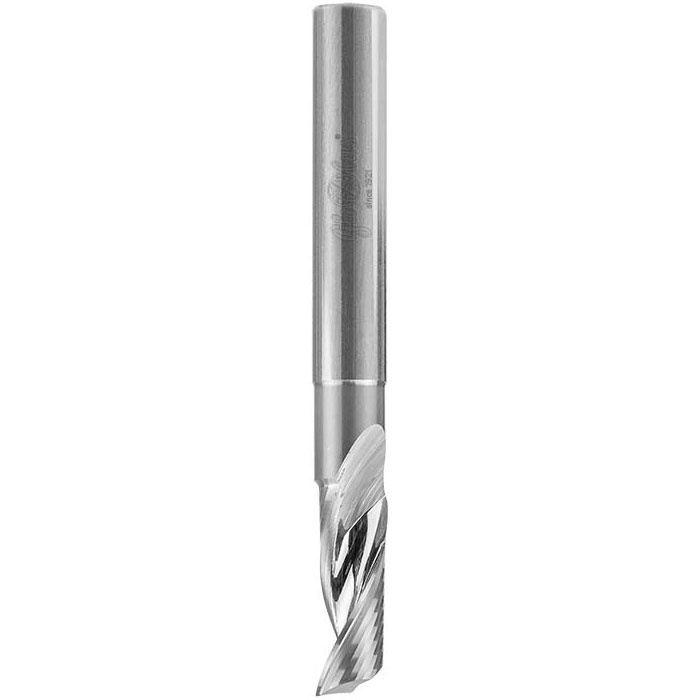

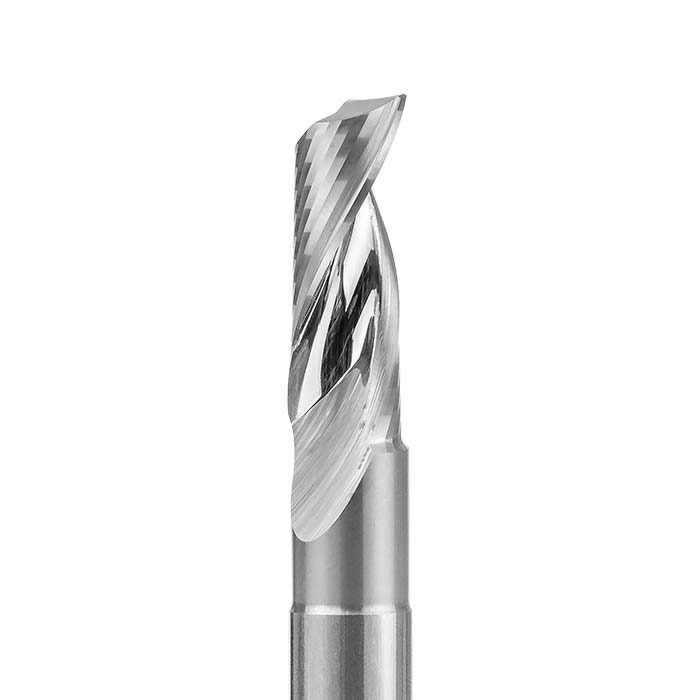

Z1 solid carbide finishing cutters with recessed flutes - for aluminium
LV513
New index
Application

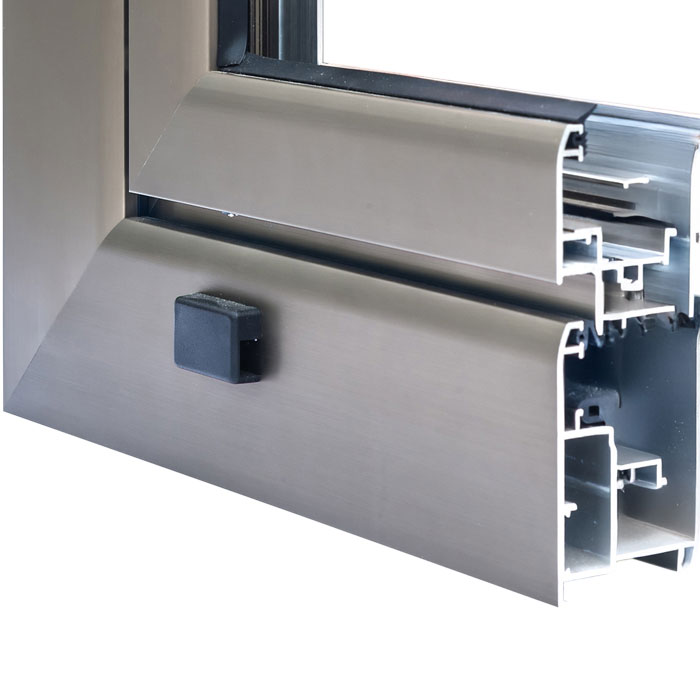

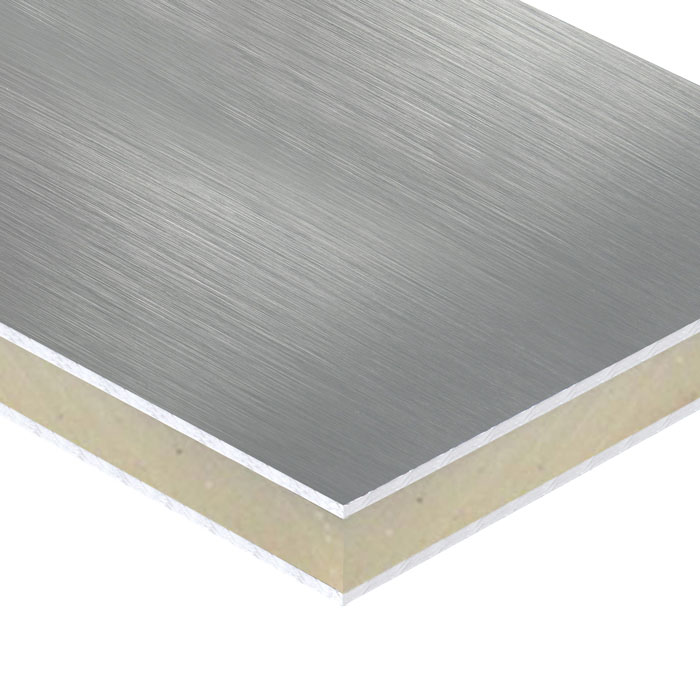

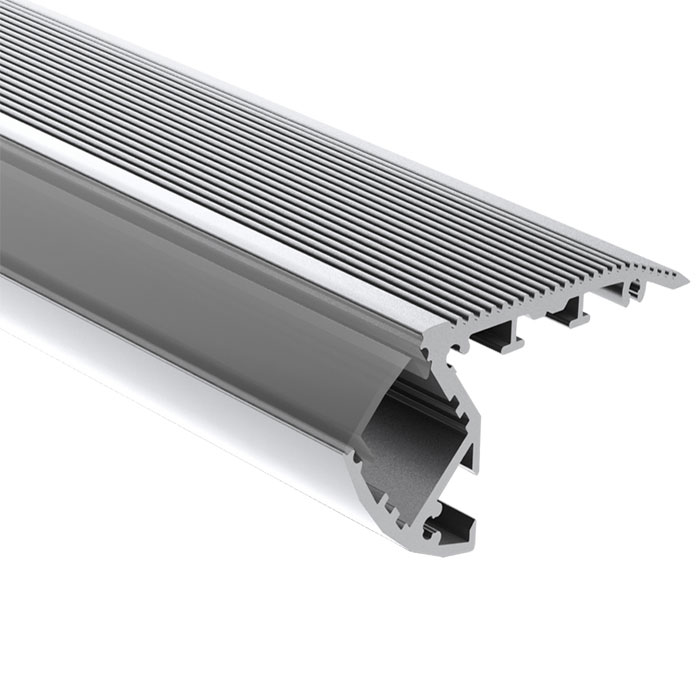

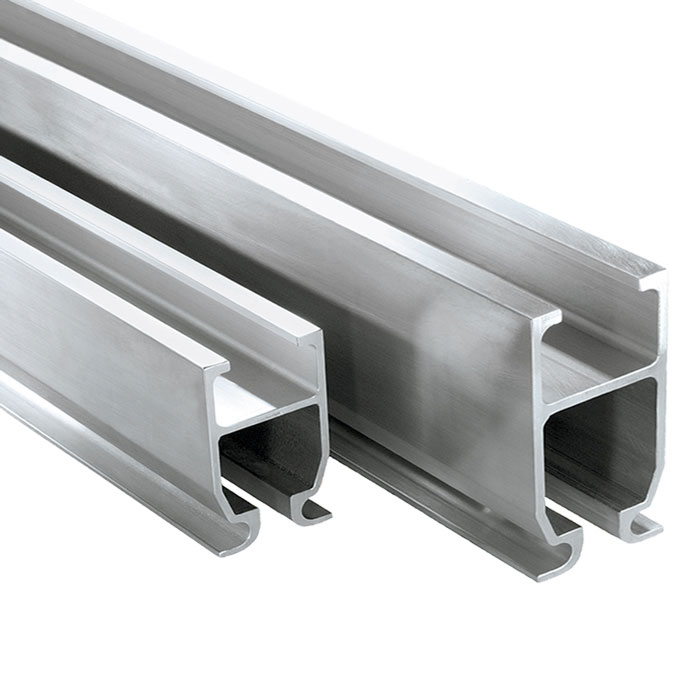

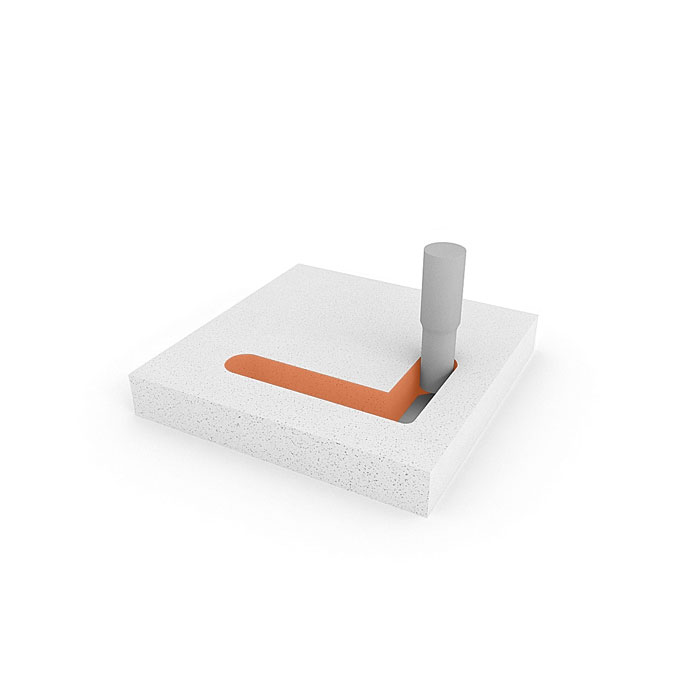

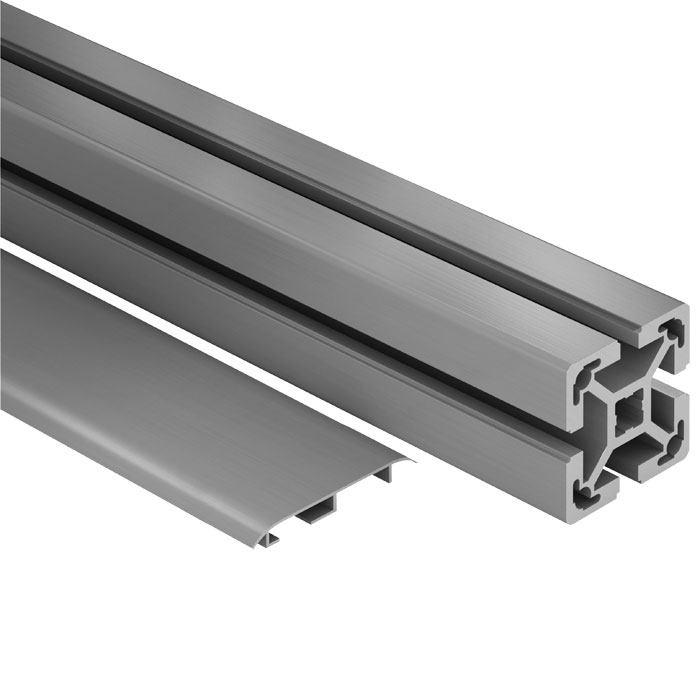

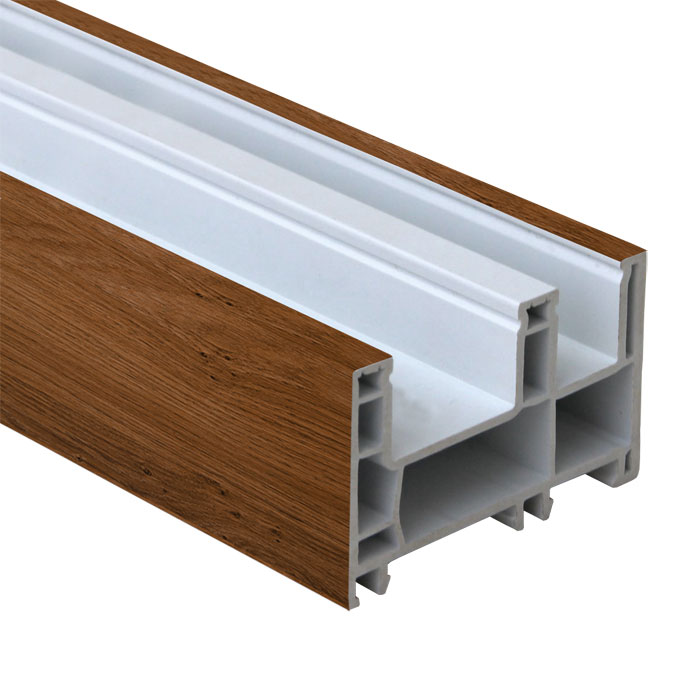

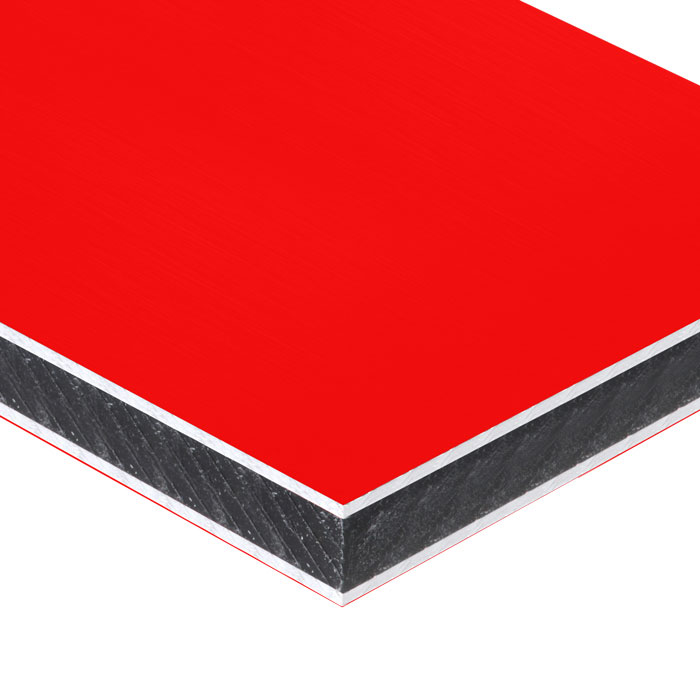

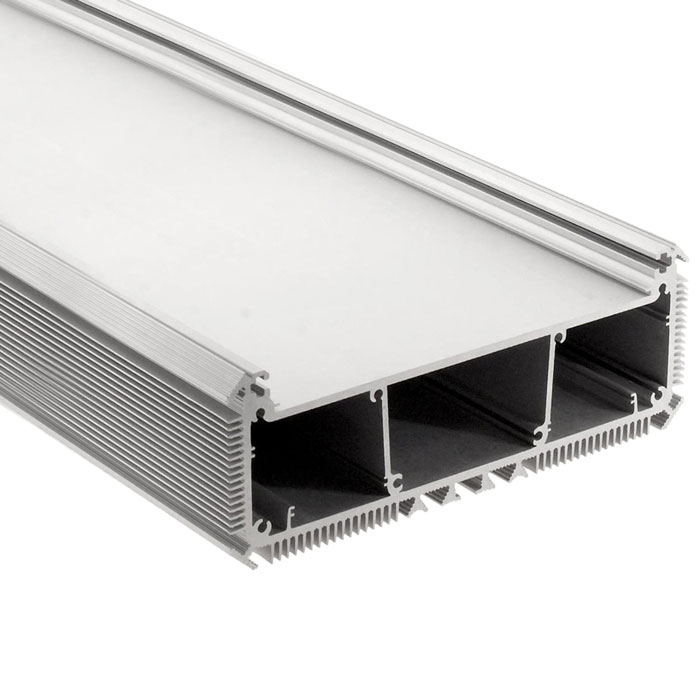

for cutting and milling aluminium materials (e.g. aluminium profiles), DIBOND?-type panels, ALUCOBOND?, etc.an alternative milling cutter also suitable for machining plasticsthe special blade geometry and spiral arrangement allow for easy chip evacuation and a smooth surface finish on the workpieceused on high-performance CNC machining centres with mechanical feedoperating parameters for ALUMINIUM PROFILES: 16,000-24,000 RPM, feed rate 2-10 m/minoperating parameters for ALUMINIUM: 16,000-24,000 RPM, feed rate 2-10 m/min Features - benefits

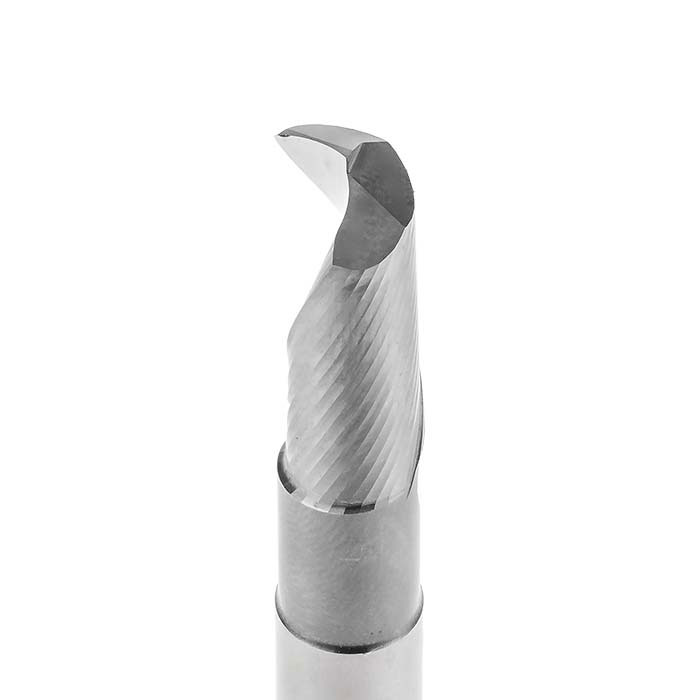

solid carbide end mills body and cutting edge made from cemented carbidecutters available in diameters of 3-12 mm, with varying overall lengths and cutting edge lengthsSingle-edged cutter - positive geometry, with a recessed area behind the cutting edge, featuring a polished chip groove to prevent material build-upthe cutting edge can be coated with performance-enhancing coatings, significantly extending the tool?s service life
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

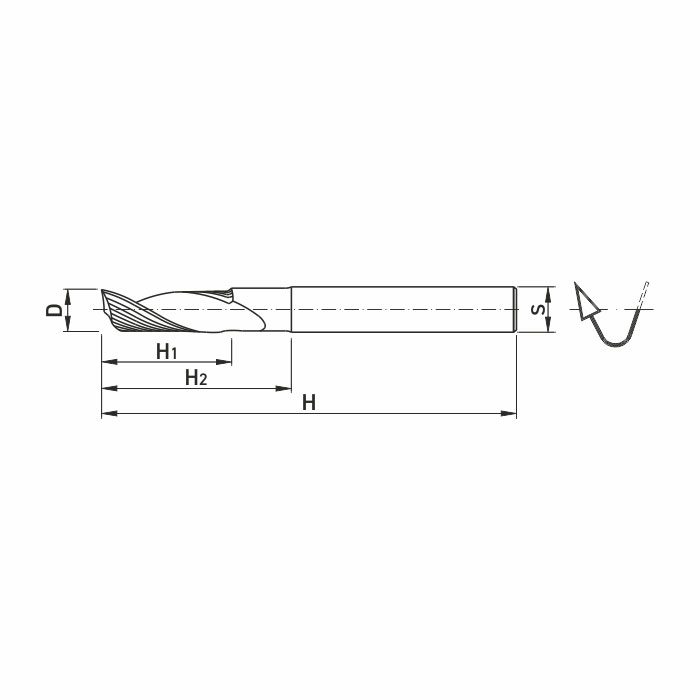

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H2 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04 | 15 | 035 | 080 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339247 | |||
| - available | 05 | 08 | 040 | 077 | 06 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339254 | ||
| 05 | 20 | 045 | 090 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339100 | |||
| - available | 05 | 30 | 050 | 100 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339117 | ||
| - available | 06 | 10 | 040 | 077 | 06 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339261 | ||
| - available | 06 | 20 | 030 | 090 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339124 | ||
| 06 | 35 | 072 | 110 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339278 | |||
| - available | 08 | 10 | 040 | 080 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339285 | ||
| 10 | 15 | 065 | 110 | 10 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339292 | |||
| - available | 10 | 20 | 070 | 100 | 10 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339315 | ||
| 12 | 20 | 070 | 100 | 12 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855339308 | |||
| - available | 05 | 15 | 035 | 080 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855340755 | ||
| 05 | 35 | 055 | 090 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855340748 | |||
| 08 | 16 | 040 | 070 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855340762 | |||
| - available | 08 | 16 | 070 | 100 | 08 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855340779 | ||
| 16 | 30 | 050 | 100 | 16 | 1 | PP-pozytyw/prawe | 30 stopni | szt | 5900855340786 |
Catalogue: - to order
