Product card

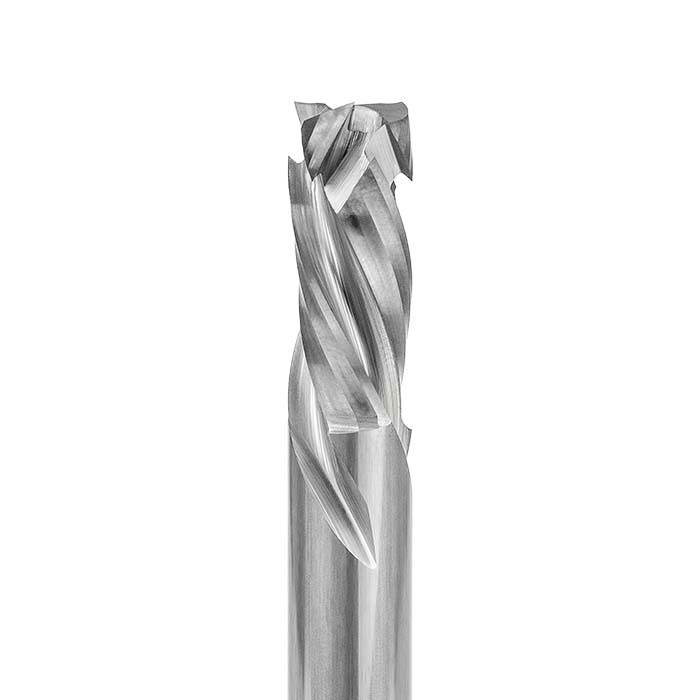

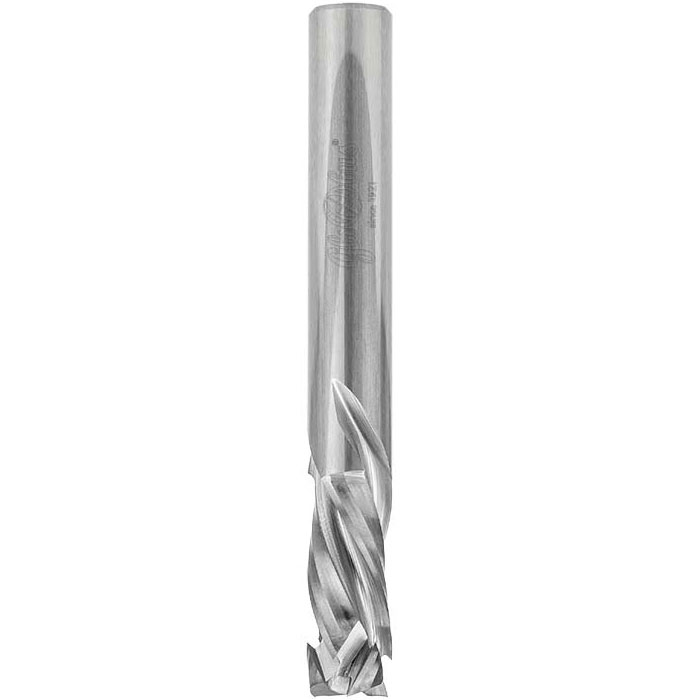

Z3+3 compression solid carbide finishing cutters - for machining wood-based materials
LV430
New
Application

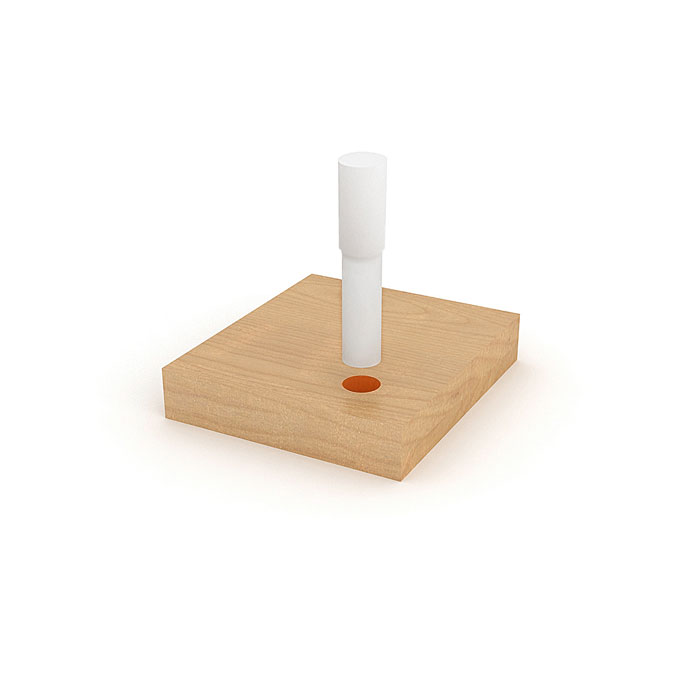

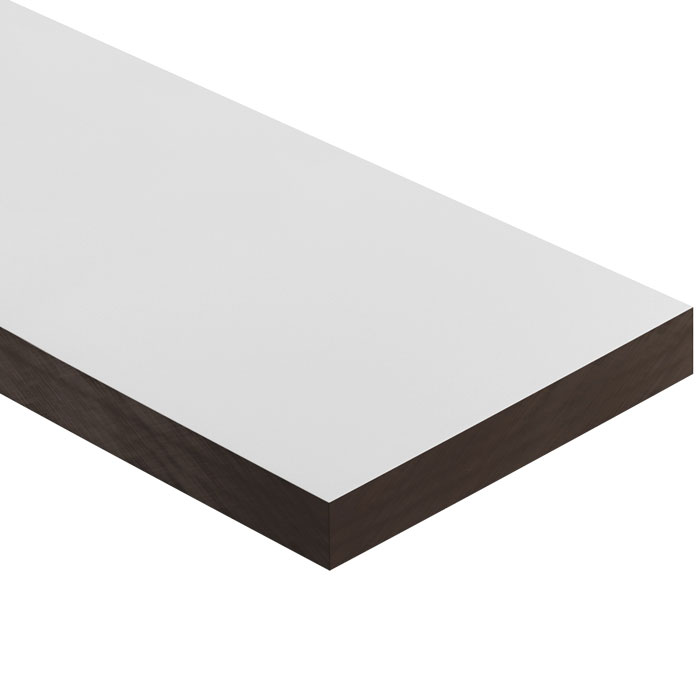

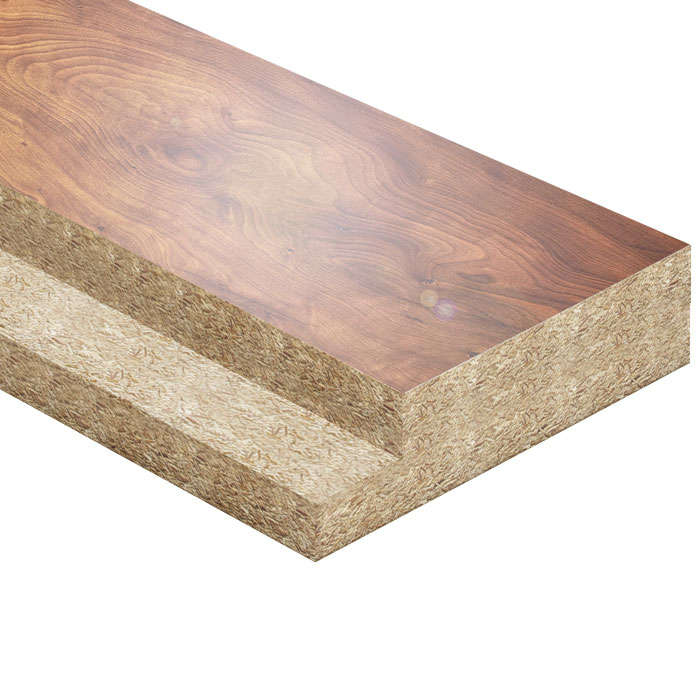

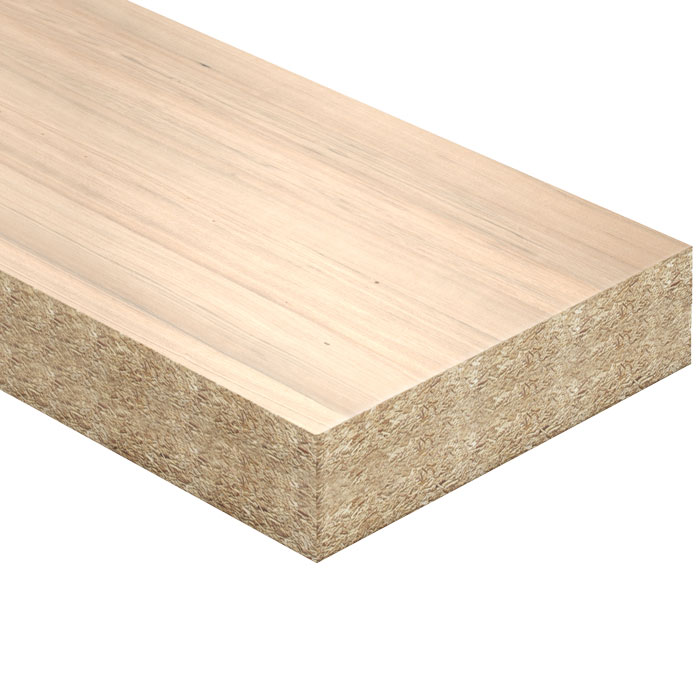

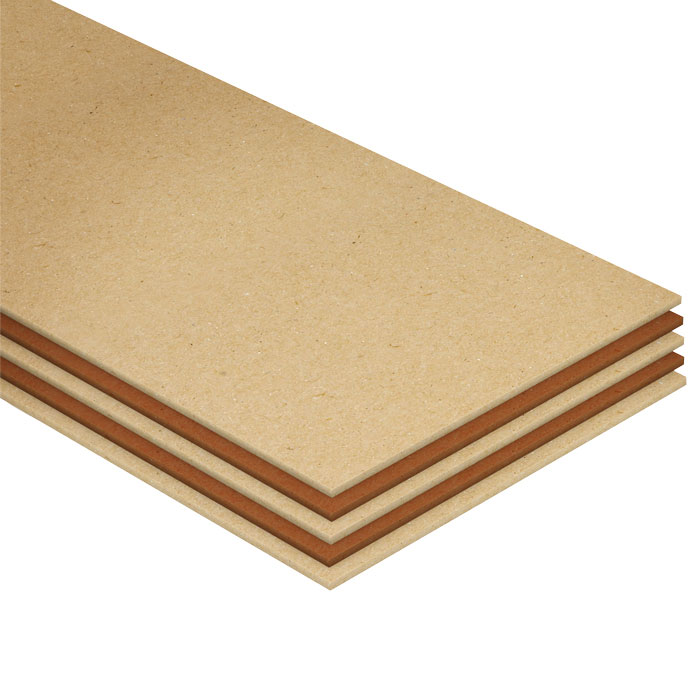

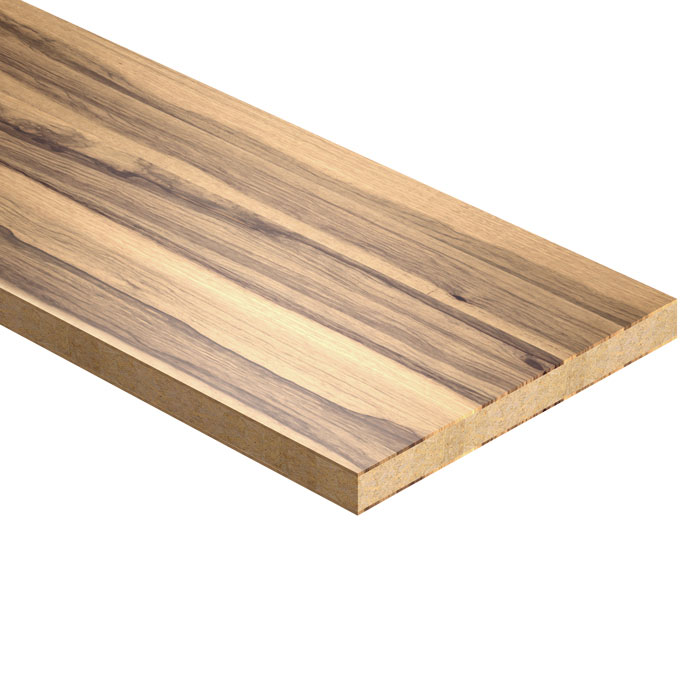

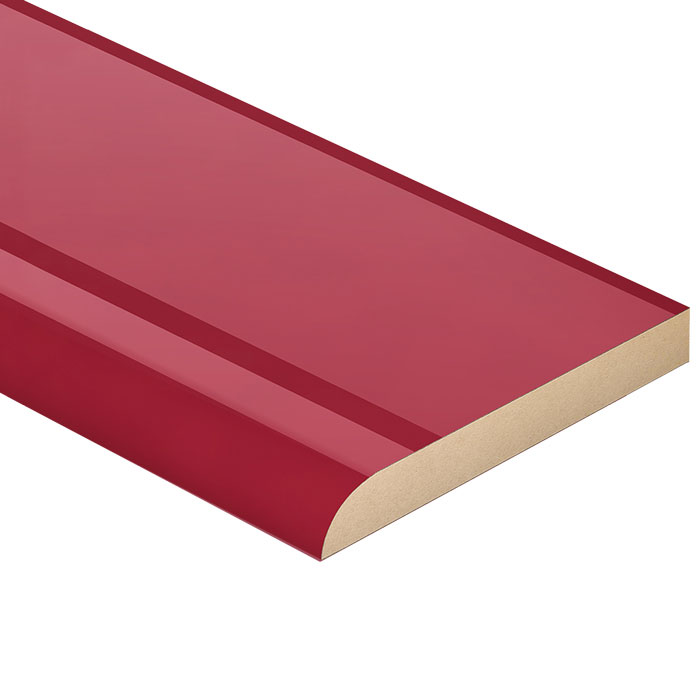

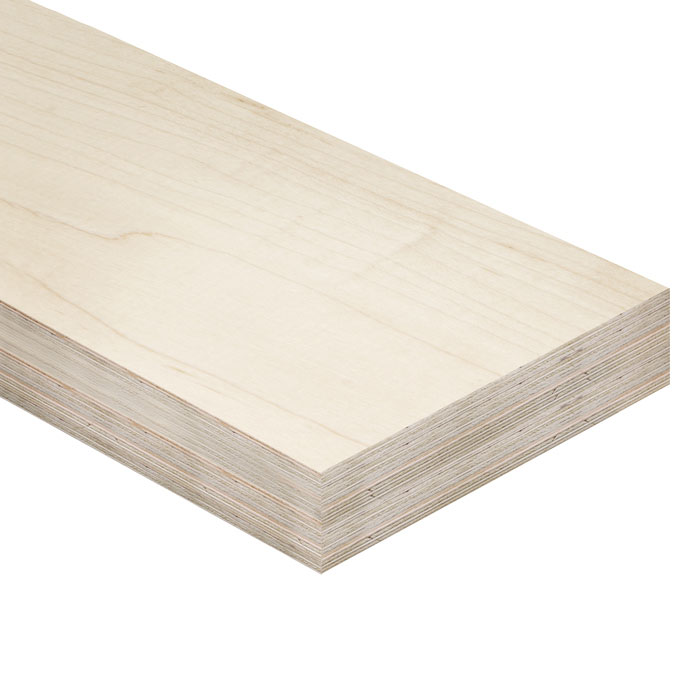

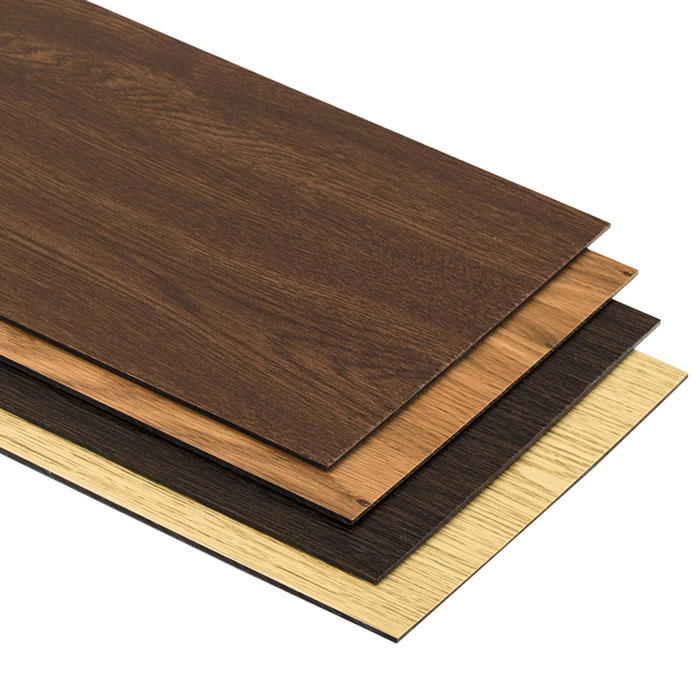

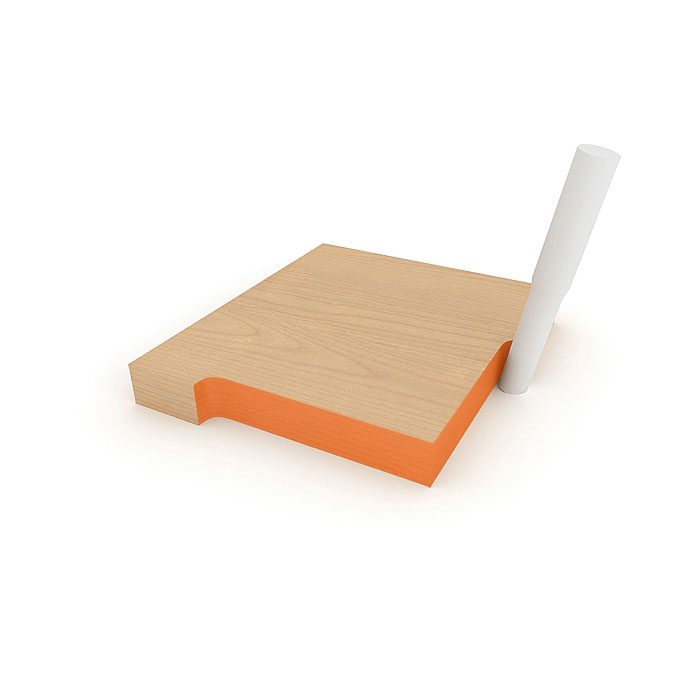

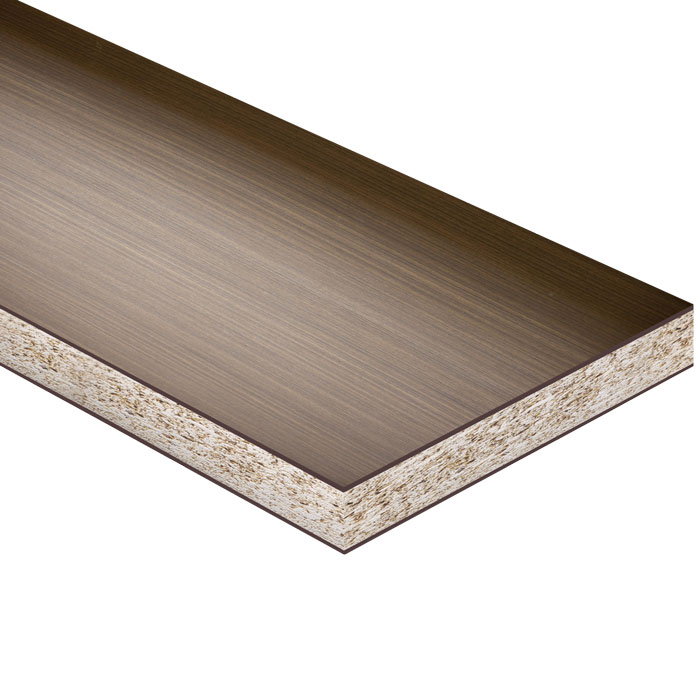

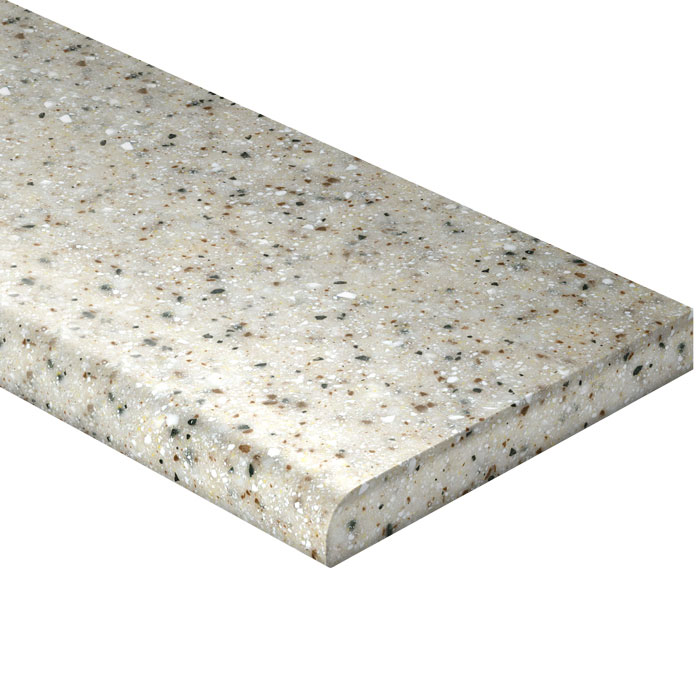

for cutting and milling in wood-based materials, solid wood, plastic and aluminiumthe special blade geometry and spiral arrangement allow for easy chip evacuation and a smooth surface finish on the workpieceused on high-performance CNC machining centres with mechanical feedoperating parameters for FURNITURE BOARDS: 18,000-24,000 RPM, feed rate 10-25 m/minoperating parameters for LAMINATES: 18,000-24,000 RPM, feed rate 10-25 m/min Features - benefits

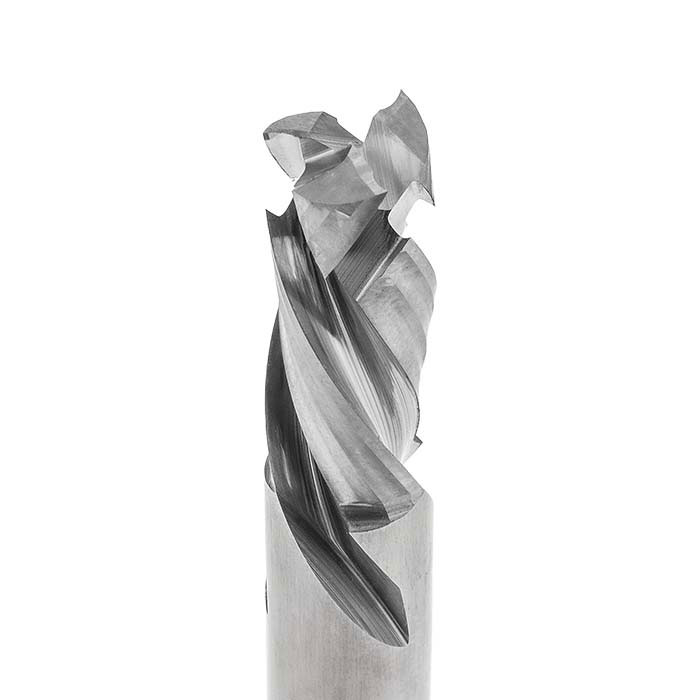

solid carbide end mills - body and cutting edge made from cemented carbidecutters available in diameters of 10-16 mm, with varying overall lengths and cutting edge lengths3+3 cutting edges - 3 positive spirals and 3 negative spiralsthe cutting edge can be coated with performance-enhancing coatings, significantly extending the tool?s service life
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

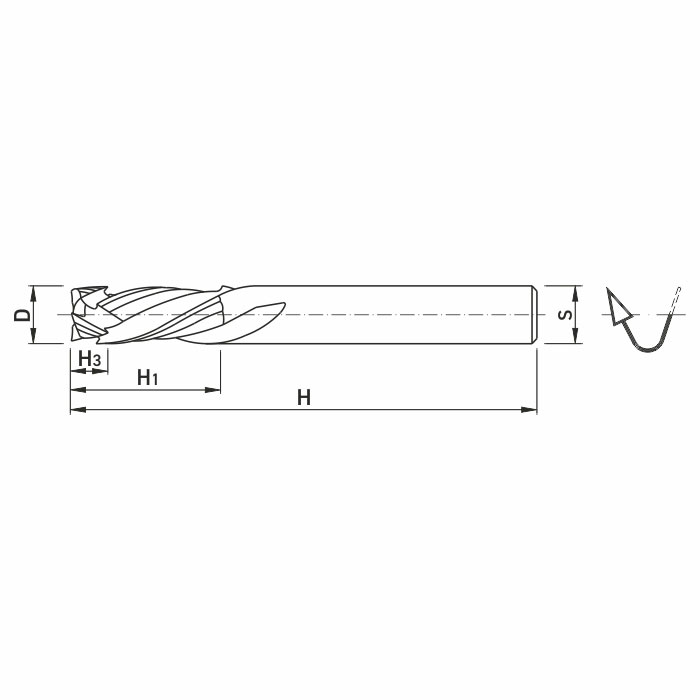

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H3 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 25 | 07 | 080 | 10 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855396783 | |||
| 10 | 35 | 07 | 080 | 10 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401241 | |||
| 12 | 25 | 07 | 080 | 12 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401258 | |||
| 12 | 35 | 07 | 080 | 12 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401265 | |||
| 12 | 42 | 07 | 090 | 12 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401272 | |||
| 16 | 35 | 07 | 080 | 16 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401289 | |||
| 16 | 42 | 07 | 090 | 16 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401296 | |||
| 16 | 50 | 07 | 100 | 16 | 3+3 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401302 |
Catalogue: - to order
