Product card

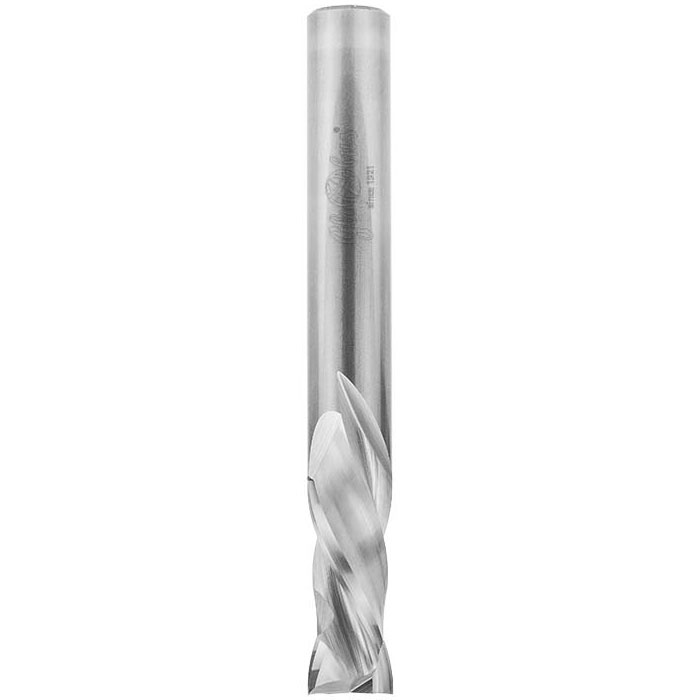

Z2+2 compression solid carbide finishing cutters - for machining wood-based materials
LV420
New
Application

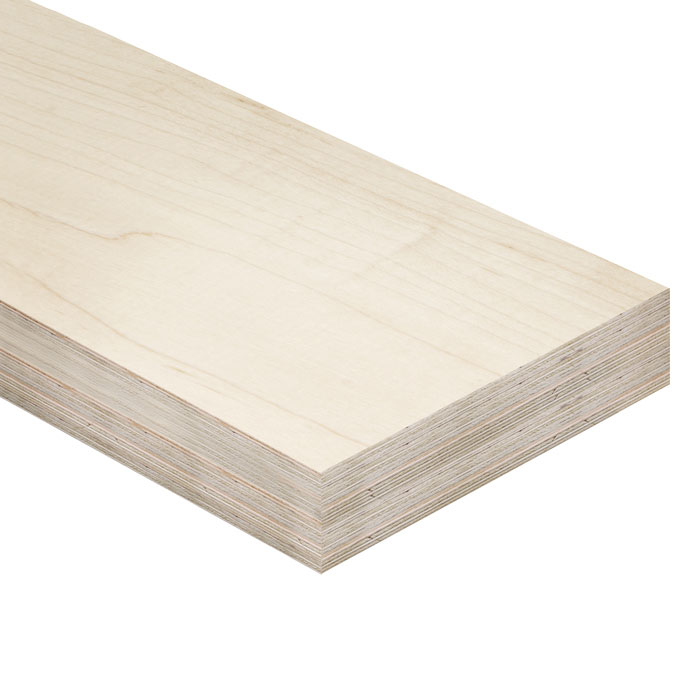

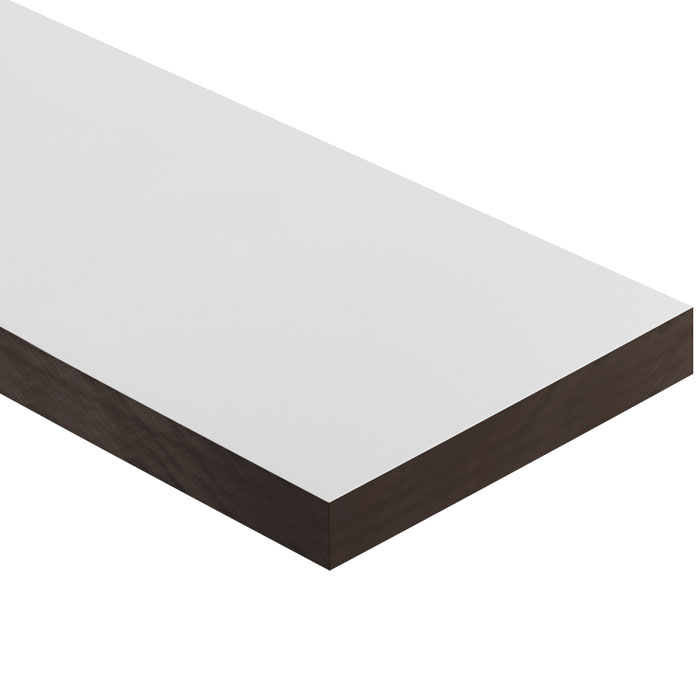

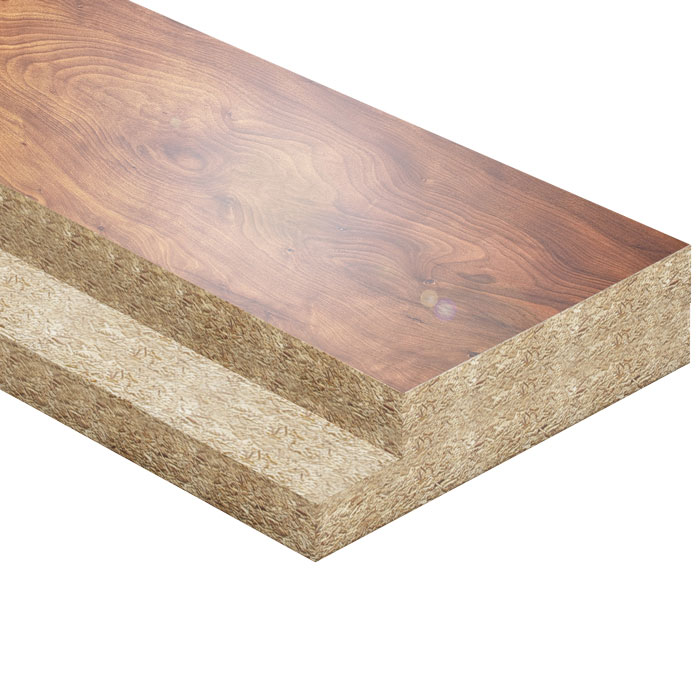

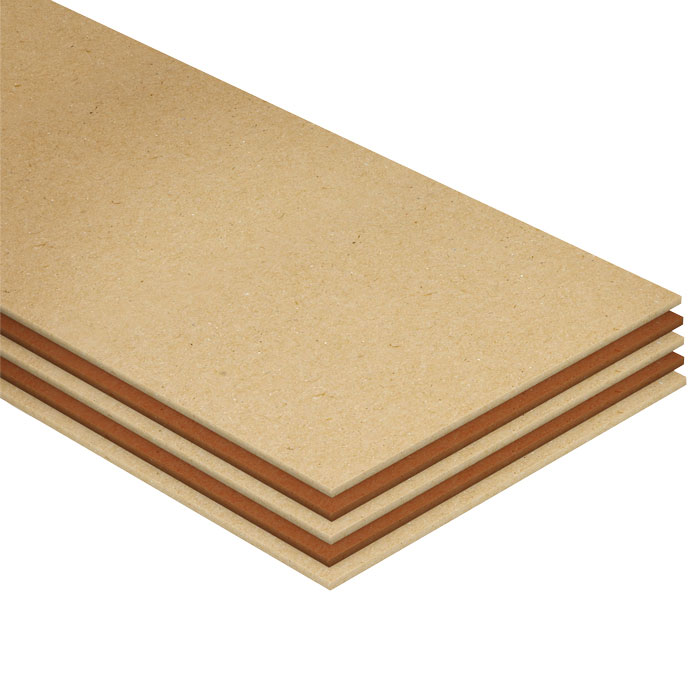

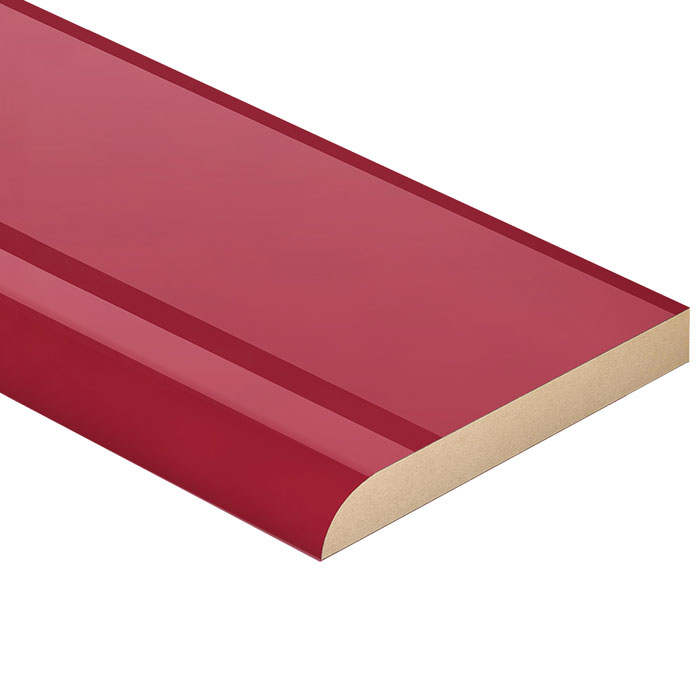

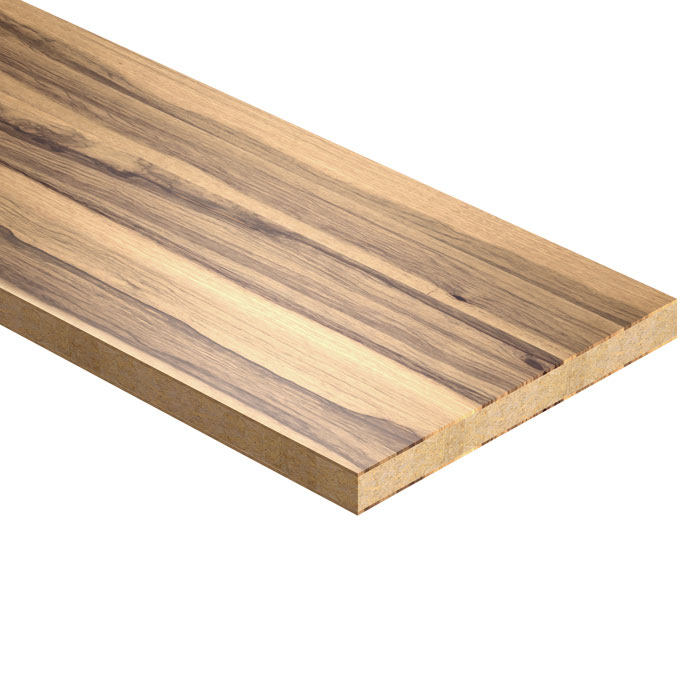

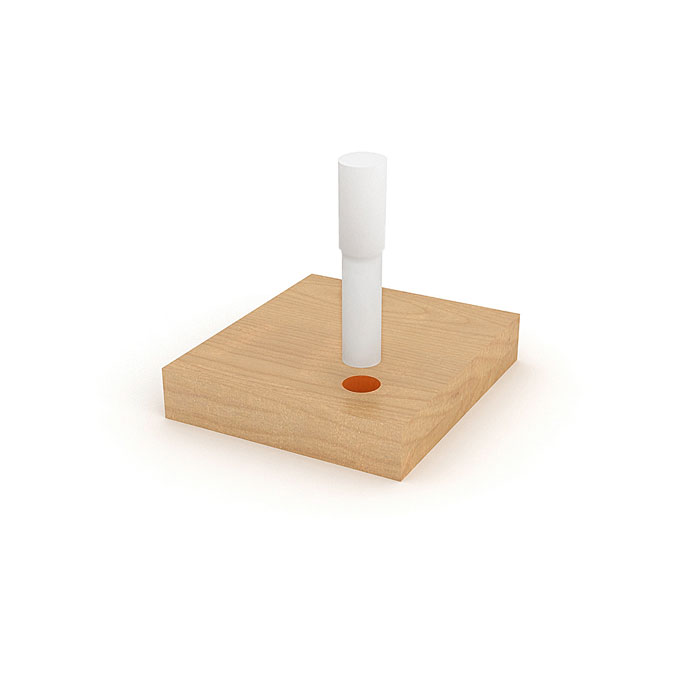

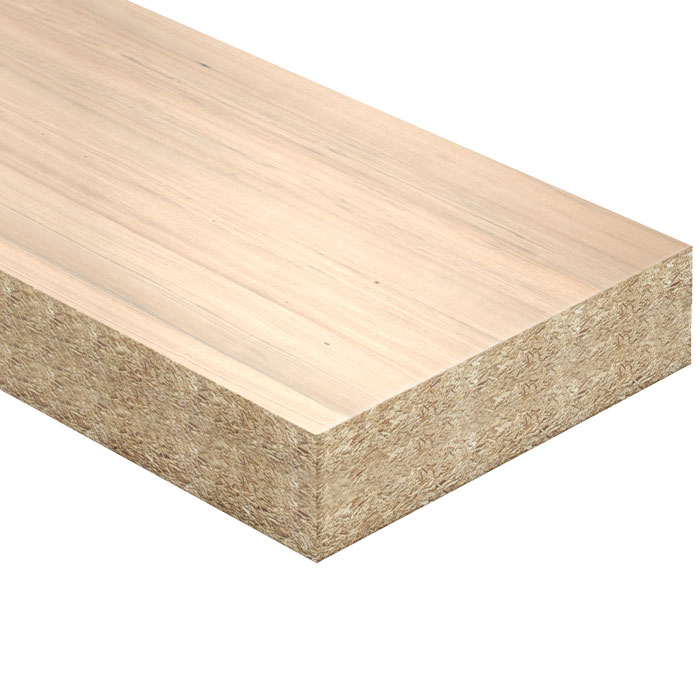

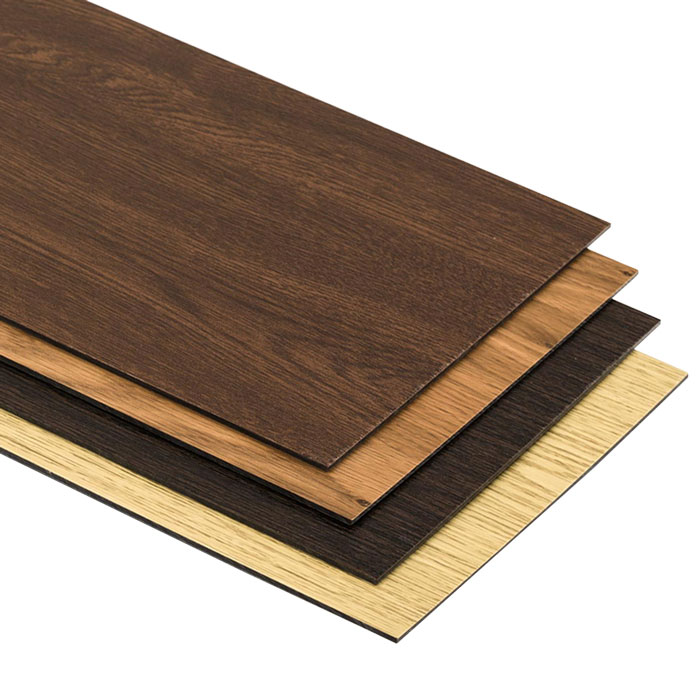

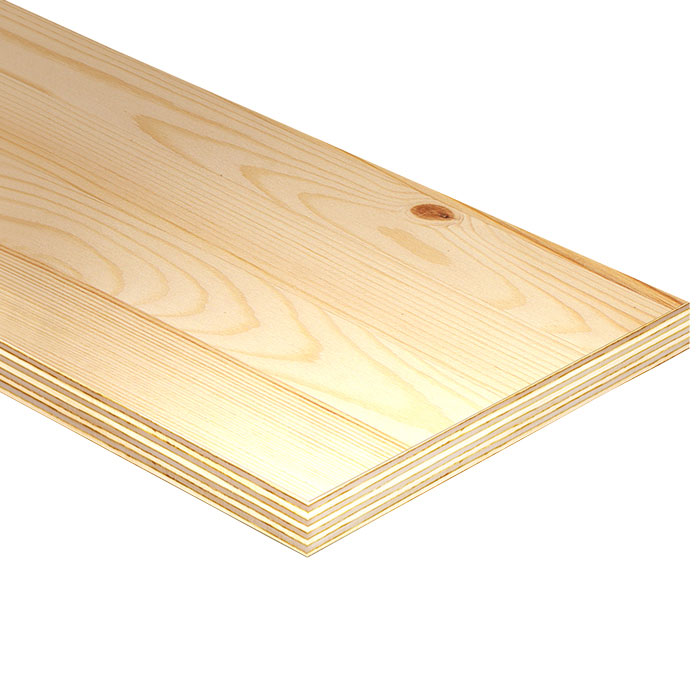

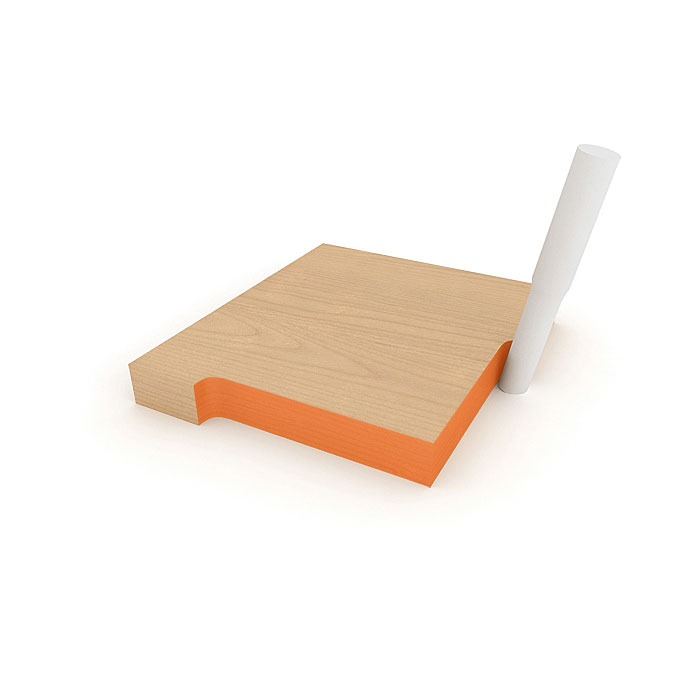

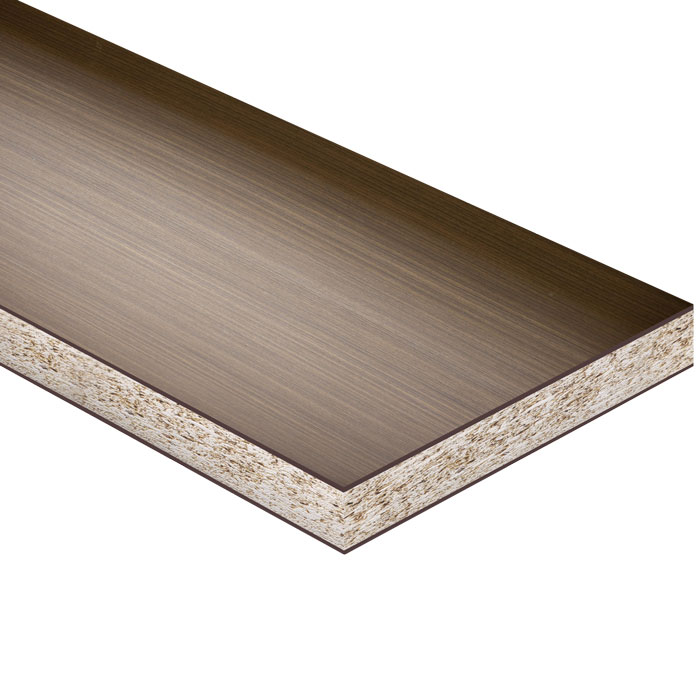

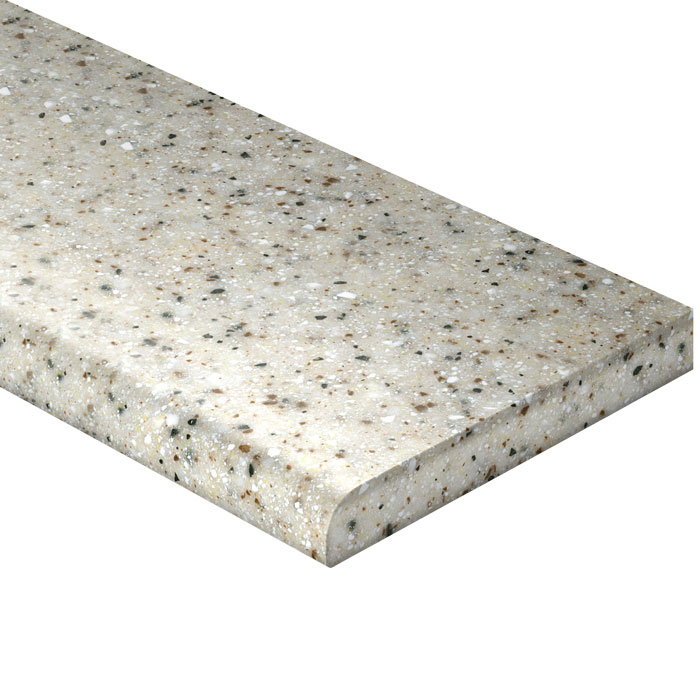

for cutting and milling in wood-based materials, solid wood, plastic and aluminiumthe special blade geometry and spiral arrangement allow for easy chip evacuation and a smooth surface finish on the workpieceused on high-performance CNC machining centres with mechanical feedoperating parameters for FURNITURE BOARDS: 18,000-24,000 RPM, feed rate 6-16 m/minoperating parameters for LAMINATES: 18,000-24,000 RPM, feed rate 6-16 m/min Features - benefits

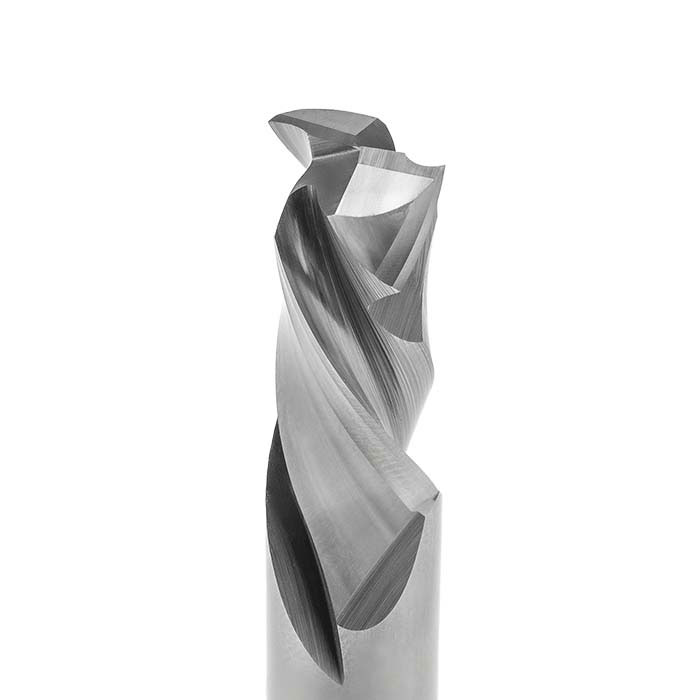

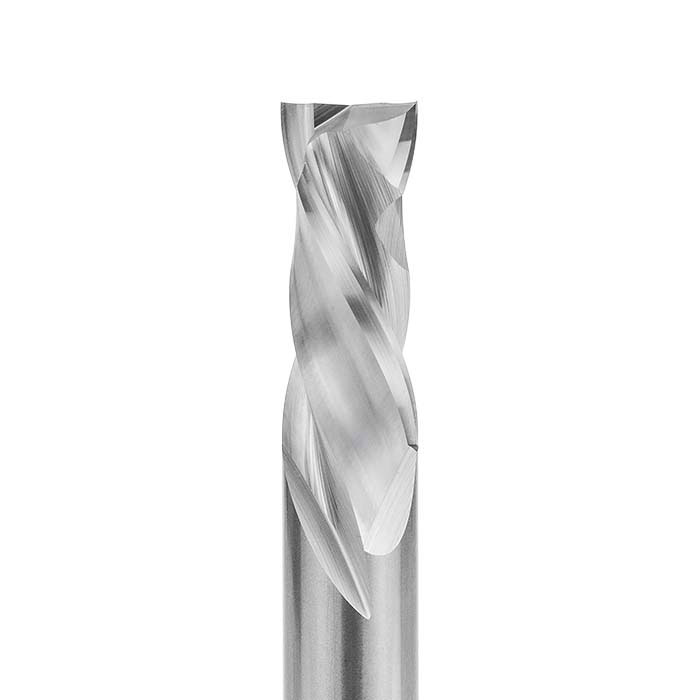

solid carbide end mills - body and cutting edge made from cemented carbidecutters available in diameters of 6-20 mm, with varying overall lengths and cutting edge lengths2+2 cutting edges - 2 positive spirals and 2 negative spiralsthe cutting edge can be coated with performance-enhancing coatings, significantly extending the tool?s service life
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

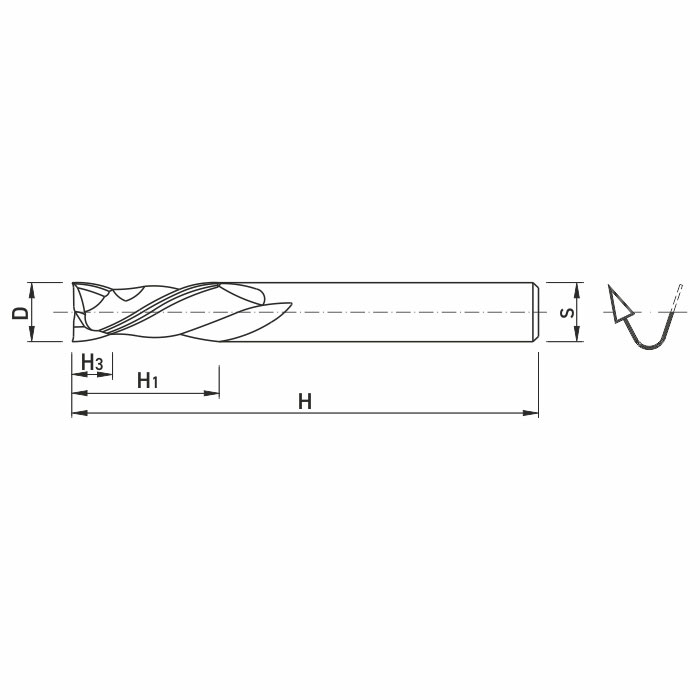

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H3 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06 | 25 | 05 | 070 | 06 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401159 | |||
| 08 | 25 | 05 | 070 | 08 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401166 | |||
| 08 | 35 | 05 | 080 | 08 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401173 | |||
| - available | 10 | 25 | 07 | 080 | 10 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855396776 | ||
| 10 | 35 | 07 | 080 | 10 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401180 | |||
| 12 | 25 | 07 | 080 | 12 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401197 | |||
| - available | 12 | 35 | 07 | 080 | 12 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855182881 | ||
| 16 | 35 | 07 | 080 | 16 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401203 | |||
| 16 | 42 | 07 | 090 | 16 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401210 | |||
| 20 | 35 | 07 | 080 | 20 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401227 | |||
| 20 | 42 | 07 | 090 | 20 | 2+2 | PPN-prawe/pozytyw-negatyw | 20 stopni | szt | 5900855401234 |
Catalogue: - to order
