Product card

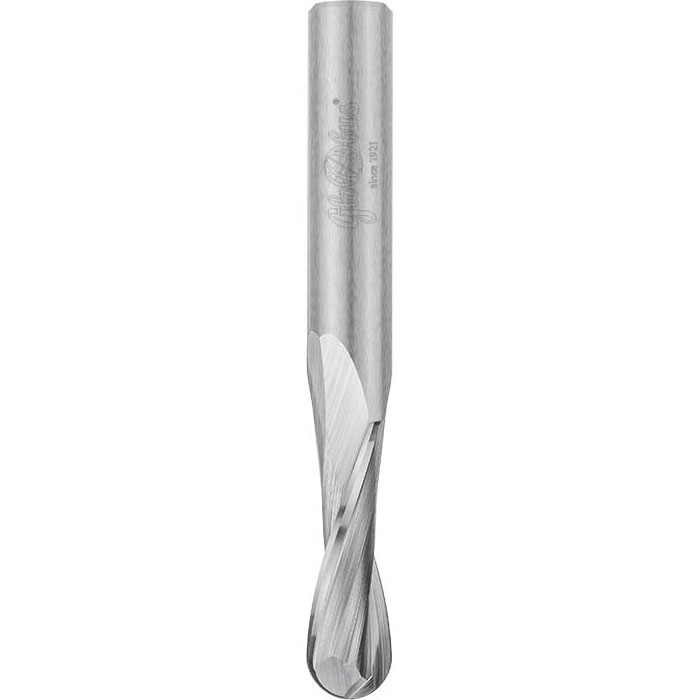

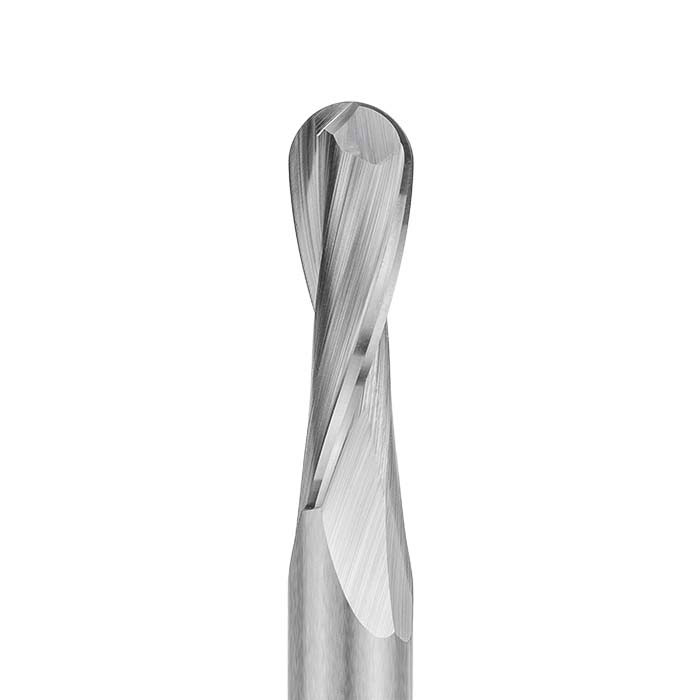

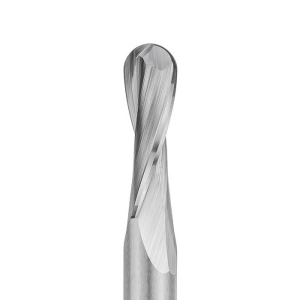

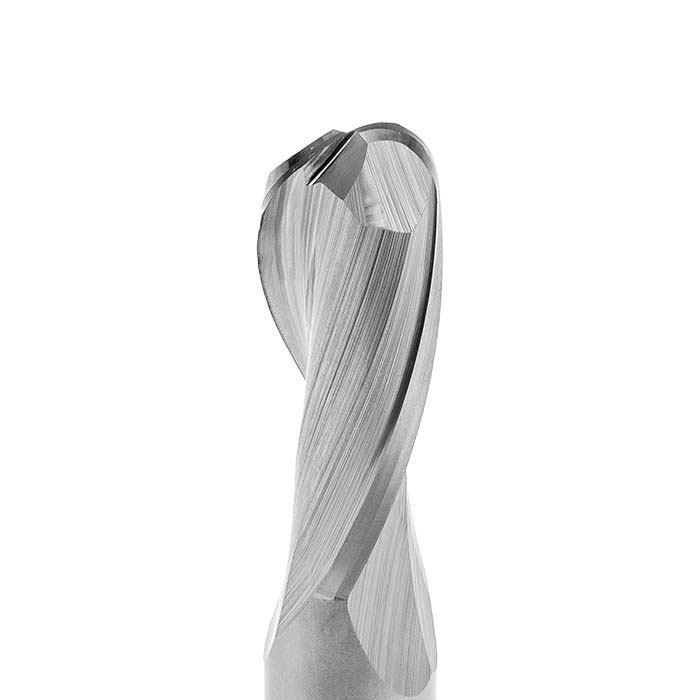

Z2 solid carbide finishing cutters with a spherical end - for machining wood and wood-based materials.
LV320
New
Application

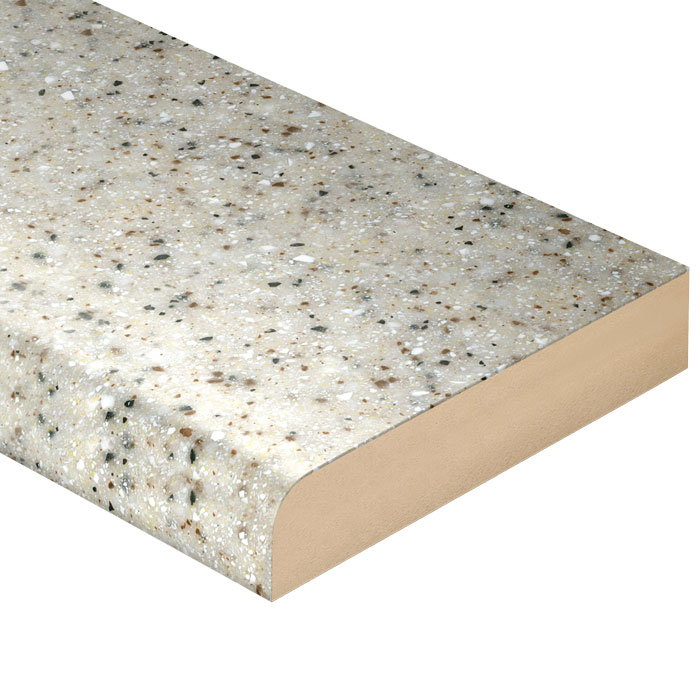

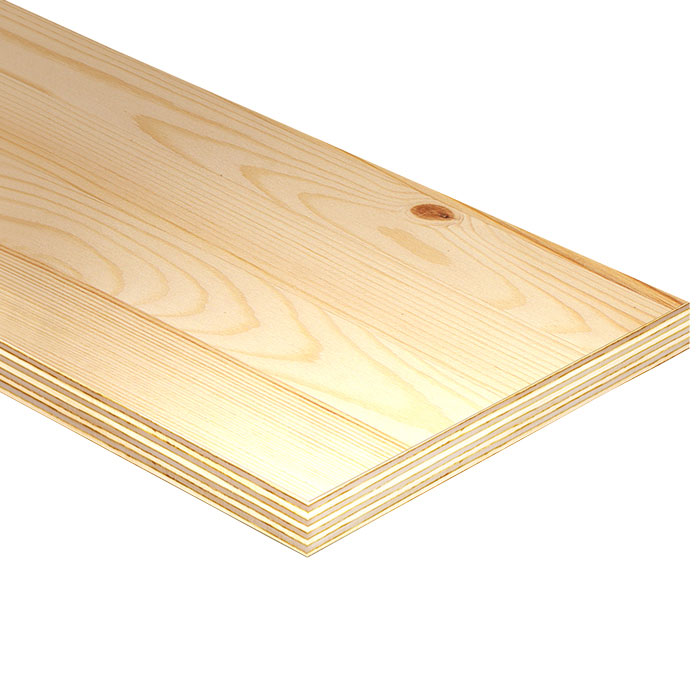

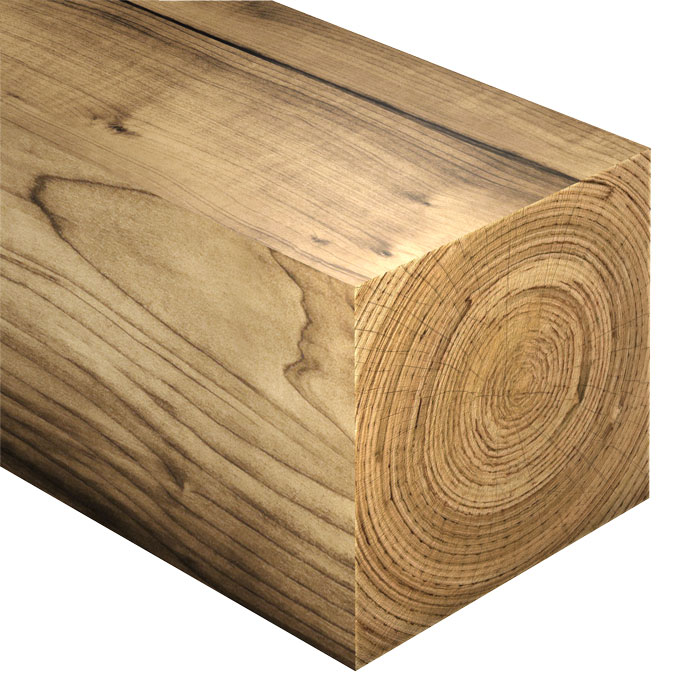

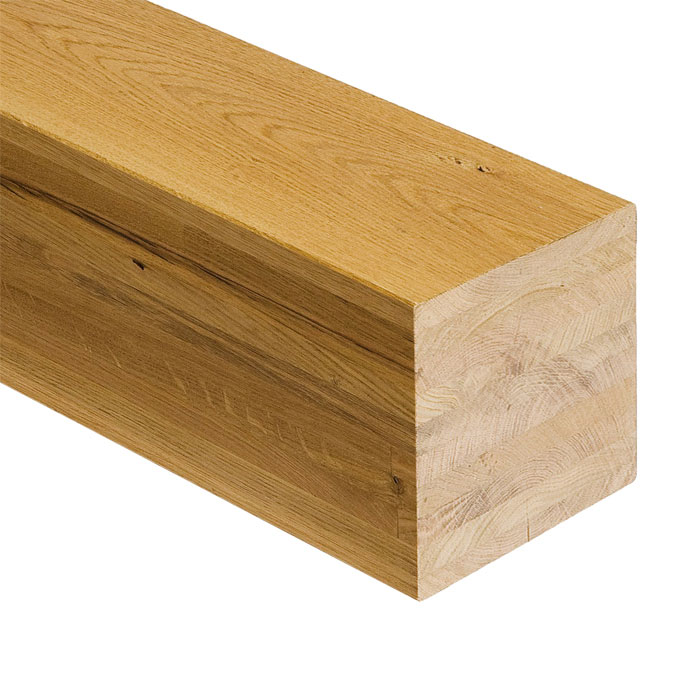

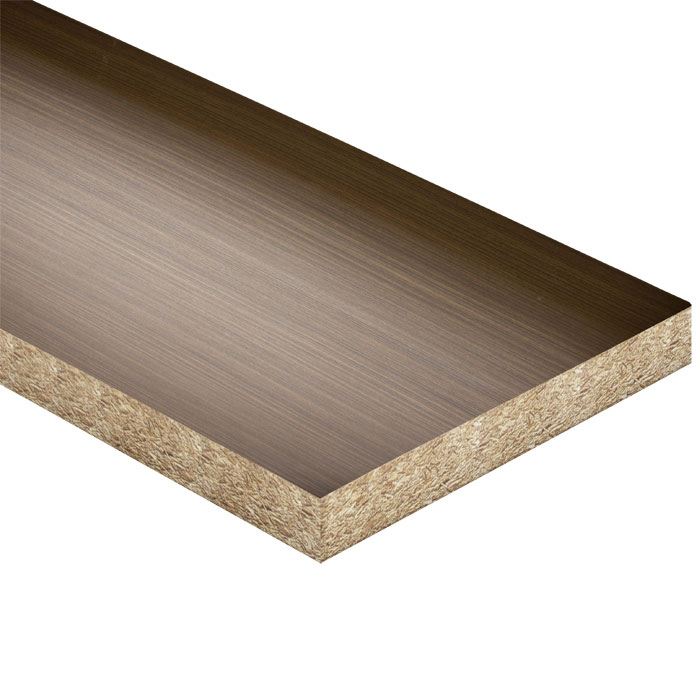

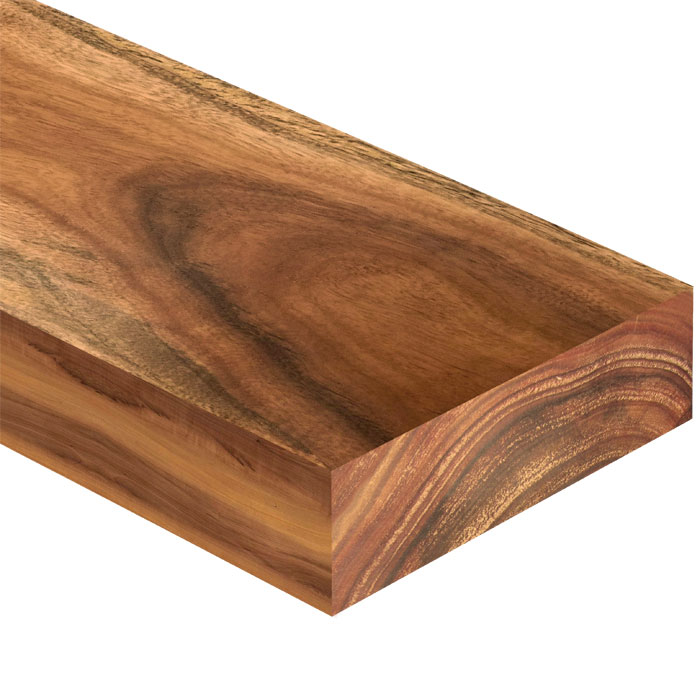

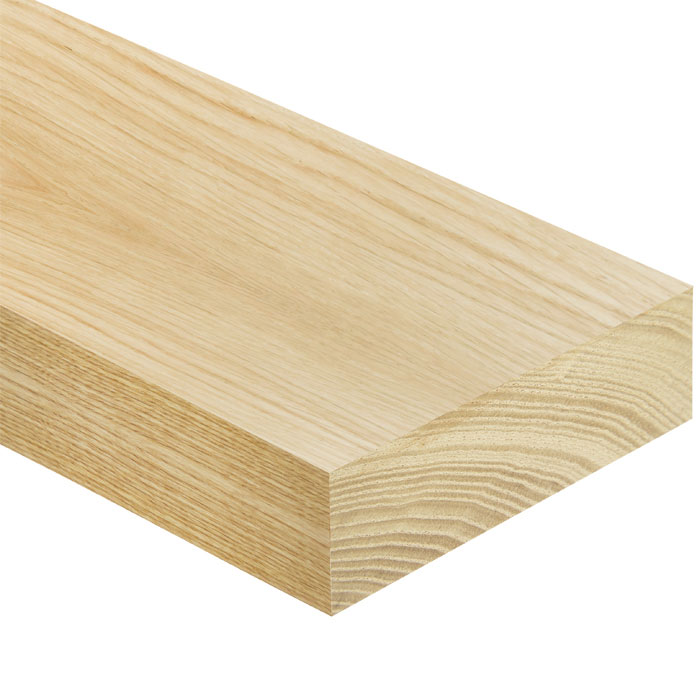

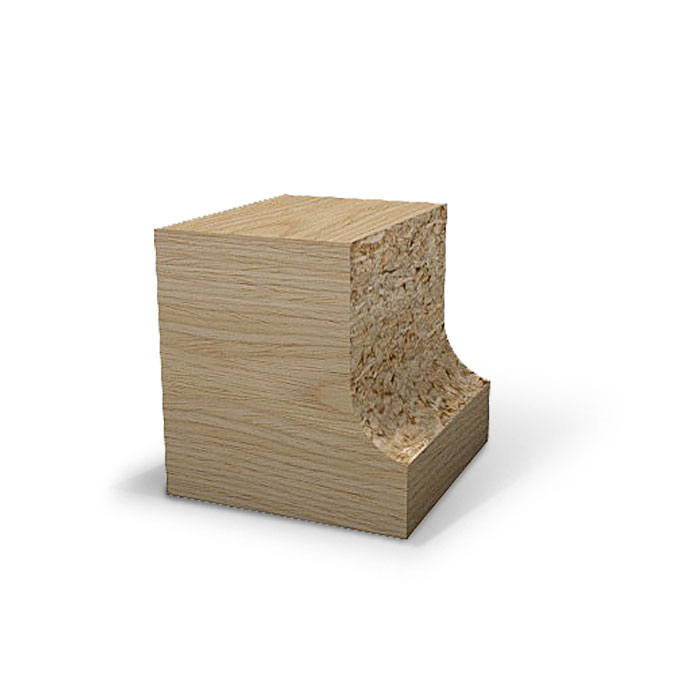

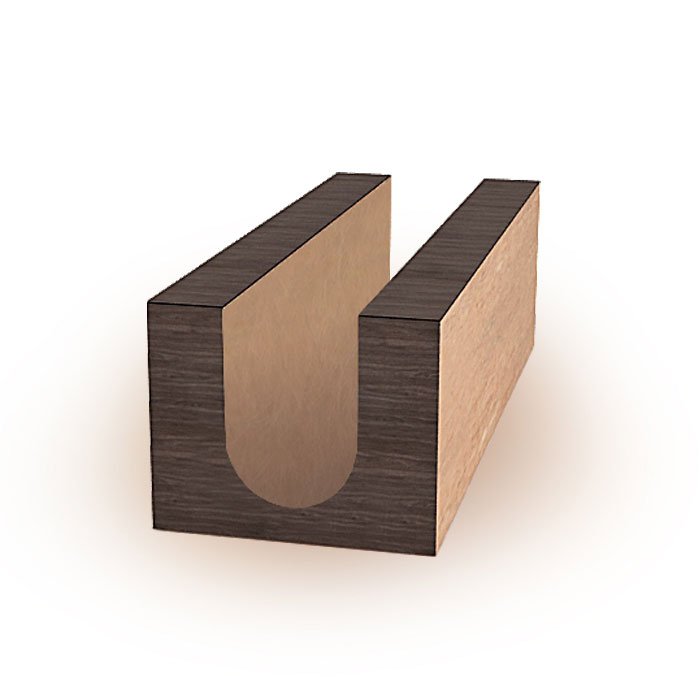

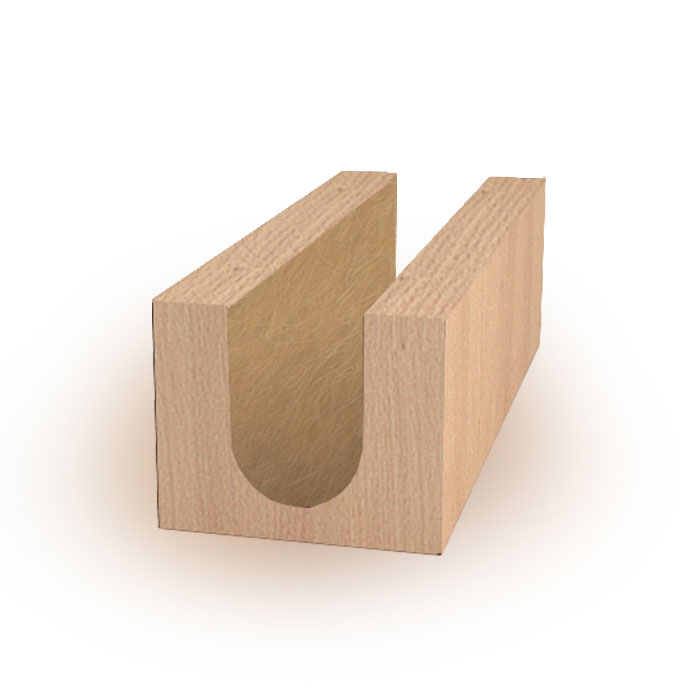

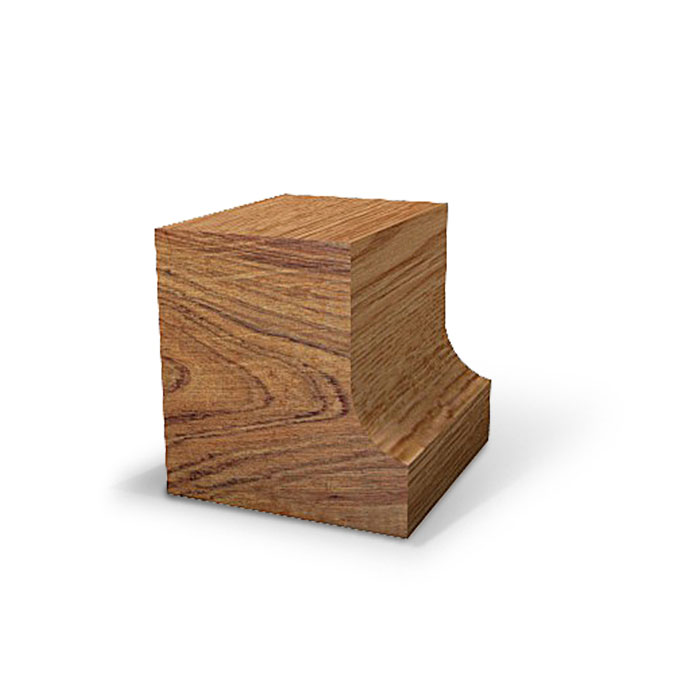

2 finishing edges, positive ball nose, upward chip ejection, clockwise rotationfor cutting and milling in solid wood and wood-based materialsused on high-performance CNC machining centres with mechanical feed, small milling plotters and top-spindle milling machinesoperating parameters in WOOD: 18,000-24,000 RPM, feed rate 2-10 m/minoperating parameters in FURNITURE BOARD: 18,000-24,000 RPM, feed rate 2-10 m/min Features - benefits
solid carbide end mills - body and cutting edge made from cemented carbidecutters available in diameters of 3-25 mm, with various overall lengths and cutting edge lengthsexcellent surface finish, the cutting edge can be coated with a PVD coating, which significantly increases the tool?s service lifeavailable versions: Right-Hand (Positive)
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

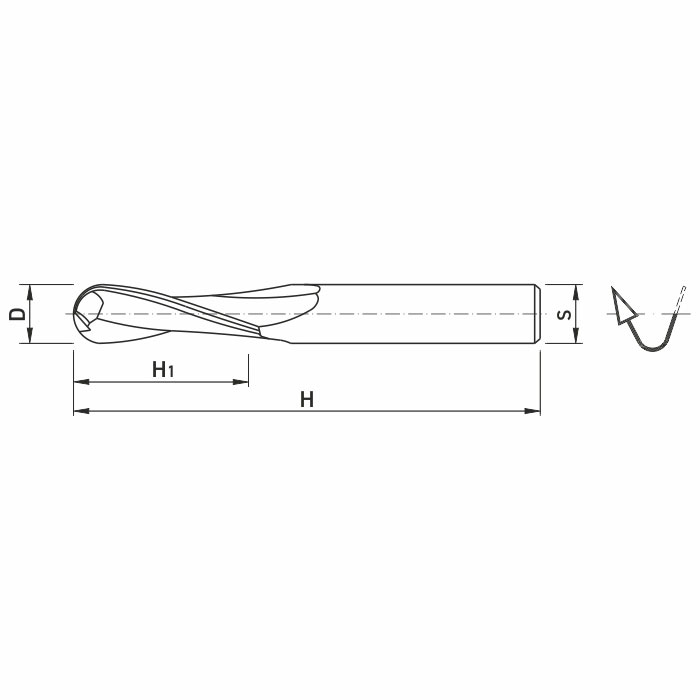

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | R [mm] | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03 | 10 | 050 | 03 | 2 | R=1,5 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400459 | |||
| 04 | 12 | 050 | 04 | 2 | R=2 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400466 | |||
| 05 | 15 | 060 | 05 | 2 | R=2,5 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400473 | |||
| 06 | 22 | 070 | 06 | 2 | R=3 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400480 | |||
| 08 | 22 | 070 | 08 | 2 | R=4 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400497 | |||
| 10 | 42 | 090 | 10 | 2 | R=5 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400503 | |||
| 12 | 32 | 080 | 12 | 2 | R=6 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400510 | |||
| 12 | 42 | 090 | 12 | 2 | R=6 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400527 | |||
| 16 | 52 | 100 | 16 | 2 | R=8 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400534 | |||
| 20 | 50 | 100 | 20 | 2 | R=10 | PP-pozytyw/prawe | 20 stopni | szt | 5900855400541 |
Catalogue: - to order
