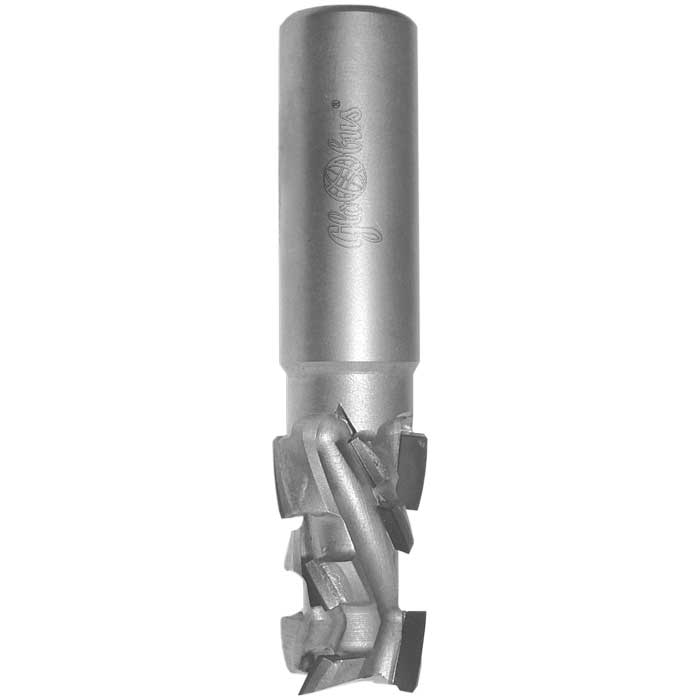

Router bits DIA QUATTRO TOP 4 Special
DI084
Application

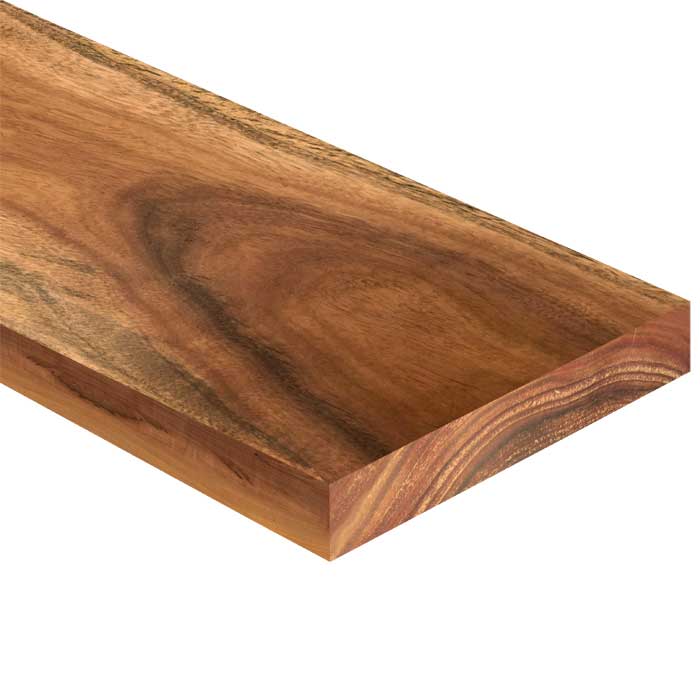

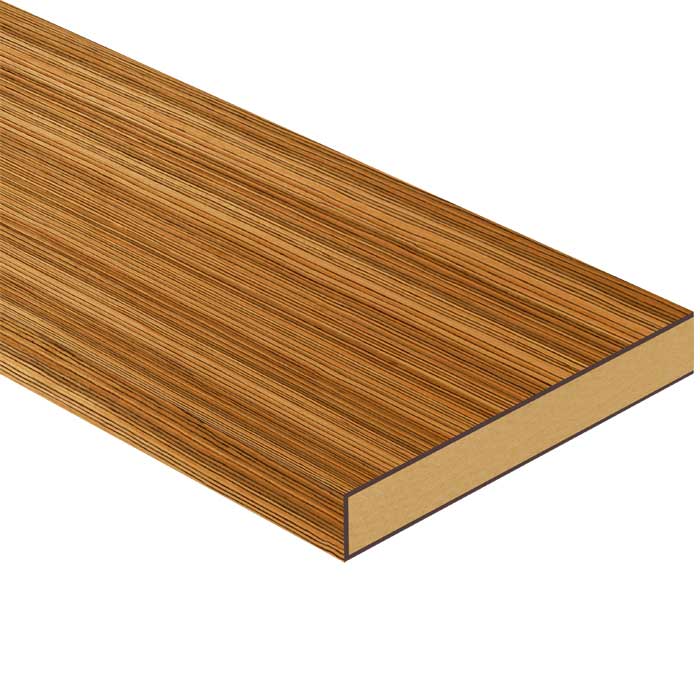

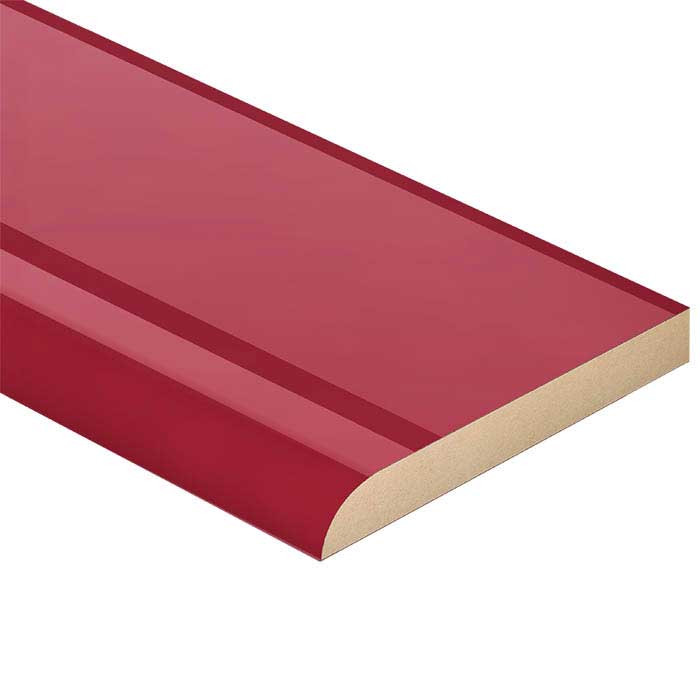

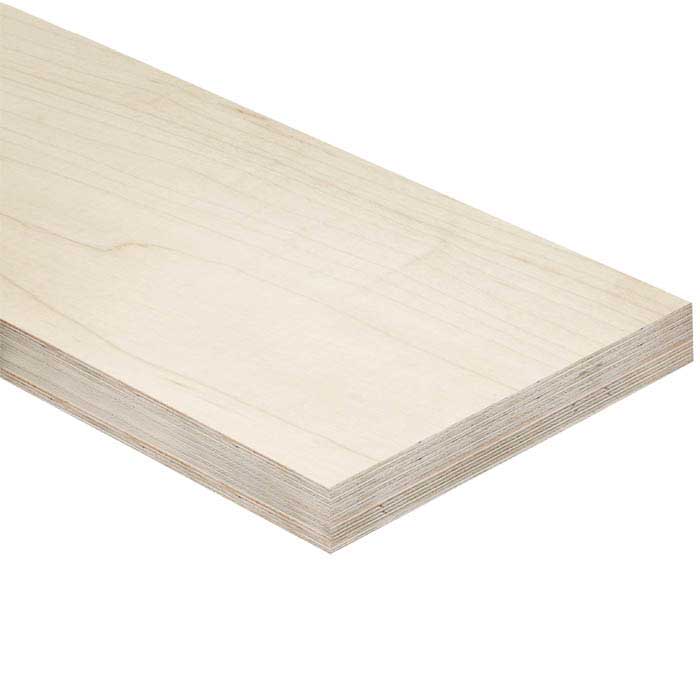

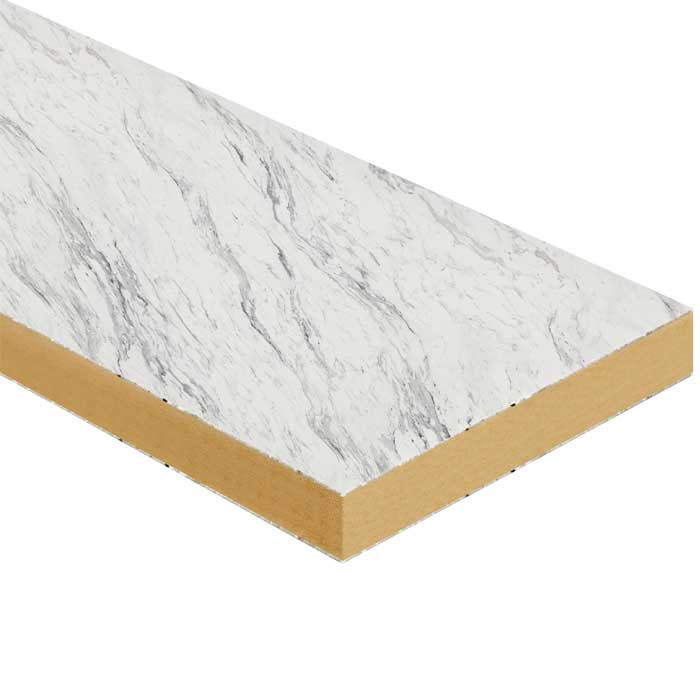

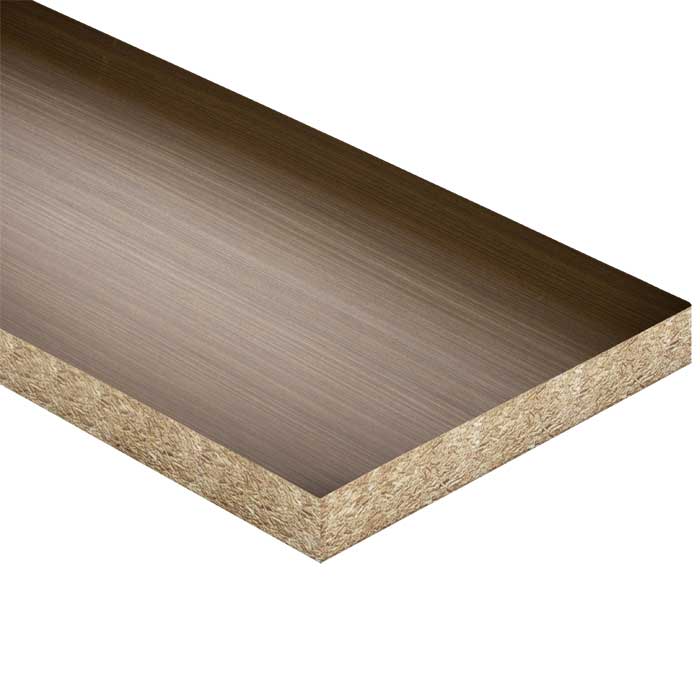

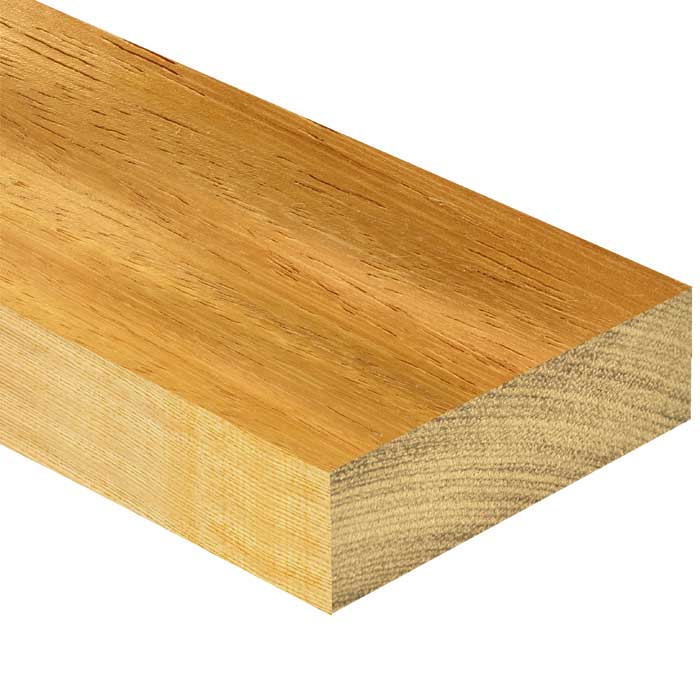

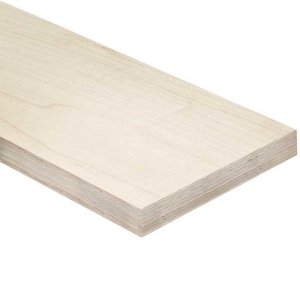

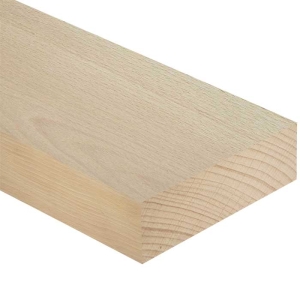

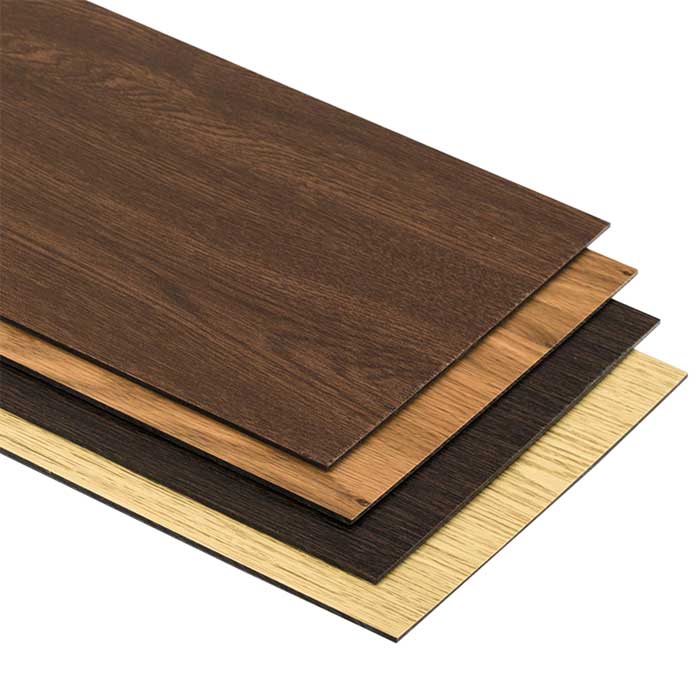

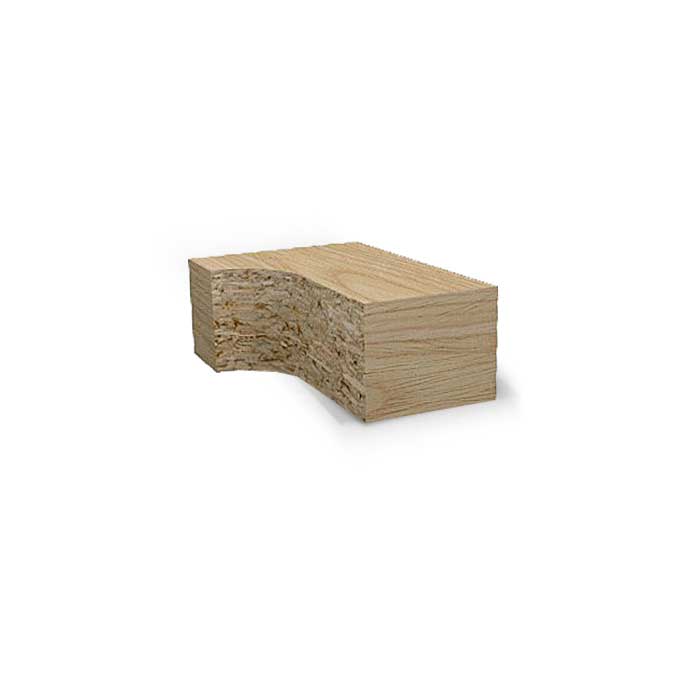

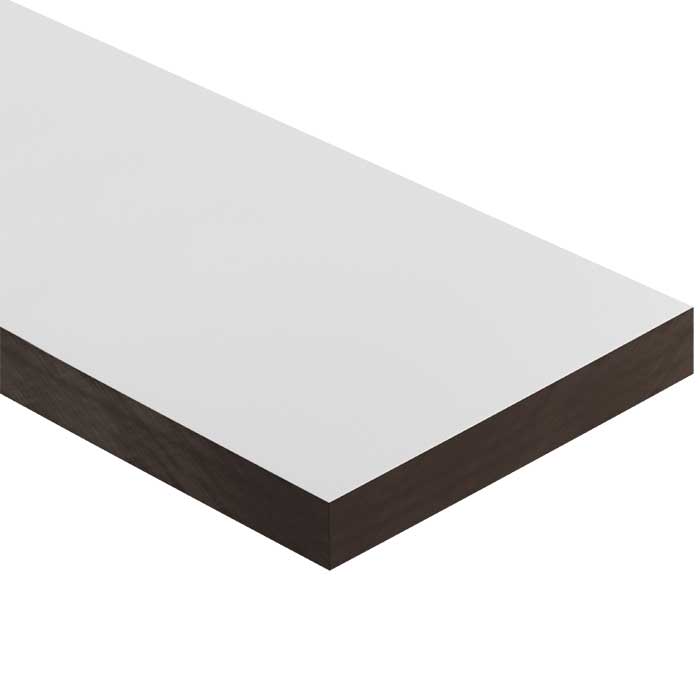

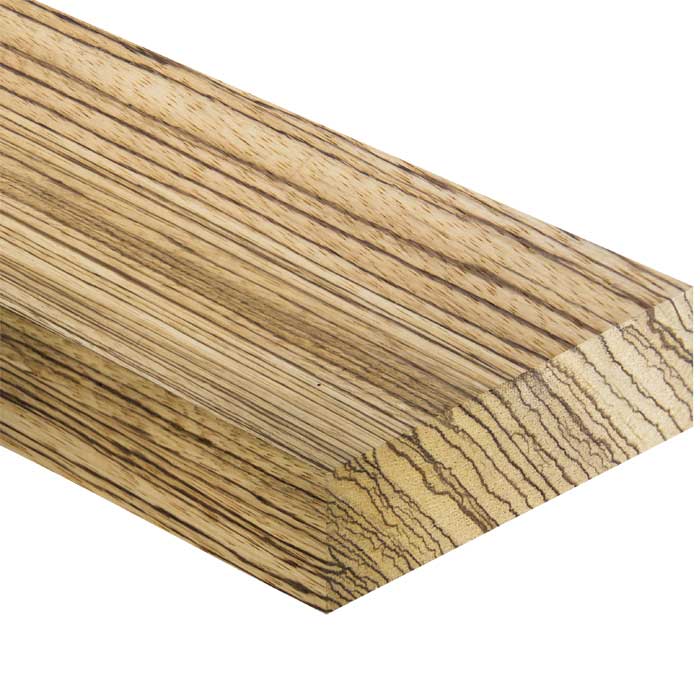

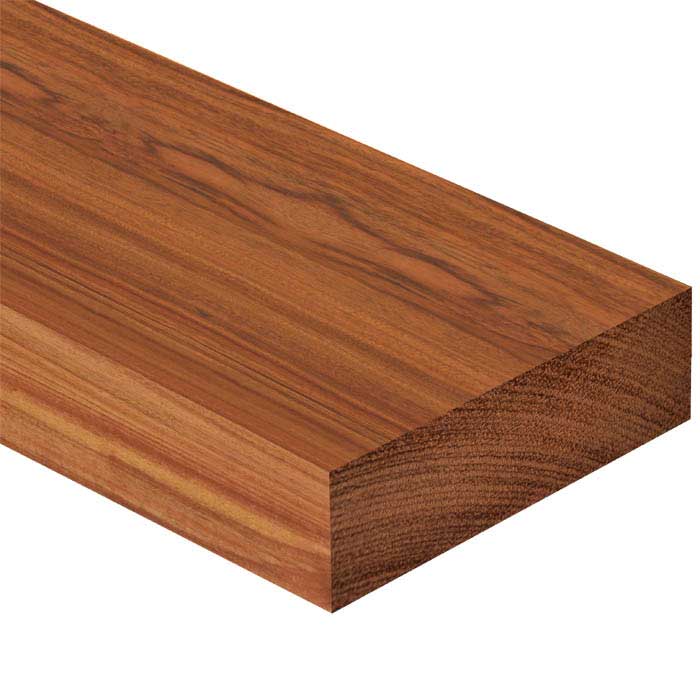

recommended for processing of panels with veneer and laminate with excellent quality of upper and lower board edgeshard domestic and exotic wood - high quality of processed surfaceswork in high load conditions and with high feed rates, for hard materials processing eg. chipboards, MDF, HDFcutting edge shape guarantees the best results in heterogenous and coated materialsadjusted for mechanical feeddrilling in material and further processing possiblecontour milling Features - benefits
advanced construction and position of PCD tips enable perfect quality for high working parametershigh efficiency -> adjusted to high load and feed rates from 5 up to 20m/mintwo special PCD precutting tips (top/bottom) enable very good quality of both edges of processed materialfour full PCD edges (arranged in 4 flutes with two pre-cutting tips)PCD tip height 4,5mmlong life -> enables: 10-12 sharpenings (depending on exploatation and processed material quality)special tips position reduces cutting resistance (perfect chip removal) and decrease the noice leveldrilling tip PCD
Product manager
Jakub Bąk
e-mail: jbak@wapienica.pl
e-mail: jbak@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

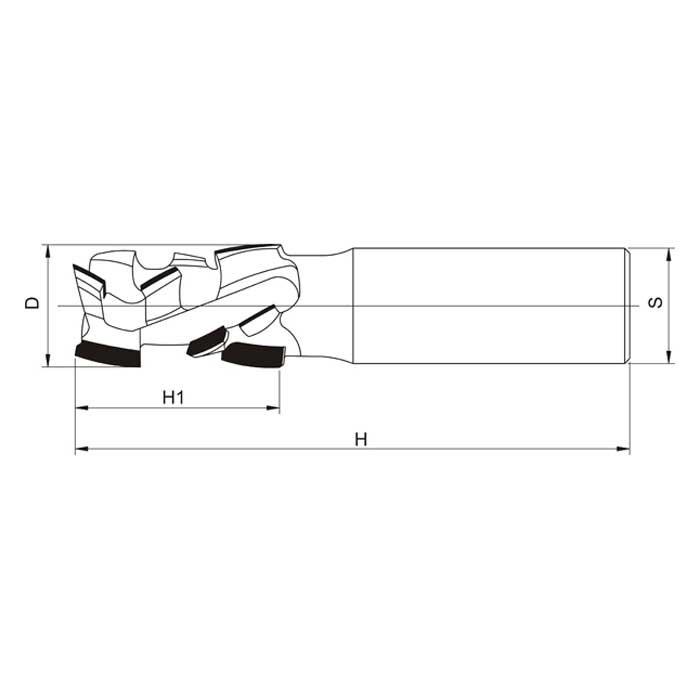

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | S [mm] | PCD | Z | H PCD [mm] | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 36 | 20 | 13 | 4+4 | 4,5 | szt | 5900855106498 | |||
| 25 | 25 | 20 | 11 | 4+4 | 4,5 | szt | 5900855107501 | |||
| 25 | 30 | 20 | 13 | 4+4 | 4,5 | szt | 5900855107518 | |||
| 25 | 36 | 20 | 13 | 4+4 | 4,5 | szt | 5900855107525 | |||
| 25 | 40 | 20 | 17 | 4+4 | 4,5 | szt | 5900855107532 |
Catalogue: - to order
Legend:
edge number = no of PCD lines + drilling tip PCD
Optimal feed rate depends on individual machine working parameters: type of cut material, rotary speed, processing type (hobbing or cutting off)
