Product card

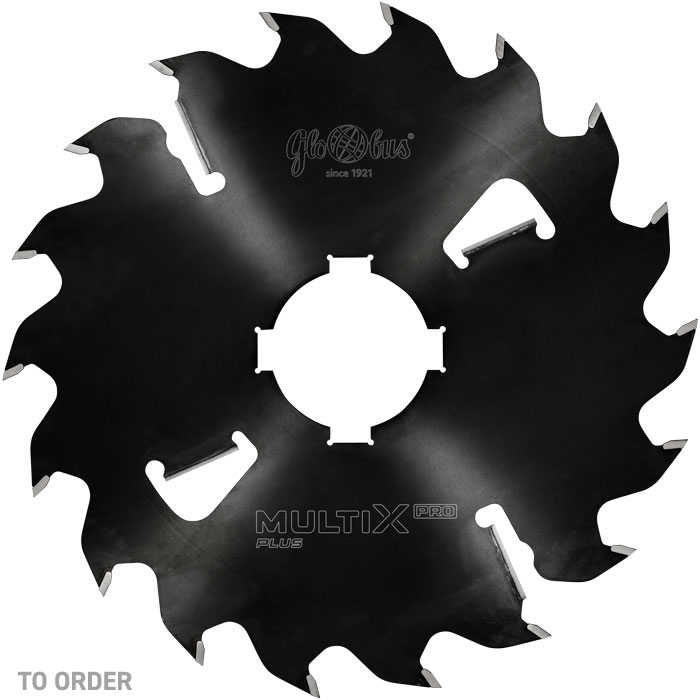

Saw blades MULTIX PRO Plus (4n) for raw wood ripping on multi rip saws with high speed
PS123
Application
dedicated to dry wood, soft and hard raw wood ripping on single or twin shaft multi rip saws saw blades with PLUS type teeth are reccomended to soft fresh wood rippingespecially for multi rip saws which have less requirements regarding condition of wood to be processed and chip removal4 driving keyways allow to properly put the blade on the shaft Features - benefits
professional MULTIX PRO Plus saw blades feature disc ensuring good rigidity in difficult operating conditions, typical for high-performance multi rip sawsspecial PLUS teeth allow high cutting parametersrakers in the saw disc allow fast removal of chipspecial notch shape allows larger feedratesnew sintered carbide with very high impact strength allows an efficient operation in summer and winternew heat treatment technology has significantly improved the saw rigidity during operation at high loads
Product manager
Piotr Szarek
e-mail: pszarek@wapienica.pl
e-mail: pszarek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details
| Select | Catalogue | Index | ∅ D [mm] | ∅ d [mm] | B [mm] | S [mm] | Z+k | Teeth geometry | Rake angle ° | il(axh) | TYPE | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0300 | 70 | 3,6 | 2,2 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200592 | |||
| 0300 | 80 | 3,6 | 2,2 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200608 | |||
| 0300 | 30 | 3,6 | 2,2 | 18+4 | GM | 20 | PLUS | szt | 5900855200615 | ||||
| 0315 | 70 | 3,6 | 2,2 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200622 | |||
| 0315 | 80 | 3,6 | 2,2 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200639 | |||
| 0315 | 80 | 3,6 | 2,2 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200646 | |||
| 0350 | 70 | 3,8 | 2,5 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200653 | |||
| 0350 | 80 | 3,8 | 2,5 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200660 | |||
| 0350 | 70 | 3,8 | 2,5 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200677 | |||
| - available | 0350 | 80 | 3,8 | 2,5 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200684 | ||
| 0350 | 30 | 3,8 | 2,5 | 18+4 | GM | 20 | PLUS | szt | 5900855200691 | ||||
| 0350 | 70 | 3,8 | 2,5 | 20+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200707 | |||
| 0350 | 80 | 3,8 | 2,5 | 20+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200714 | |||
| 0400 | 60 | 4,4 | 3,0 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200721 | |||
| 0400 | 70 | 4,4 | 3,0 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200738 | |||
| - available | 0400 | 60 | 4,4 | 3,0 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200745 | ||
| 0400 | 70 | 4,4 | 3,0 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200752 | |||
| 0420 | 80 | 4,4 | 3,2 | 14+4 | 2GS | 20 | 4(20x6) | PLUS | szt | 5900855200769 | |||
| - available | 0425 | 70 | 4,4 | 3,2 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200776 | ||
| 0450 | 60 | 4,6 | 3,2 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200783 | |||
| 0450 | 70 | 4,6 | 3,2 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200790 | |||
| - available | 0450 | 70 | 4,6 | 3,2 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200813 | ||
| 0500 | 70 | 5,0 | 3,4 | 14+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200820 | |||
| 0500 | 60 | 5,0 | 3,4 | 18+4 | GM | 20 | 4(20x6) | PLUS | szt | 5900855200837 |
Catalogue: - to order
Catalogue: - catalogue products
Legend:
- to order - MOQ: 6 pcs
- a - driving keyway width
- h - driving keyway height
Above mentioned indexes can be ordered in DIABLO version - blades with fluoropolymer coat, additional charge for MULTIX PRO Plus (PS123) series.
