ideal for joining light/soft metals, e.g. aluminium (not steel!!!)

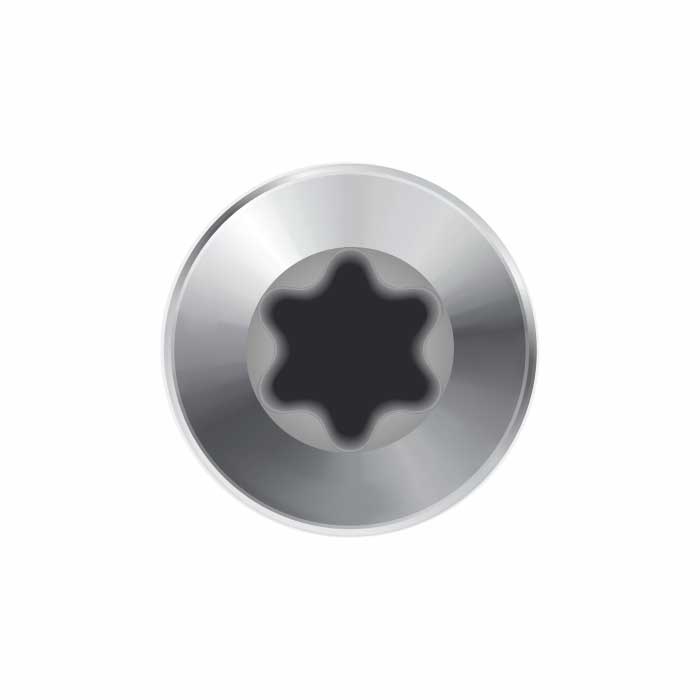

a screw with a TORX socket, where the force is transmitted across the large surface area of the shank?s sides
also used for joining timber (particularly hardwood) and various wood-based materials
used in house construction (roofs, balustrades, aluminium structures, etc.) and in watercraft (ships, yachts, etc.)
suitable for assembling timber structures, fa?ade cladding, decking, fences, etc.
a screw used in many industries

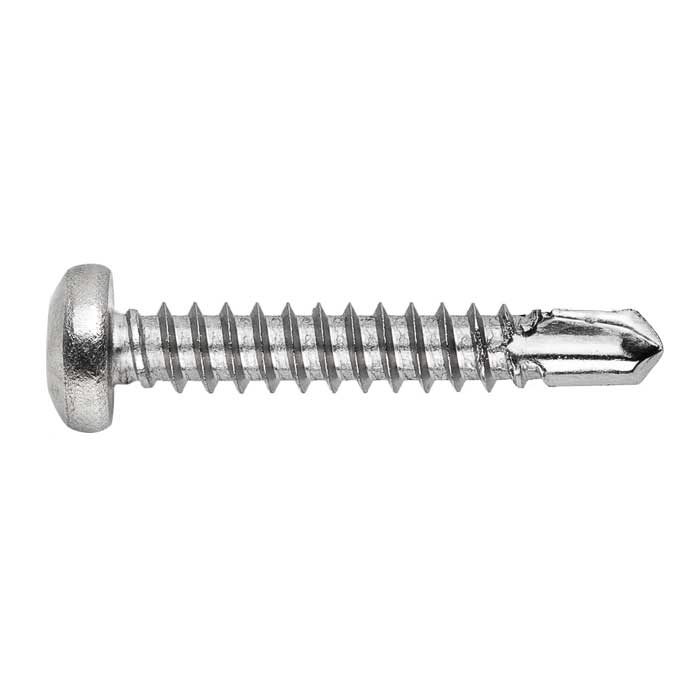

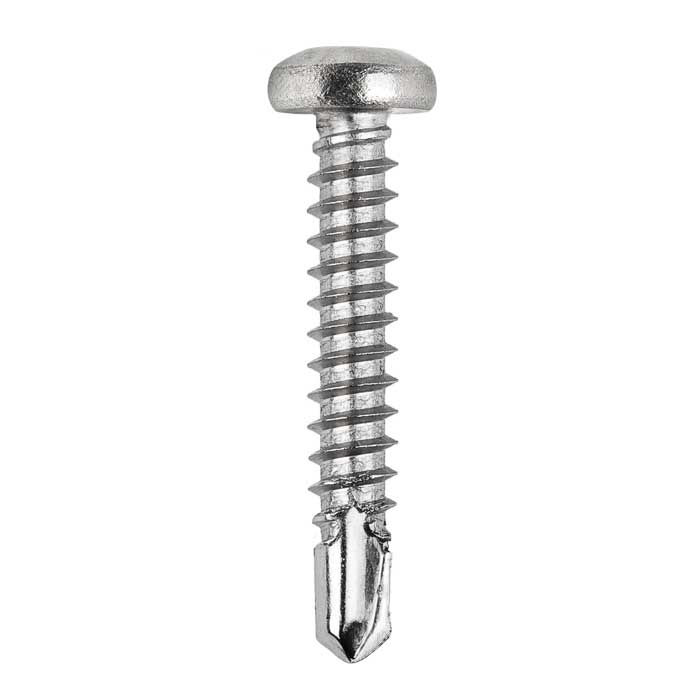

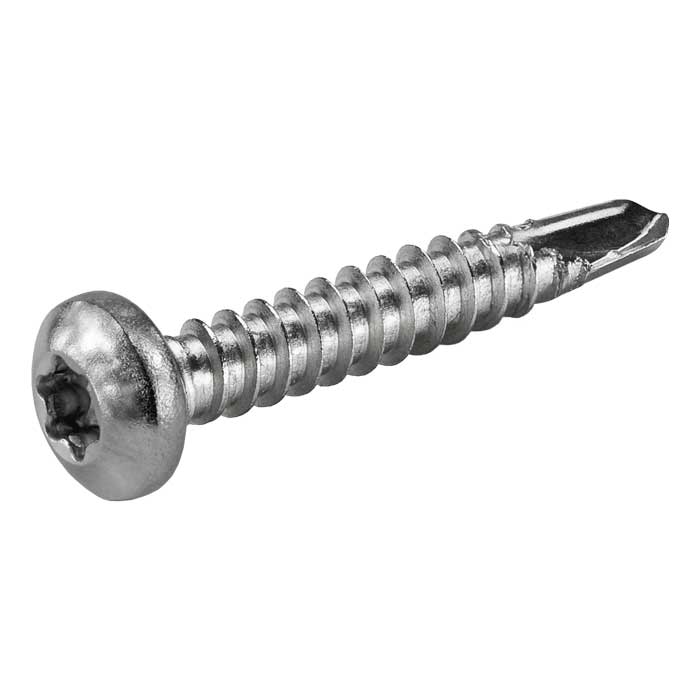

GLOTECH self-tapping screw with a flat-lens TORX head, manufactured from A2 (stainless steel) or A4 (acid-resistant steel)
The screw is characterised by high strength and corrosion resistance

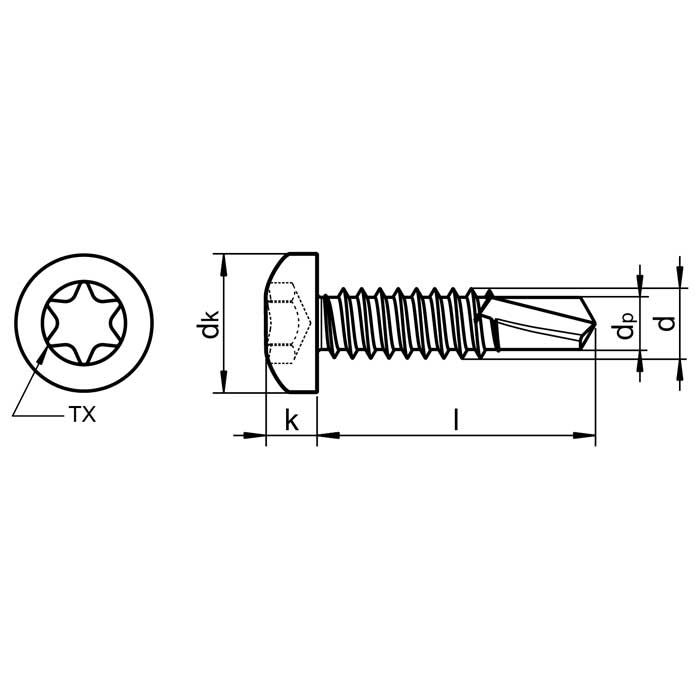

Self-tapping screws with other technical specifications can be manufactured to order | Select | Catalogue | Index | ∅ d [mm] | l [mm] | Guide | Material grade | Other standard | Quantity per pack | U.m. |
|---|---|---|---|---|---|---|---|---|---|
| 3,5 | 9,5 | TX | A2 - stal nierdzewna | DIN 7504 | 1000 | opak. | |||
| 4,2 | 19 | TX | A2 - stal nierdzewna | DIN 7504 | 1000 | opak. | |||
| 4,8 | 16 | TX | A2 - stal nierdzewna | DIN 7504 | 500 | opak. | |||
| 4,8 | 19 | TX | A2 - stal nierdzewna | DIN 7504 | 500 | opak. | |||
| 4,8 | 22 | TX | A2 - stal nierdzewna | DIN 7504 | 500 | opak. | |||
| 5,5 | 80 | TX | A2 - stal nierdzewna | DIN 7504 | 200 | opak. | |||
| 5,5 | 90 | TX | A2 - stal nierdzewna | DIN 7504 | 200 | opak. |
