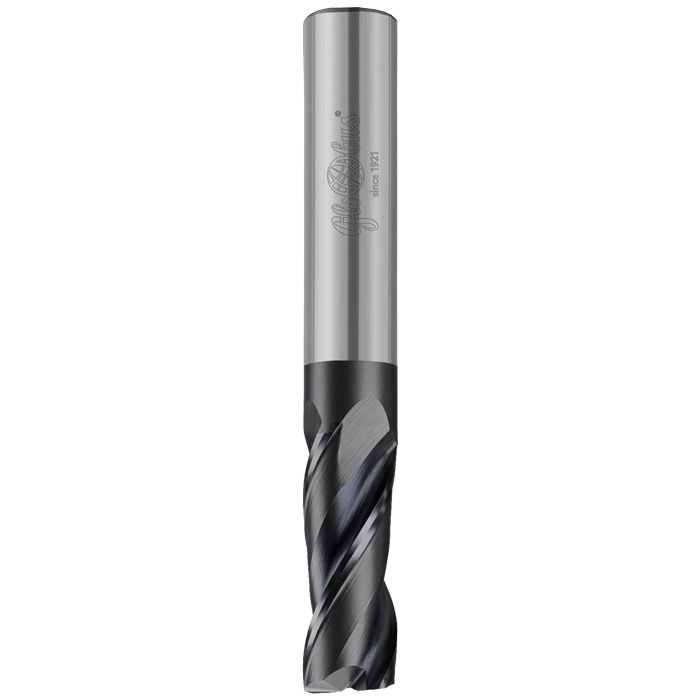

Coated solid carbide finishing end mills, Z2 positive - for machining steel and metals
LV820P
New
Application

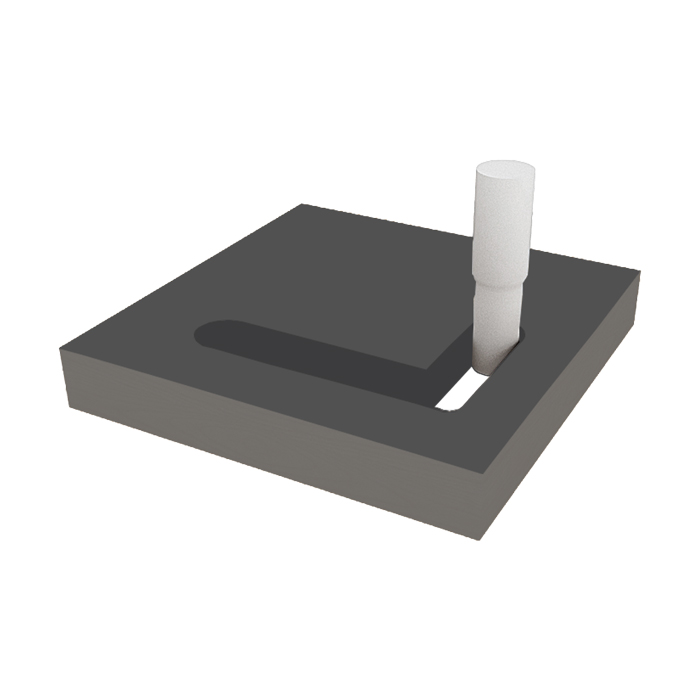

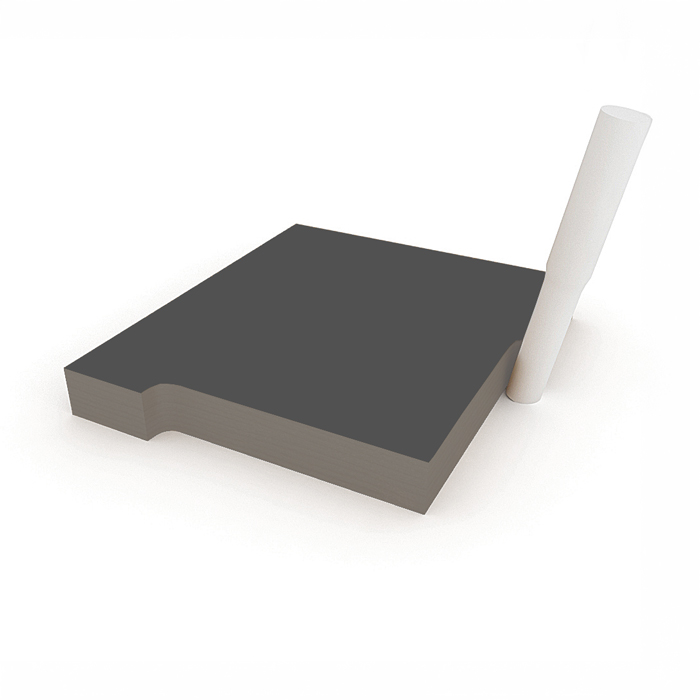

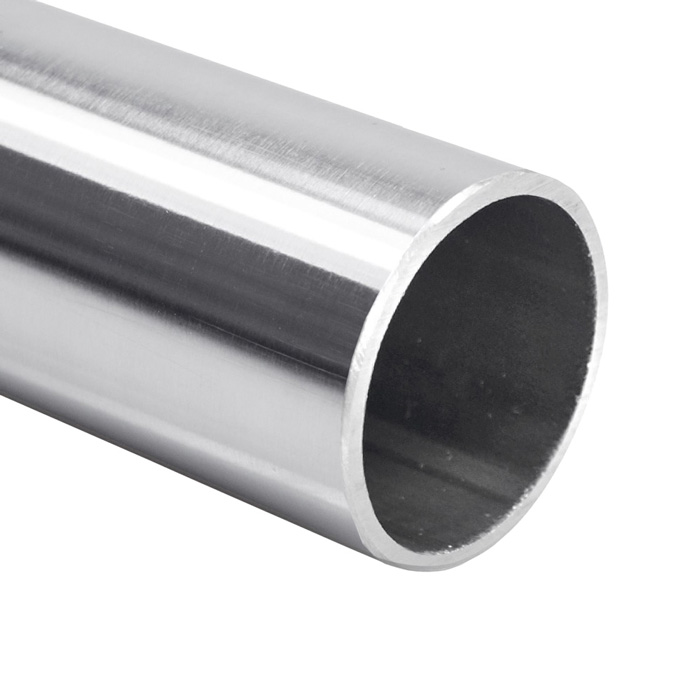

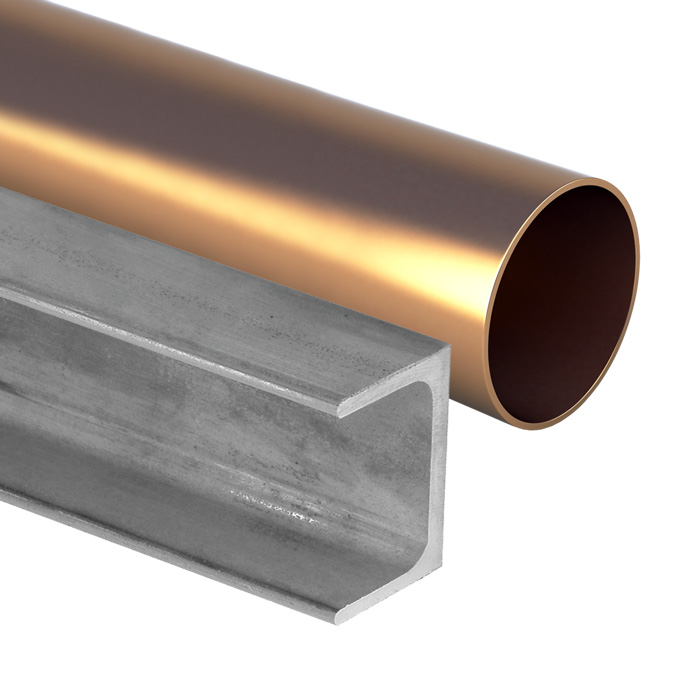

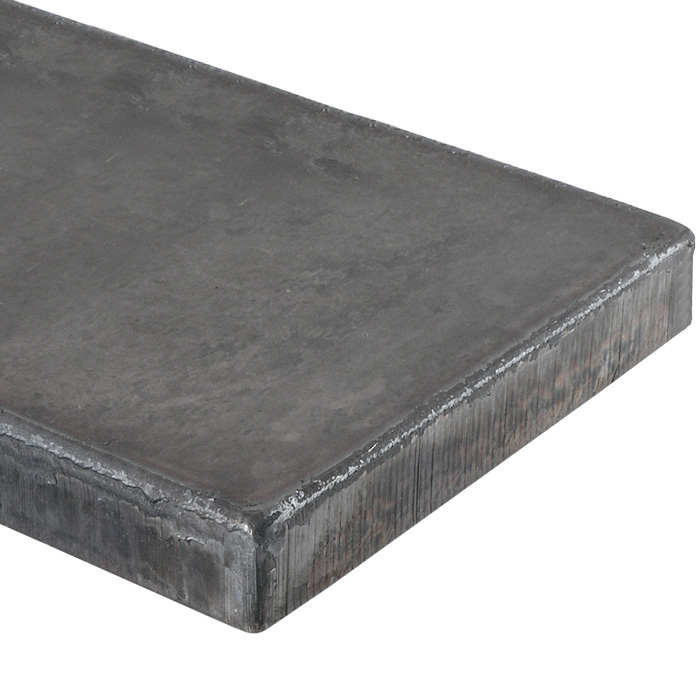

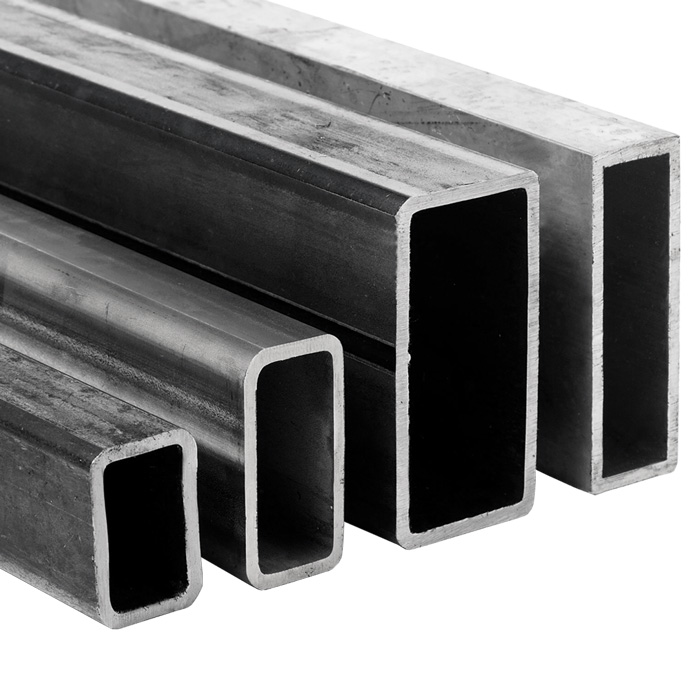

designed for milling materials with a hardness of up to 45 HRC on the Rockwell scale - workpiece materials: steel, cast iron, stainless steeldouble-edged shank milling cutter = Z2 (2 flutes)the special cutting edge geometry and helix arrangement allow for easy chip evacuation and a smooth surface finish on the workpiecethe hardfacing coating used (AlTiN - aluminium and titanium nitride - 3,400 HV) significantly increases tool life during metal cutting Features - benefits

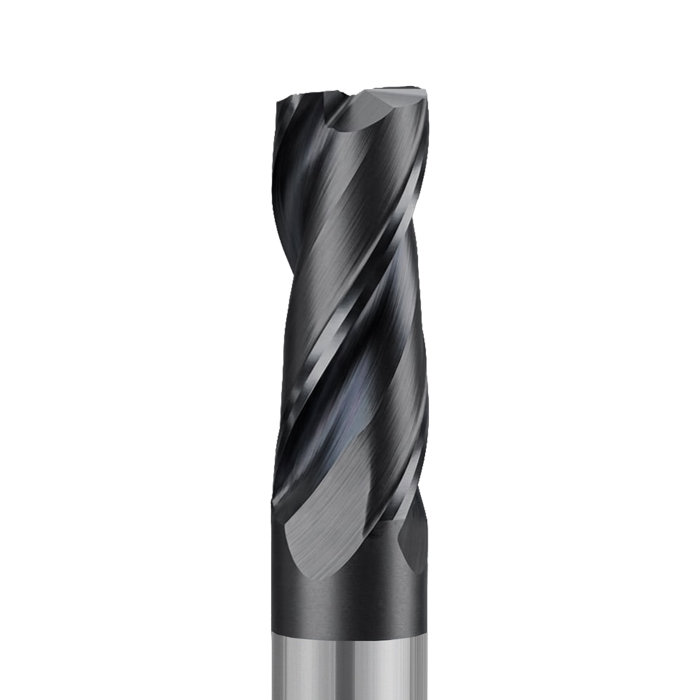

solid carbide cutters with PVD coating - body and cutting edge made of cemented carbideperfectly matched chip groove shape and rake angle, which facilitate chip evacuationcutters available in diameters from 3 mm to 20 mm, with varying overall lengths and cutting edge lengthsused on high-performance CNC machining centres with mechanical feedcutters can be manufactured in roughing and/or ball-end versions, and for machining steel with a hardness of 55 HRC and 60 HRC
Product manager
Rafał Zontek
email: rzontek@wapienica.pl
email: rzontek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details

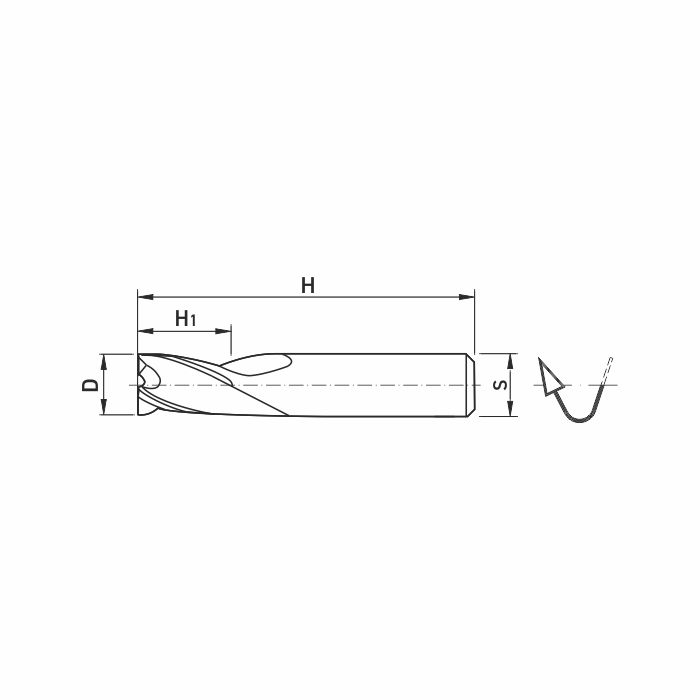

| Select | Catalogue | Index | ∅ D [mm] | H1 [mm] | H [mm] | ∅ S [mm] | Z | Rotation direction/Helix type | λ ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06 | 12 | 054 | 06 | 2 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855176194 | |||
| 08 | 15 | 058 | 08 | 2 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855336499 | |||
| 10 | 20 | 065 | 10 | 2 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855276863 | |||
| 12 | 25 | 073 | 12 | 2 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855290180 | |||
| 16 | 30 | 082 | 16 | 2 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855292733 | |||
| 20 | 35 | 092 | 20 | 2 | PP-pozytyw/prawe z powłoką | 35 stopni | szt | 5900855311588 |
Catalogue: - to order
