Product card

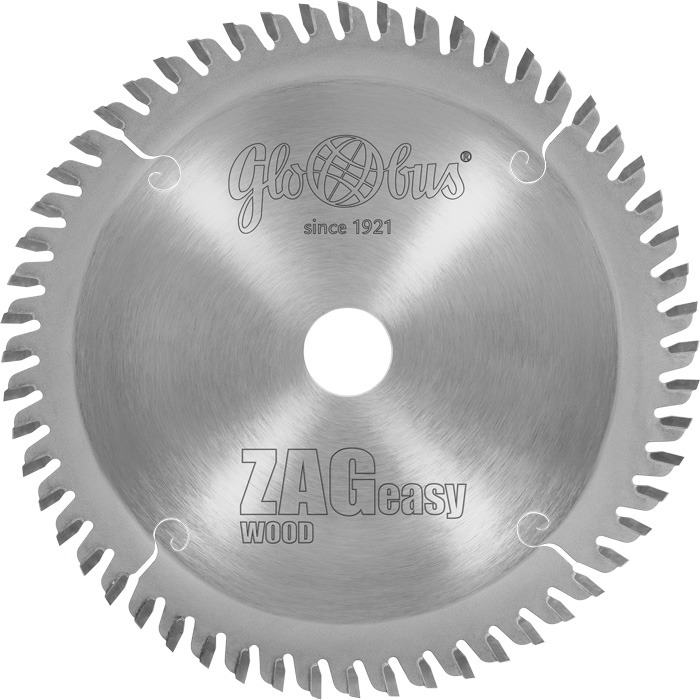

HM saw blades ZAGeasy WOOD series saw blades for plunge saws
PS663
New
Application

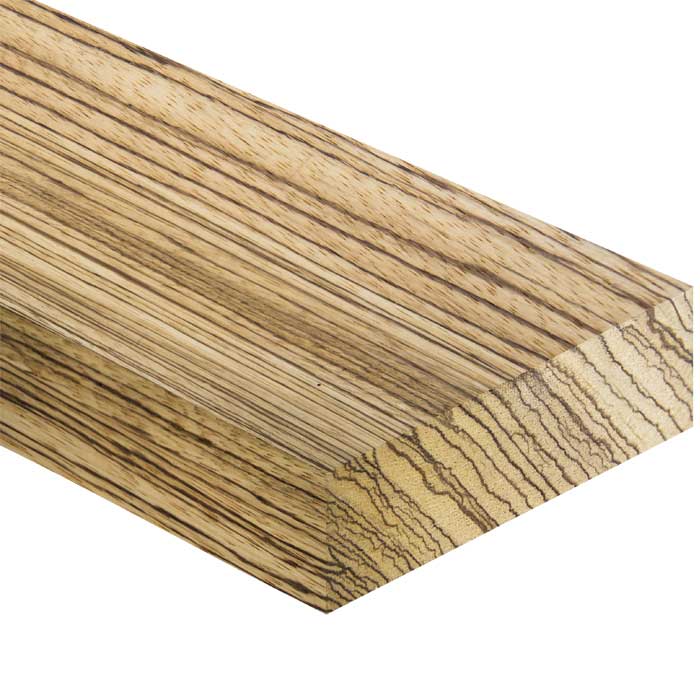

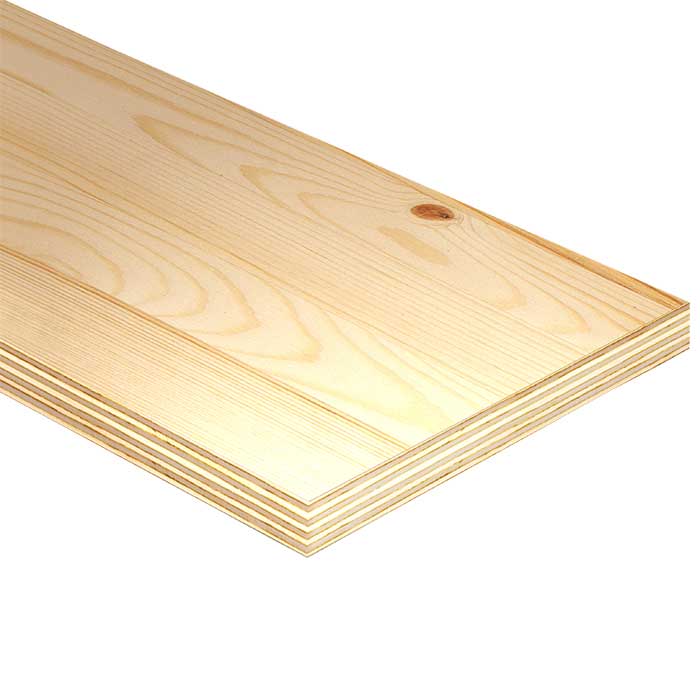

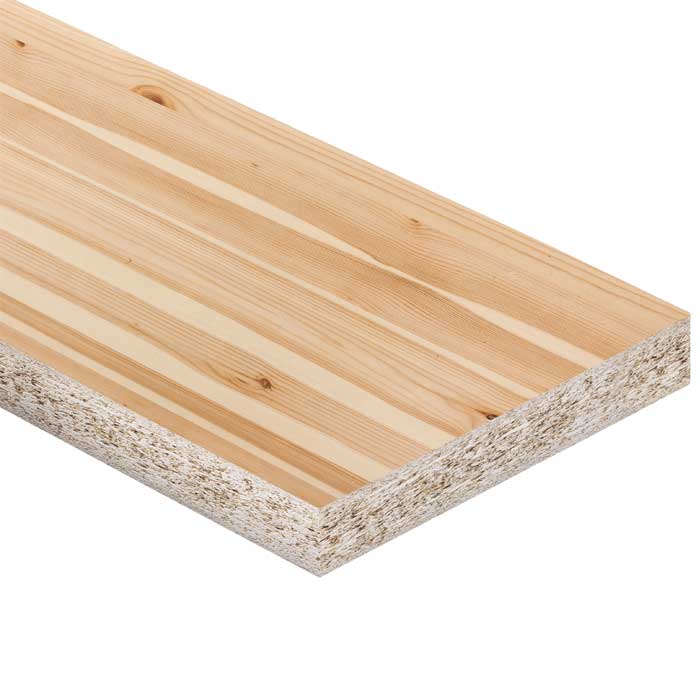

for precise cross-cutting, rip-cutting and scoring of timber (including exotic timber), wood-based materials with natural veneers, plywood, LVL, blockboard, etc.most commonly used when cutting veneered furniture boards, floorboards, trimming doors to length, making cut-outs and milling precise grooves in beamswhen selecting a specific saw for a planned cutting operation, attention should be paid not only to the type of material being worked on but also to its dimensionsthe maximum cutting height or depth depends on the model of plunge saw from the respective manufacturerto achieve the best possible surface finish and ensure a safe cutting process, it is essential to apply the correct clamping force - the workpiece should be securely held in a clamping device, e.g. a clamp or on a workbench Features - benefits

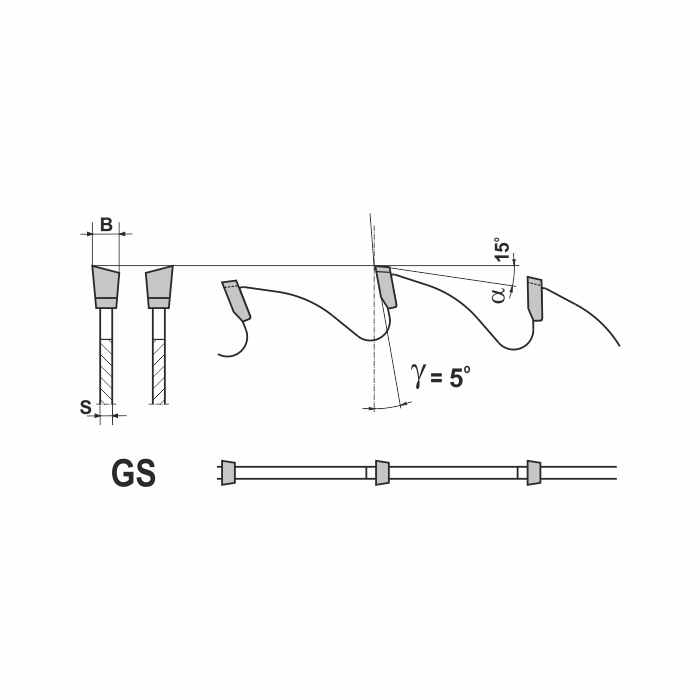

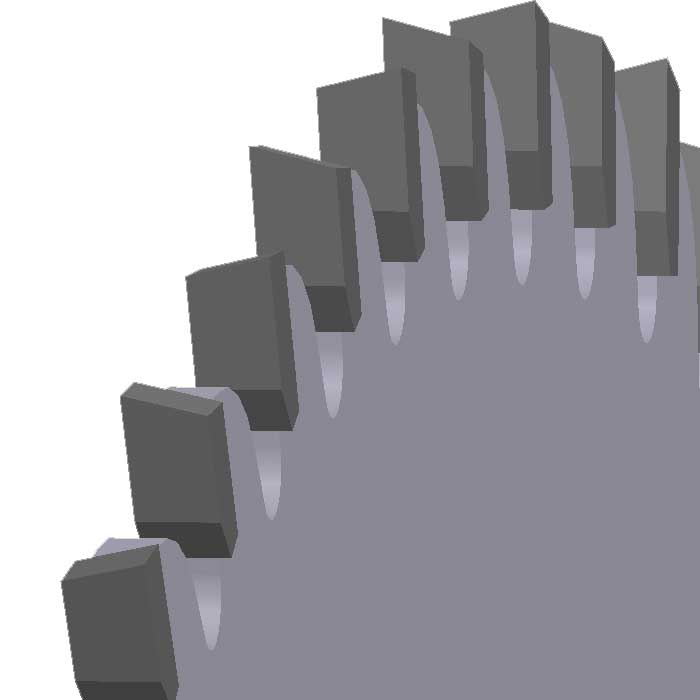

cemented carbide with increased hardness contributes to a longer blade service life and a higher number of cutssaws with HM-GS insert geometry (ATB - alternating rake-angle teeth)due to the high hardness of the carbides, they are sharpened on CNC-controlled sharpening machines whilst maintaining specific grinding wheel operating parameterscan also be used in stationary machines and popular hand-held saws
Product manager
Piotr Szarek
e-mail: pszarek@wapienica.pl
e-mail: pszarek@wapienica.pl
Delivery terms
Delivery Costs and Methods
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
The delivery form and cost are determined individually with customer.
e-mail: eksport@wapienica.pl
Prices do not include the delivery cost (prices quoted EX WORKS).
Details
| Select | Catalogue | Index | ∅ D [mm] | ∅ d [mm] | B [mm] | S [mm] | Z | Teeth geometry | Rake angle ° | U.m. | EAN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0160 | 20 | 2,0 | 1,4 | 48 | GS | 5 | szt | 5900855350860 | |||
| 0165 | 20 | 2,0 | 1,4 | 48 | GS | 5 | szt | 5900855350877 |
Catalogue: - catalogue products
INFO:
Producers of plunge saws may modify their products within the validity of the offer for Globus tools. That is the reason why we request you to check the type of plunge saw (especially external and internal diameter -bore diameter) before purchase of particular saw blade.
